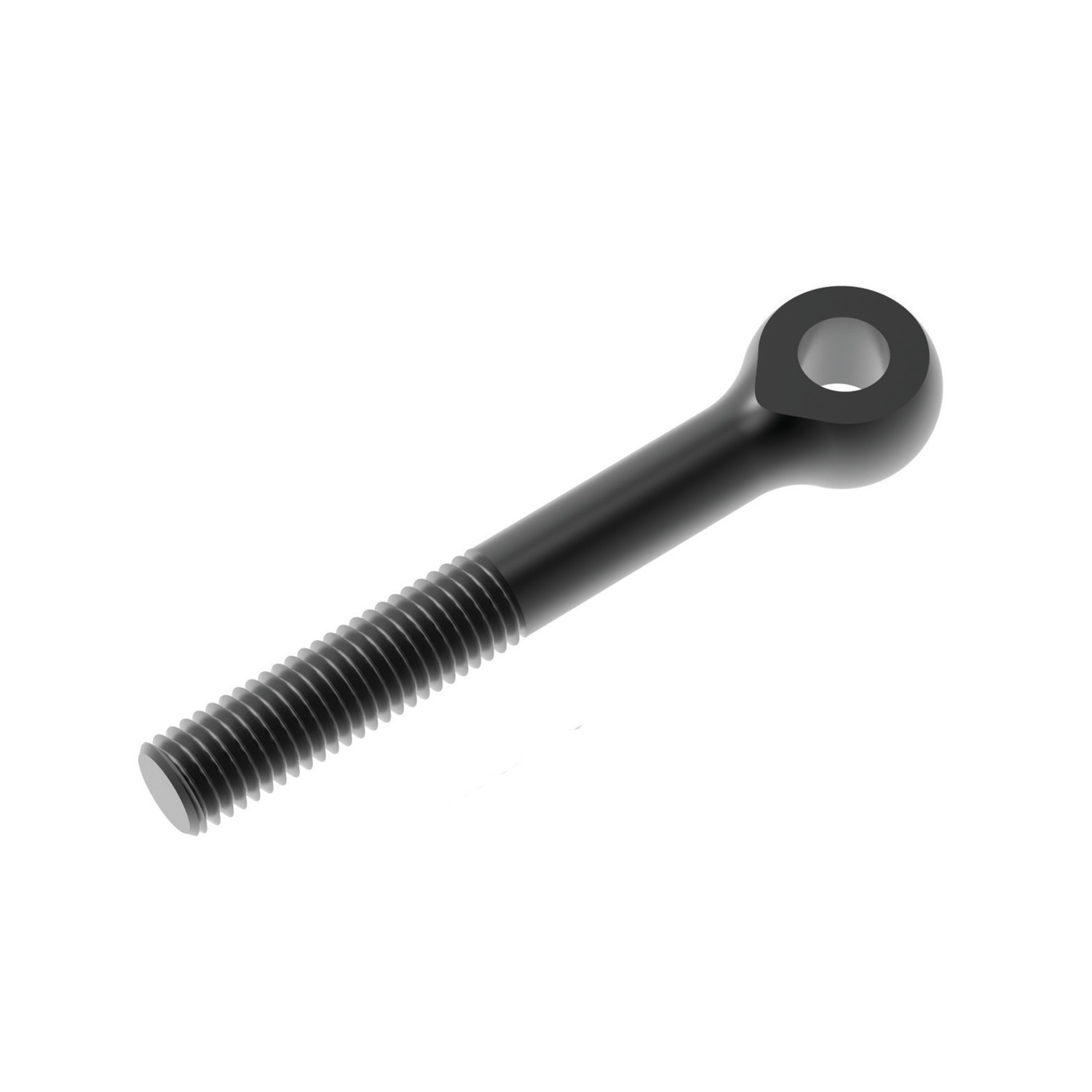

18822 Swing Bolts - Standard Tolerance

Name: 18822.W0362
Brand: WC
SKU: 18822.W0362
Price: 44.02 EUR
Availability: OutOfStock

form B, material: Heat treated steel

Article properties

Order No.

18822.W0362

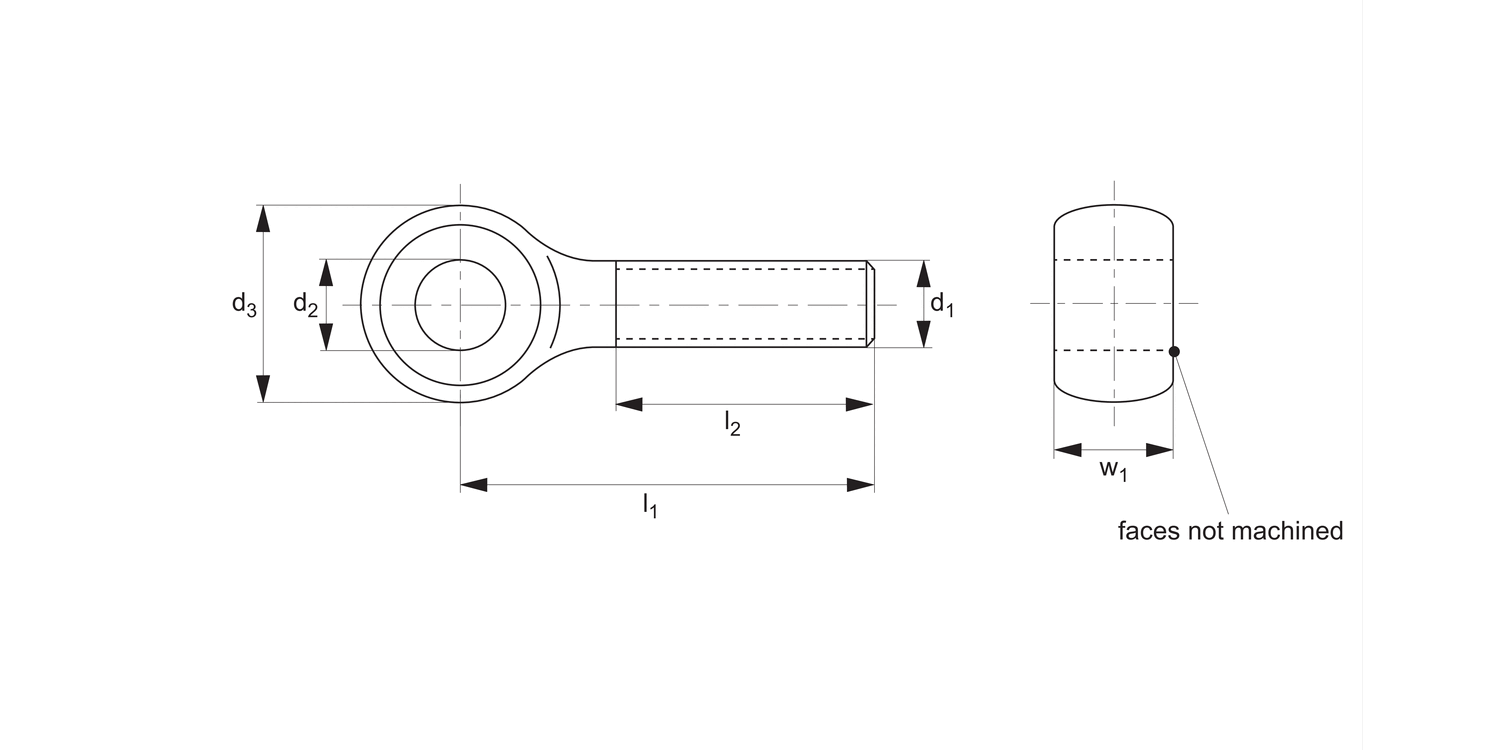

d₁

M24

l₁

200

d₂ tol. h9

d₃

l₂

w₁

Weight g

787.0

See full product selection

£ 44.02 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 44.02	0%
10-14	£ 39.62	10%
15-24	£ 37.42	15%
25-49	£ 35.22	20%
50+	£ 30.81	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, heat-treated and tempered, quality 8.8, black.

Technical Notes

DIN 444.

Important Notes

These parts have a bore d2standard tolerance H9 (faces are not machined).
For similar parts to DIN 444 with high tolerance see our part 18820.

Product Datasheets

18822 Swing Bolts - Standard ToleranceJune 24, 2025, 3:50 PM / 628.94 kB

Swing BoltsJune 24, 2025, 3:33 PM / 264.96 kB

Swing BoltsJune 24, 2025, 3:31 PM / 264.96 kB

Fixing Elements, Inserts & GaugesJune 24, 2025, 3:32 PM / 9.54 MB

Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

18822 AcisApril 17, 2024, 9:06 AM / 1.19 MB

18822 IGESApril 17, 2024, 9:06 AM / 2.54 MB

18822 ParasolidApril 17, 2024, 9:06 AM / 368.67 kB

18822 ProEApril 17, 2024, 9:06 AM / 5.66 MB

18822 SolidWorksApril 17, 2024, 9:06 AM / 11.32 MB

18822 StepApril 17, 2024, 9:06 AM / 1.49 MB
