20095 Angled Connectors - For Coolant Tube
material: Brass
Order No.
20095.W1120
Type
1/8" NPT/BSPT
Tube size
mm
3/16"
d1
1/8"
d2
3/8" - 24 UN
l1
21.3
l2
17.5
A/F
7/16"
£ 13.31 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 13.31 | 0% |
| 5-9 | £ 12.64 | 5% |
| 10-19 | £ 11.98 | 10% |
| 20-49 | £ 11.31 | 15% |
| 50+ | £ 9.98 | 25% |
Technical & Application
Material
Brass connector (supplied with olive).
Technical Notes
Max. temperature: 150ºC.
Max. pressure: 33 bar.
For use with adjustable direction spray nozzle tube 20094.
Product Datasheets

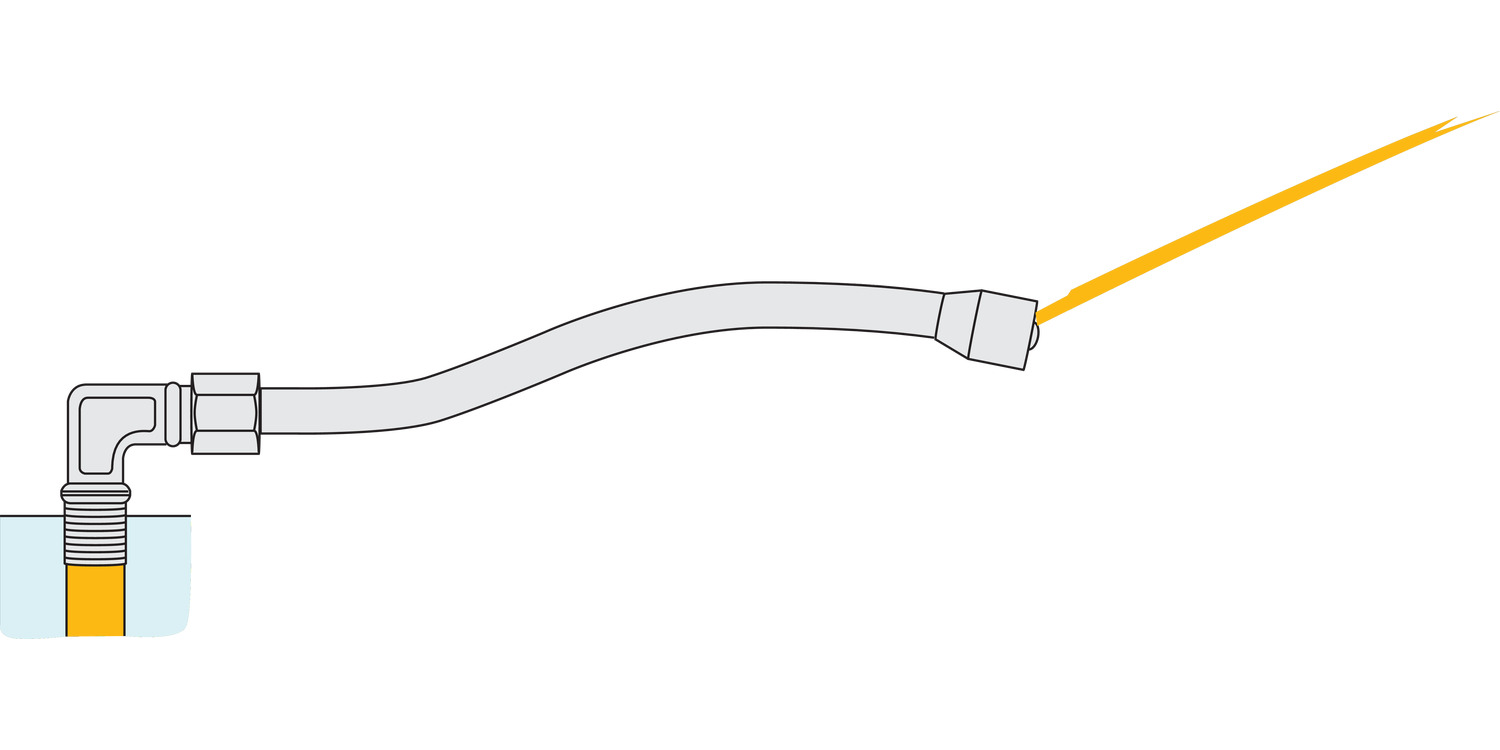

Application images
