Extension Tube
coolant nozzles

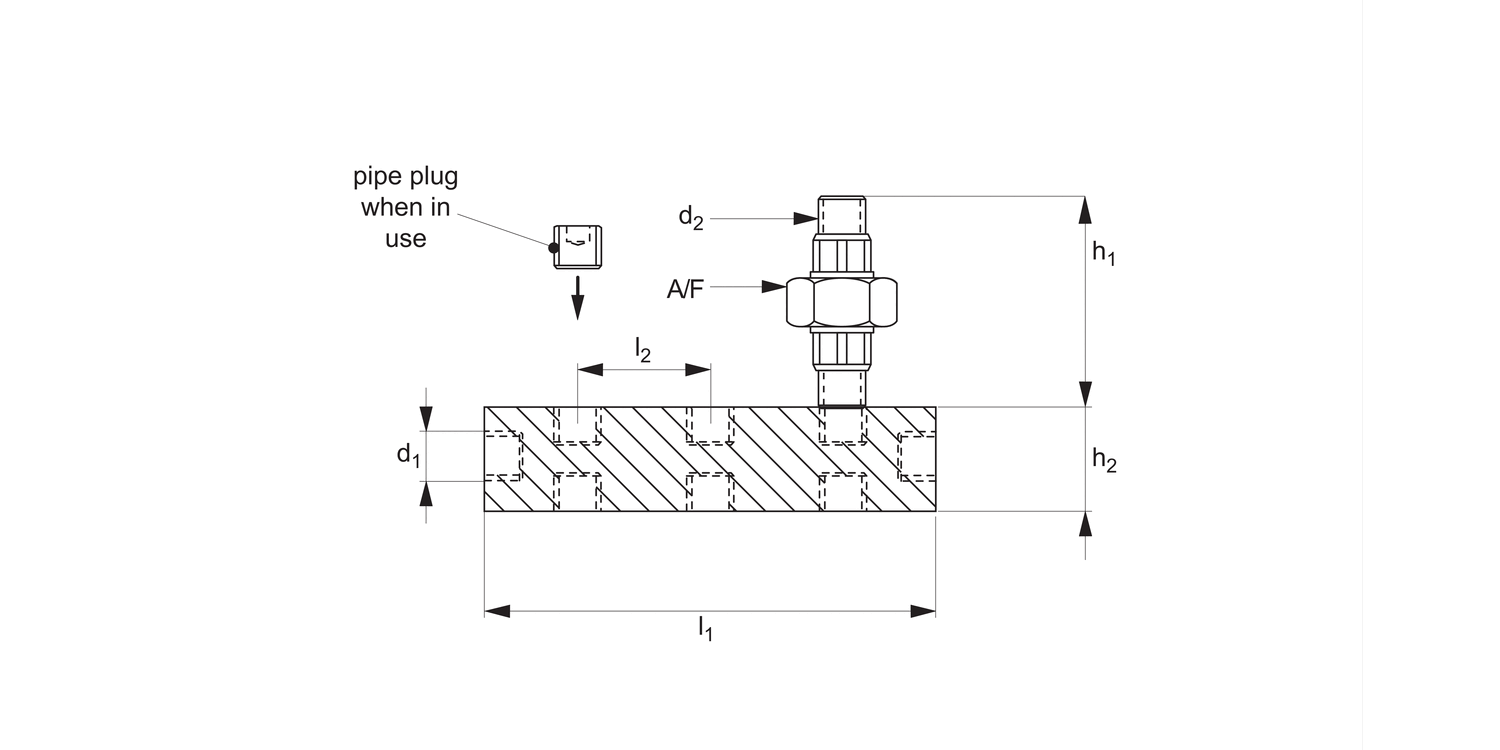

20114 Coolant Nozzles - Manifold
material: Aluminium
Order No.
20114.W2250
d1
1/4" NPT
d2
1/4" NPT/BSPT
h1
76.2
h2
25.4
l1
88.9
l2
31.8
A/F
1-3/16"
£ 208.63 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 208.63 | 0% |
| 5-9 | £ 198.20 | 5% |
| 10-19 | £ 187.77 | 10% |
| 20-49 | £ 177.34 | 15% |
| 50+ | £ 156.47 | 25% |
Technical & Application
Material
Manifold: anodized aluminium.
Thread connectors: brass.
Pipe plugs: plated steel.
Thread union: brass.
Technical Notes
Max. temperature: 70°C.
Max. pressure: 33 bar.
