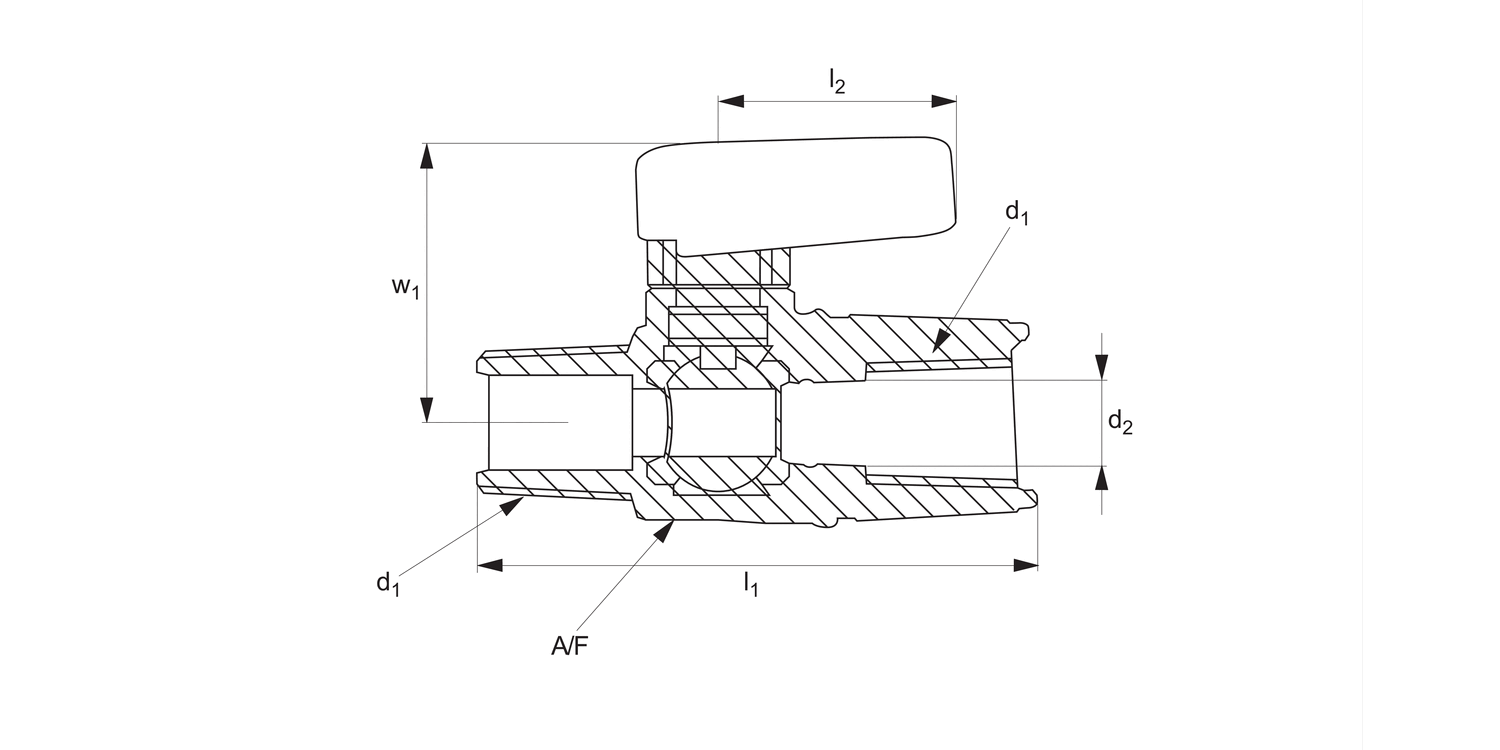

20118 Ball Valves - for Coolant Systems
max. 16 bar, material: Brass
Order No.
20118.W1120
d1
1/8" BSPT
d2
5.3
l1
36.0
l2
18.8
w1
21.8
A/F
14
Handle colour
Red
£ 29.00 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 29.00 | 0% |
| 5-9 | £ 27.55 | 5% |
| 10-19 | £ 26.10 | 10% |
| 20-49 | £ 24.65 | 15% |
| 50+ | £ 21.75 | 25% |
Technical & Application
Material
Brass, chrome plated.
Teflon seals.
Technical Notes
Max. temperature: 80°C.
Max. pressure: 16 bar.
