24160 T-Nuts - Semi Finished

Name: 24160.W0240
Brand: WC
SKU: 24160.W0240
Price: 15.13 EUR
Availability: InStock

strength class 10, material: Carbon steel

Article properties

Order No.

24160.W0240

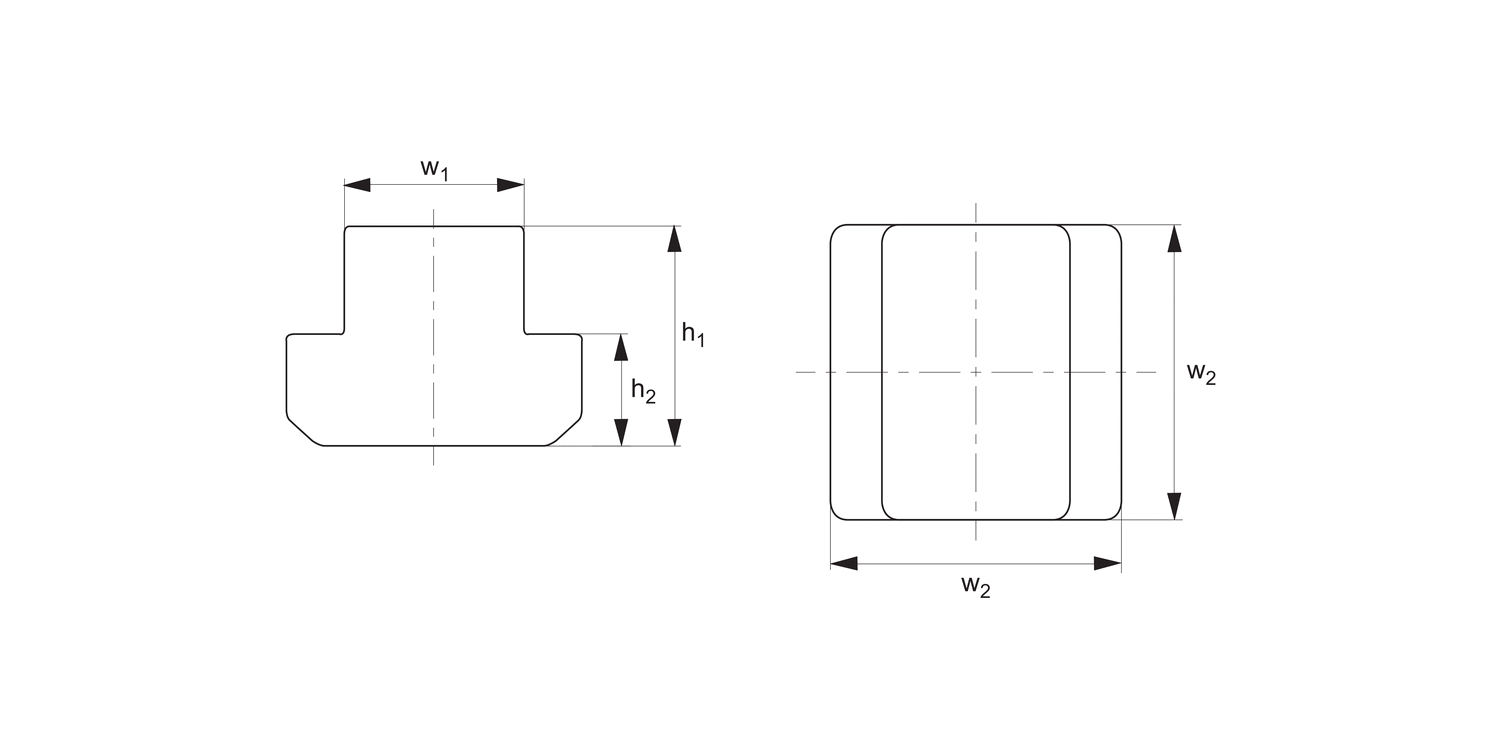

T-slot size

w₁

23.7

w₂

h₁

h₂

Weight g

300

See full product selection

£ 15.13 per unit (click for quantity discounts)

Ready to despatch 1
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 15.13	0%
10-19	£ 13.62	10%
20-49	£ 12.86	15%
50-99	£ 12.10	20%
100+	£ 11.35	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Carbon steel, 0,35 - 0,45%C.

Technical Notes

DIN 508.
After machining thread, heat treat to tensile strength class 10. Heat to 880°C for 45 minutes, quench in oil at 75°C and temper at 550°C for two hours.
Please note T-nuts are square, length and width are both equal to dimension w2.

Tips

Useful for machining unusual thread sizes or imperial threads.

Product Datasheets

24160 T-Nuts - Semi FinishedJanuary 3, 2025, 2:59 PM / 217.57 kB

T-Nuts - SteelJanuary 3, 2025, 3:46 PM / 475.00 kB

T-Nuts & T-BoltsJanuary 3, 2025, 3:46 PM / 1.17 MB

Fixing Elements, Inserts & GaugesJanuary 3, 2025, 3:46 PM / 9.53 MB

Work HoldingJanuary 3, 2025, 3:46 PM / 61.72 MB

CAD files

24160 AcisApril 17, 2024, 9:11 AM / 49.64 kB

24160 IGESApril 17, 2024, 9:11 AM / 94.49 kB

24160 ParasolidApril 17, 2024, 9:11 AM / 73.76 kB

24160 ProEApril 17, 2024, 9:11 AM / 129.04 kB

24160 SolidWorksApril 17, 2024, 9:11 AM / 1.97 MB

24160 StepApril 17, 2024, 9:11 AM / 84.74 kB
