Sphl Seat Washers
type c - s/s
25800 Dished Washers
stainless steel 303, material: Stainless steel
Order No.
25800.W0116
For metric thread d1
M16
For thread d1
inch
5/8"

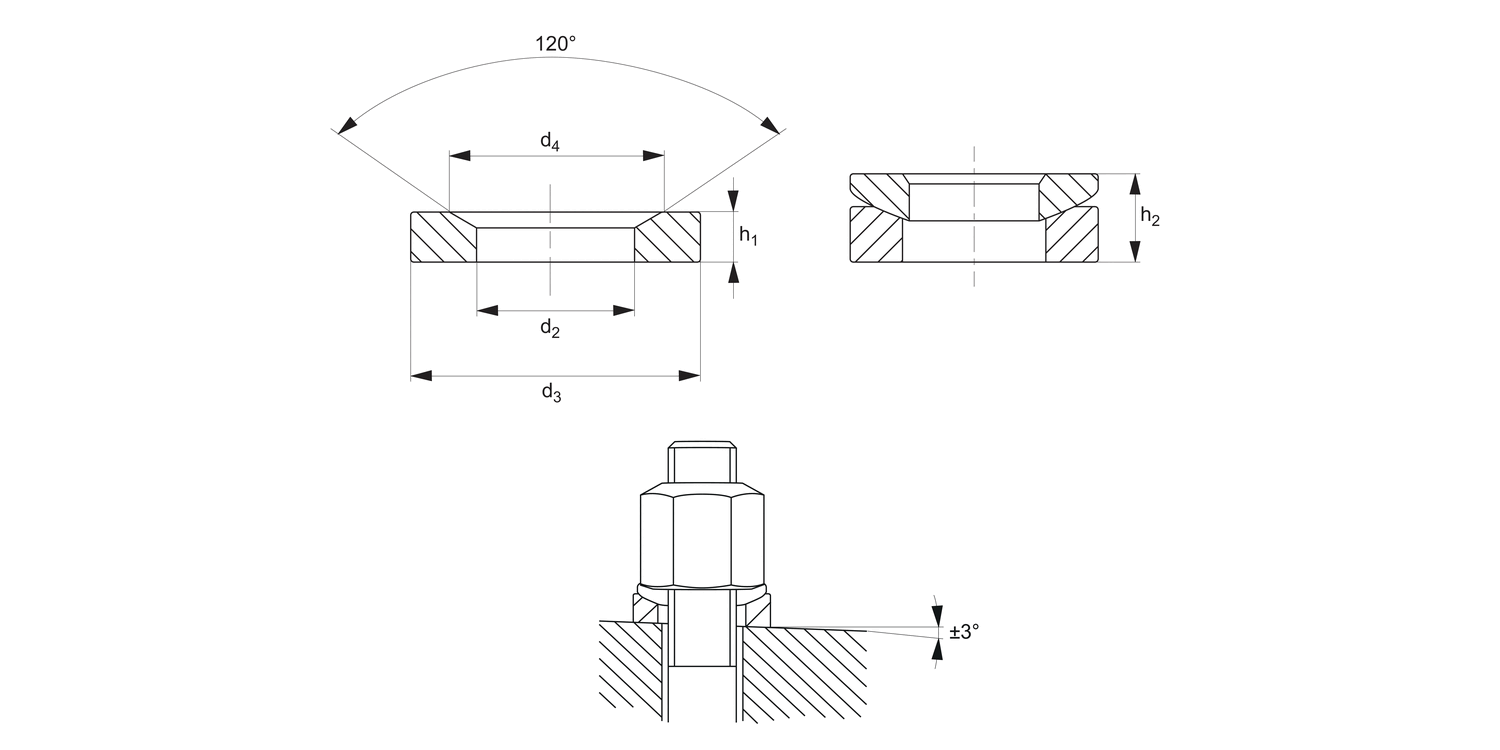

d2
tol. H13
19.0
d3
44
h1
7
d4
26.0
Load capacity for static load
max.
kN
45
Torque
max.
Nm
135
With 25200 h2
10.1
Weight
g
66
£ 19.30 per unit (click for quantity discounts)
Ready to despatch 3
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 19.30 | 0% |
| 10-29 | £ 17.37 | 10% |
| 30-74 | £ 16.41 | 15% |
| 75-199 | £ 14.48 | 25% |
| 200+ | £ 12.55 | 35% |
Technical & Application
Material
Stainless steel 1.4305 (AISI 303).
Technical Notes
Similar to DIN 6319G.
Their large diameter makes them suitable to bridge wide slots.
*Torque values of screwed connector A2-70 are approximate. Actual preloads should be considered, coefficient of friction µ total 0,12.
Product Datasheets
CAD files

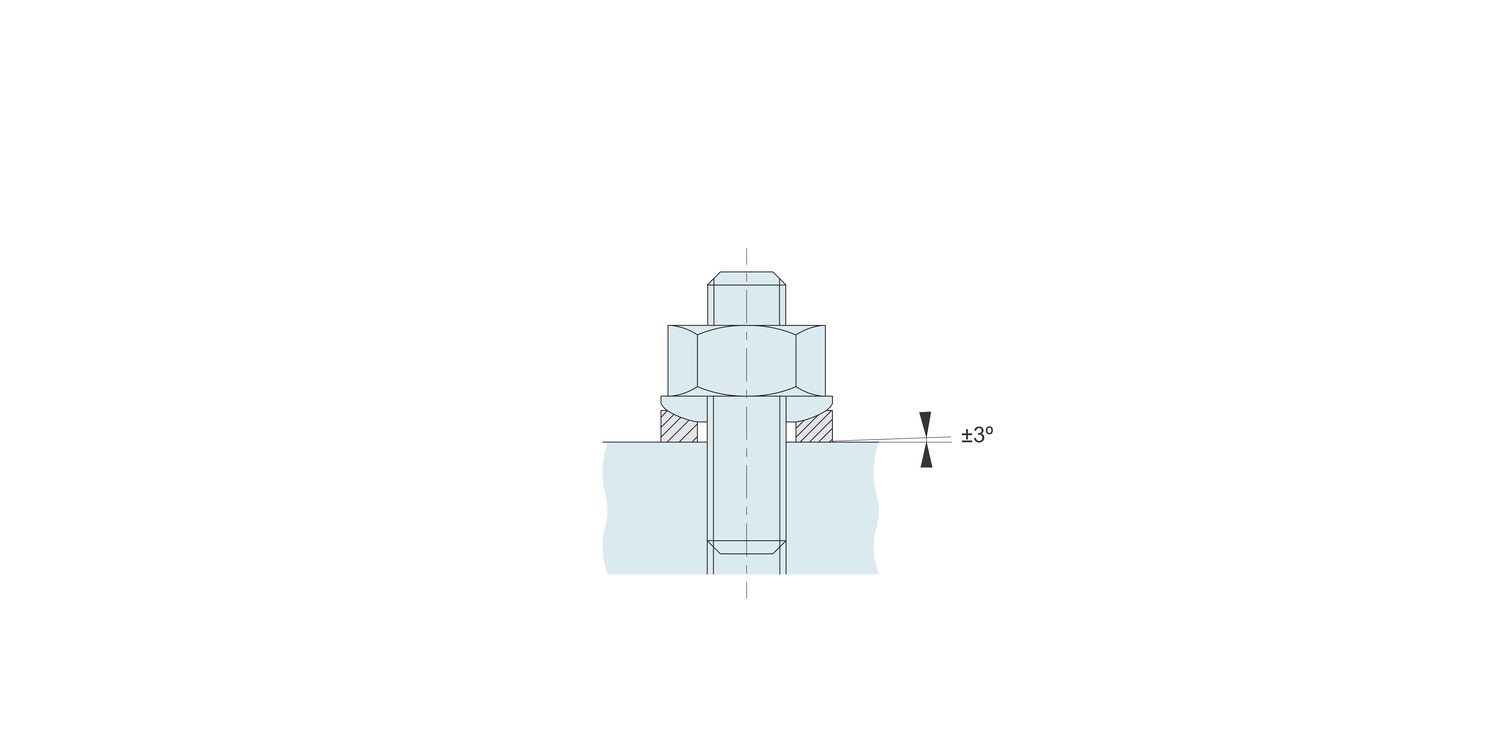

Application images
