Index Plunger
extended pin, flange mount

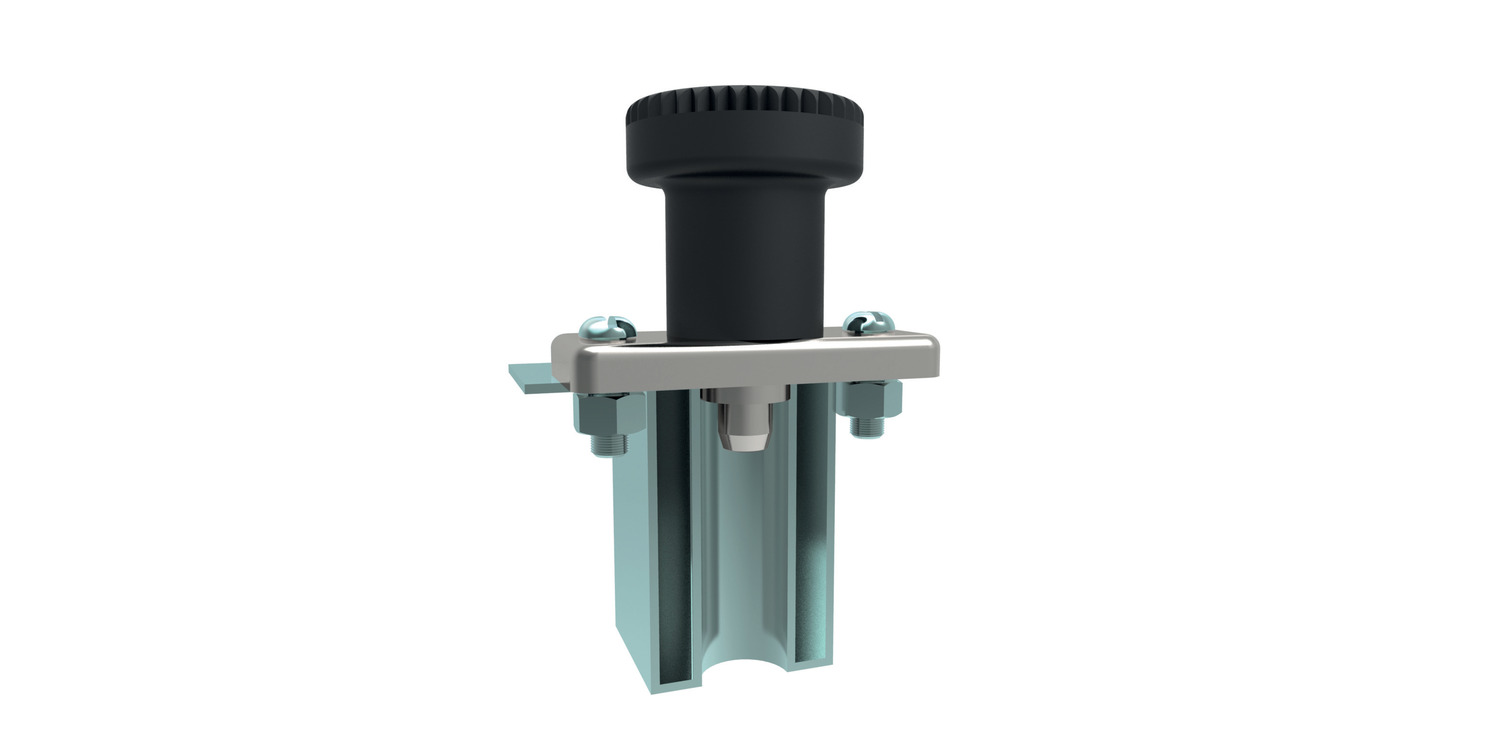

32760 Index Plunger - Pull Grip
flange mounting, material: Steel or Stainless Steel
Order No.
32760.W0928
Type
Non Locking
Material
Steel

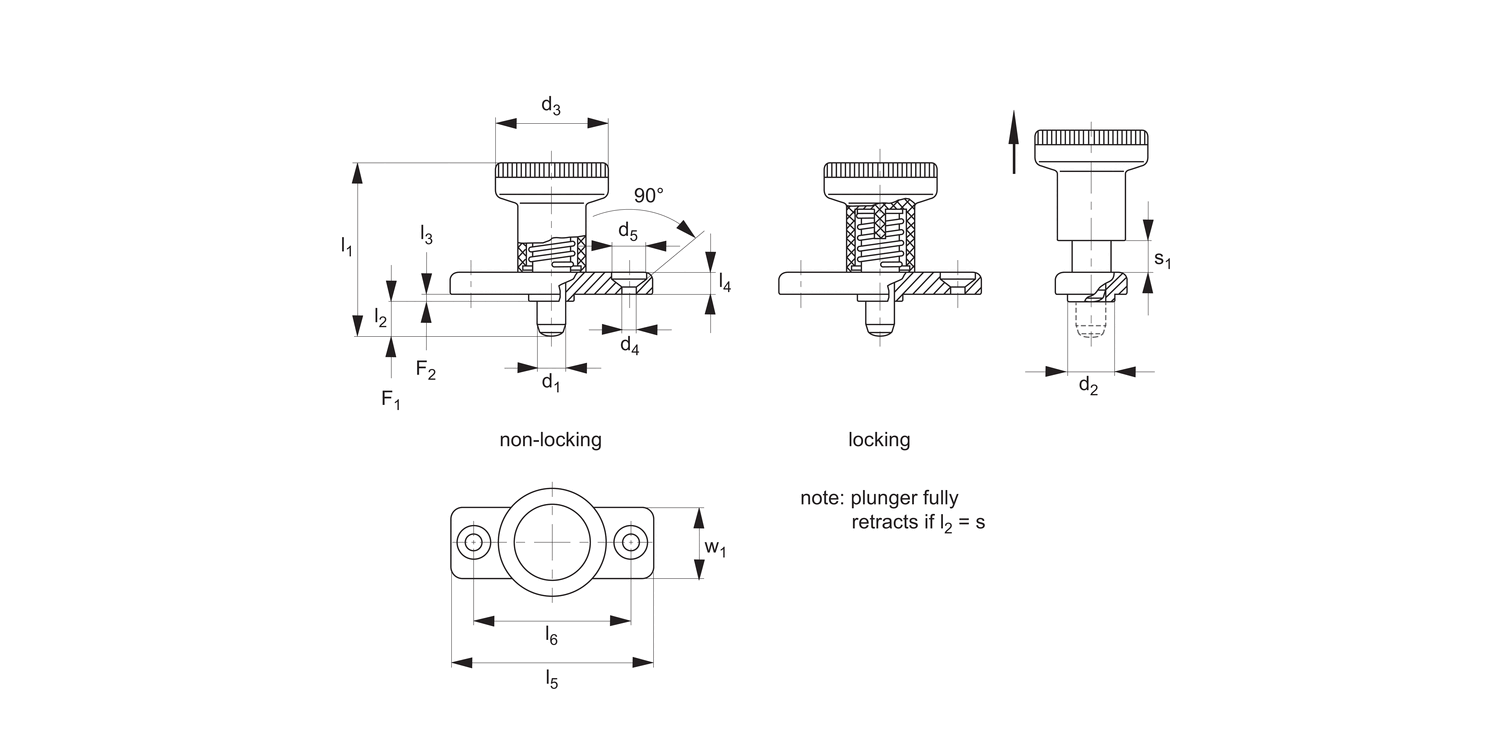

d1
-0.02|-0.04
8
d2
-0.02|-0.1
12
d3
31
d4
5.3
d5
10.4
l1
44
l2
8
l3
-0.15
2.5
l4
5.5
l5
46
l6
34
w1
20
Spring load F1
≈
N
15.5
Spring load F2
≈
N
28
Stroke s1
8
Weight
g
59
£ 17.34 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 17.34 | 0% |
| 5-9 | £ 15.61 | 10% |
| 10-19 | £ 14.74 | 15% |
| 20-49 | £ 13.01 | 25% |
| 50+ | £ 11.27 | 35% |
Technical & Application
Material
Free Cutting Steel Type-
Body: die cast zinc, galvanised.
Pin: steel, hardened.
Grip: thermoplastic PA6, black
Stainless Steel Type-
Body: die-cast zinc, galvanised.
Pin: stainless steel, 1.4305 (AISI 303), nickel plated.
Grip: thermoplastic PA6, black
Technical Notes
"Locking" type- enable pin to be held in retracted position; pull back grip, turn 90° to engage 'locking' on a notched catch.
"Non Locking" type- pin simply springs back when grip released.
Integeral mounting flange simplifies installation on flat surfaces.
Pin does not fully retract in all cases - note dimension 's' the stroke of the pin, i.e. the amount by which the pin retracts when actuated.
Temperature resistance -30°C to +80°C
Tips
Grip non-removable.
Spring loads * = statistical average.
