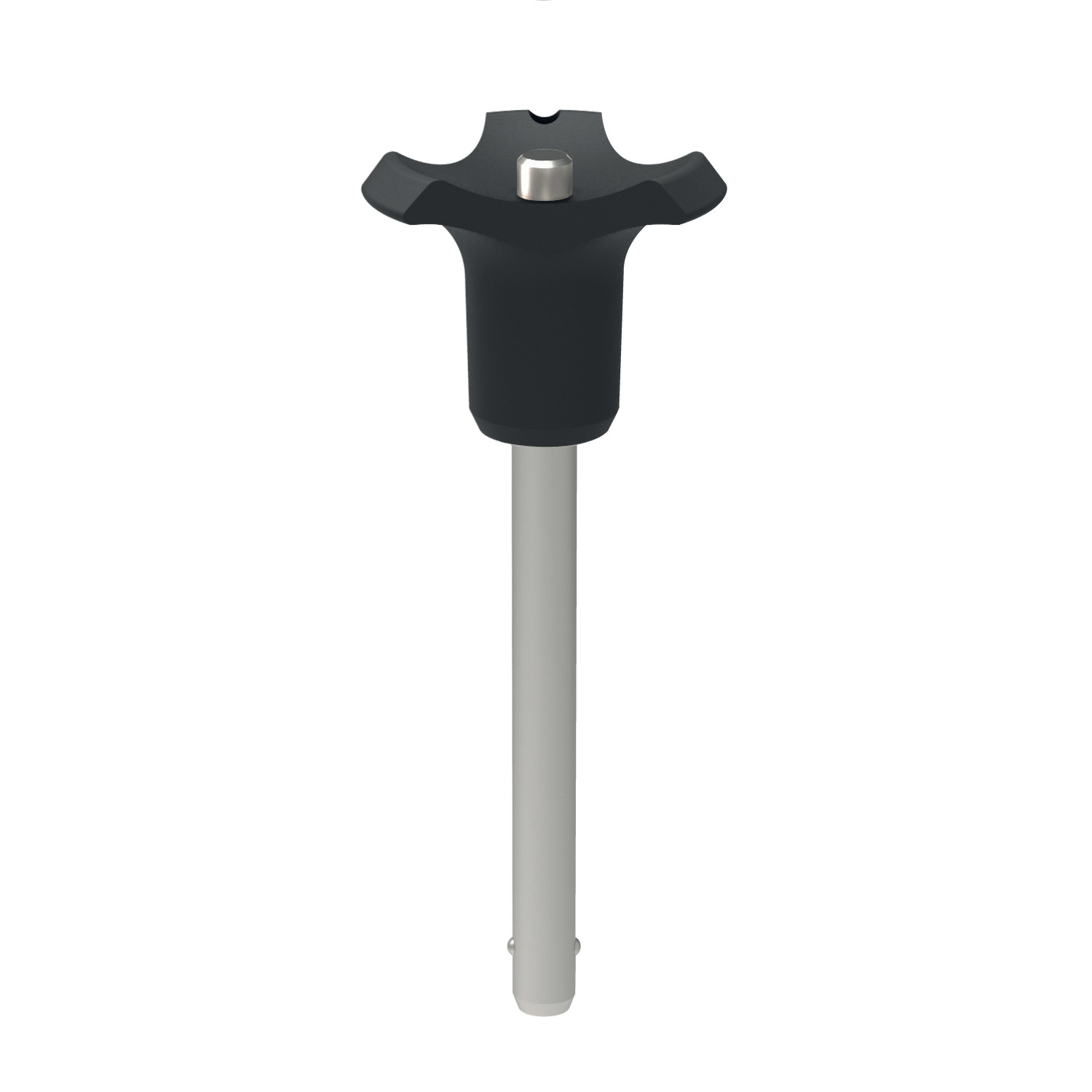

Ball Lock Pins
single-acting, hardened

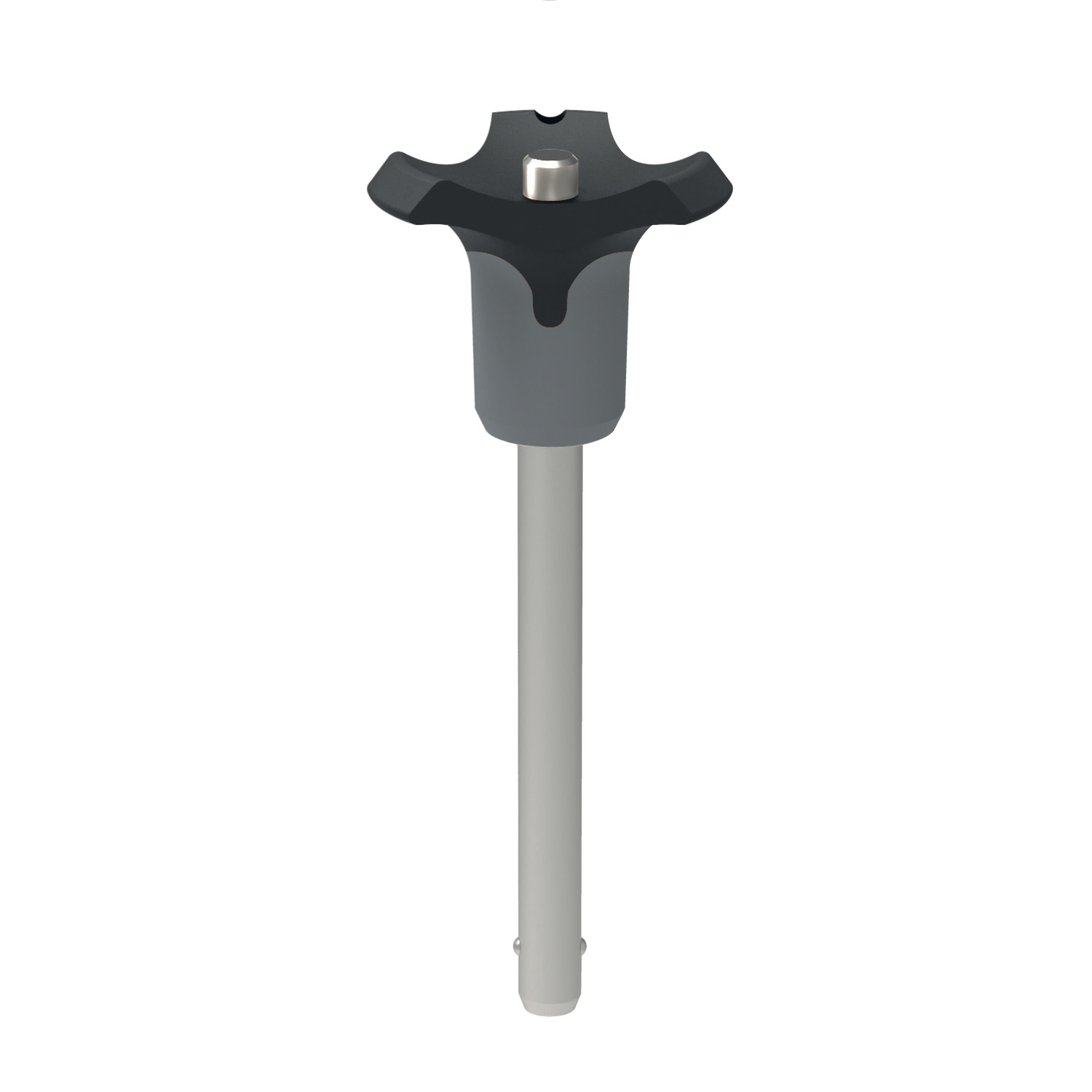

33080.GR Ball Lock Pins - Single Acting - Grey Plastic Handle
self-locking - stainless steel 1.4305 (AISI 303), material: Stainless steel
Order No.
33080.W0409

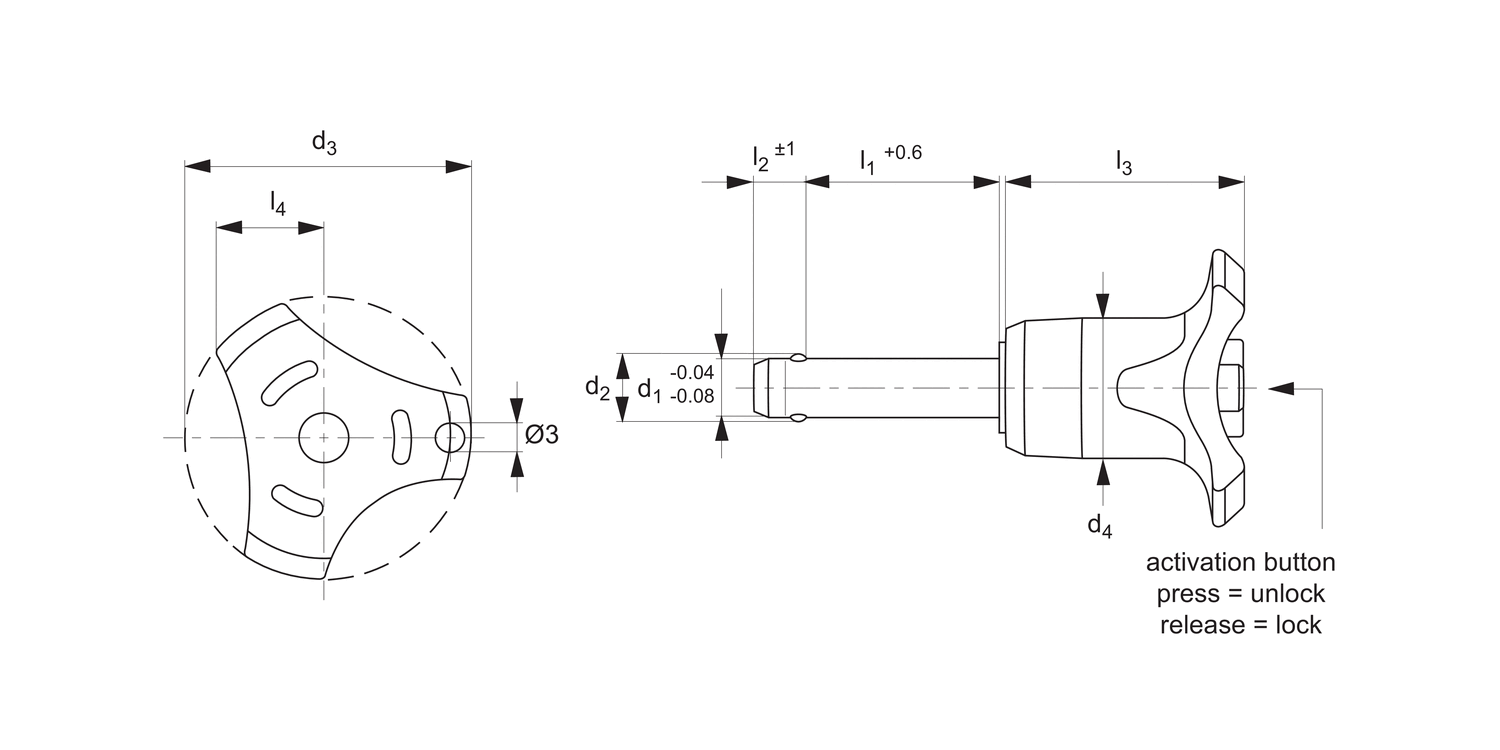

d1
25
l1
50
d2
30.8
d3
57.1
d4
33.8
l2
22.0
l3
50.7
l4
21.5
Loc'n hole
tol. H11
25
Shearing resistance, double
min.
kN
286
Weight
g
415
£ 140.17 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 140.17 | 0% |
| 10-19 | £ 126.15 | 10% |
| 20-49 | £ 119.14 | 15% |
| 50-99 | £ 112.14 | 20% |
| 100+ | £ 98.12 | 30% |
Technical & Application
Material
Pin: stainless steel 1.4542 (AISI 630)
Ball: stainless steel 1.3541
Spring: stainless steel.
Handle: thermoplastic PA 6.
Available colours: grey/orange, grey/blue, grey/grey.
Technical Notes
Pressing = unlocking.
Releasing = locking.
Temperature resistance -30°C to +80°C.
For quick fastening and locking of frequently repeated connections.
Tips
For lanyards & retaining cables see part no.33250-33261. Easy install locating bushes available see part no.33248 + 33246.
Important Notes
*Shearing resistance similar to DIN 50141.
Also available in stainless grade 1.4542 (AISI 630) for higher shear forces, see part no.33060.
Product Datasheets

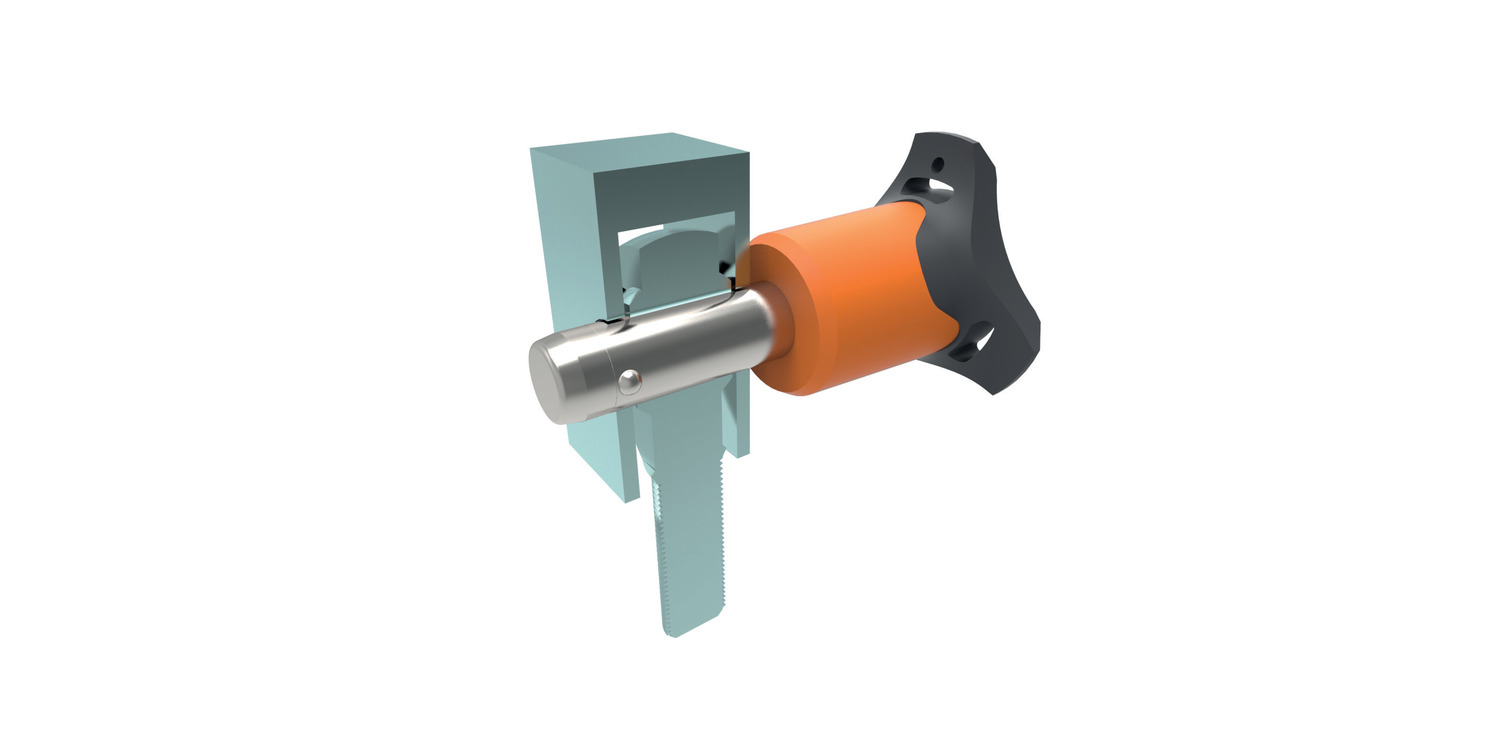

Application images
