Self-Aligning Pads
hard metal ball - ribbed

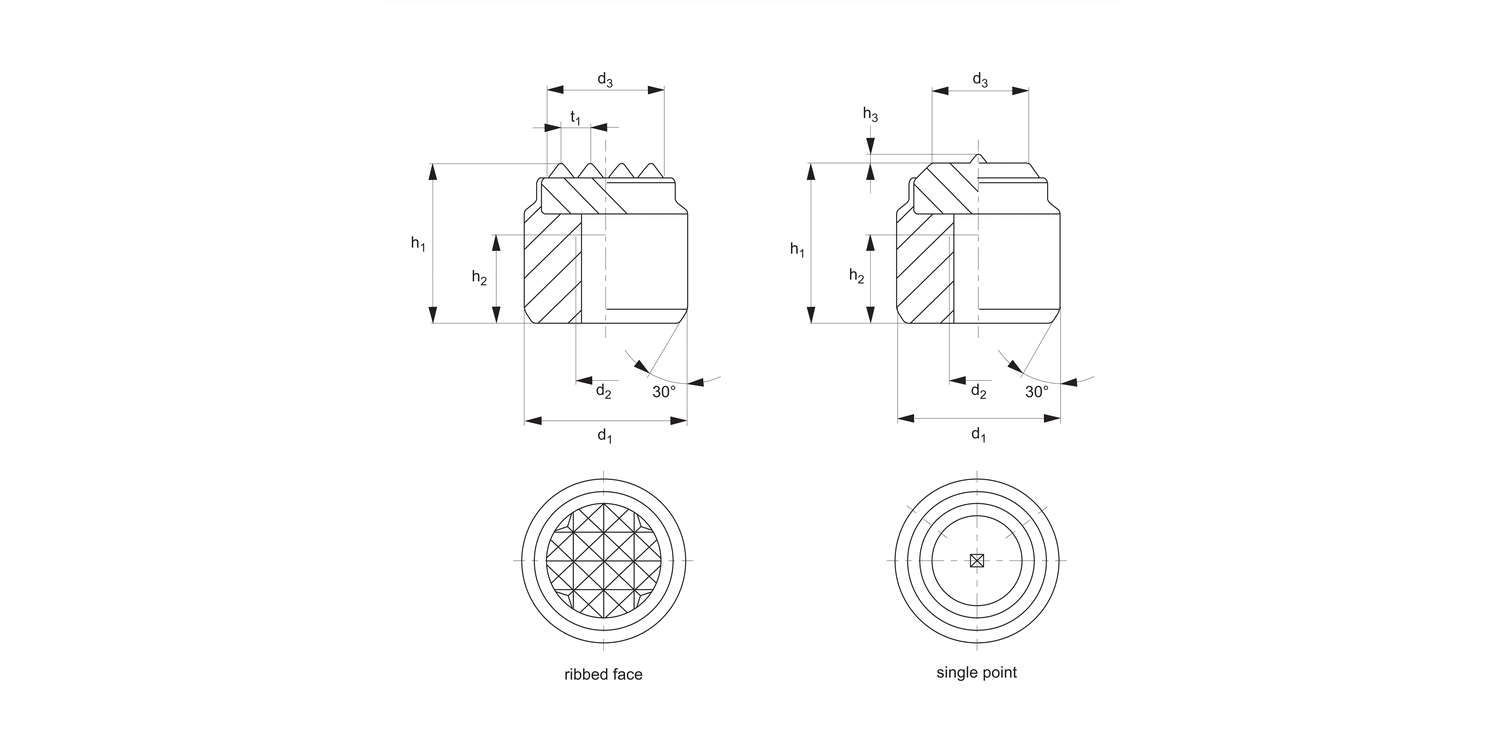

34082 Rest Pads
with hard metal inserts - ribbed, material: Steel, heat-treated
Order No.
34082.W0231
Type
Single Point
d1
tol. n6
14
d2
M 6
d3
≈
9.3
h1
13
h2
min.
6
h3
0.8
t1
-
Location hole
tol. H7
14
Weight
g
16
£ 37.40 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 37.40 | 0% |
| 3-4 | £ 33.66 | 10% |
| 5-9 | £ 31.79 | 15% |
| 10-19 | £ 29.92 | 20% |
| 20+ | £ 28.05 | 25% |
Technical & Application
Material
Body: steel, heat-treated, phosphated.
Insert: steel, heat-treated.
Technical Notes
Ideal as stop, support or thrust pad especially where cast components are being machined. Insert is brazed in position.
