Self-Aligning Pads
hard metal ball - ribbed
34080 Self-Aligning Pads
hard metal ball - ribbed, material: Steel , heat-treated
Alternative products you may wish to consider

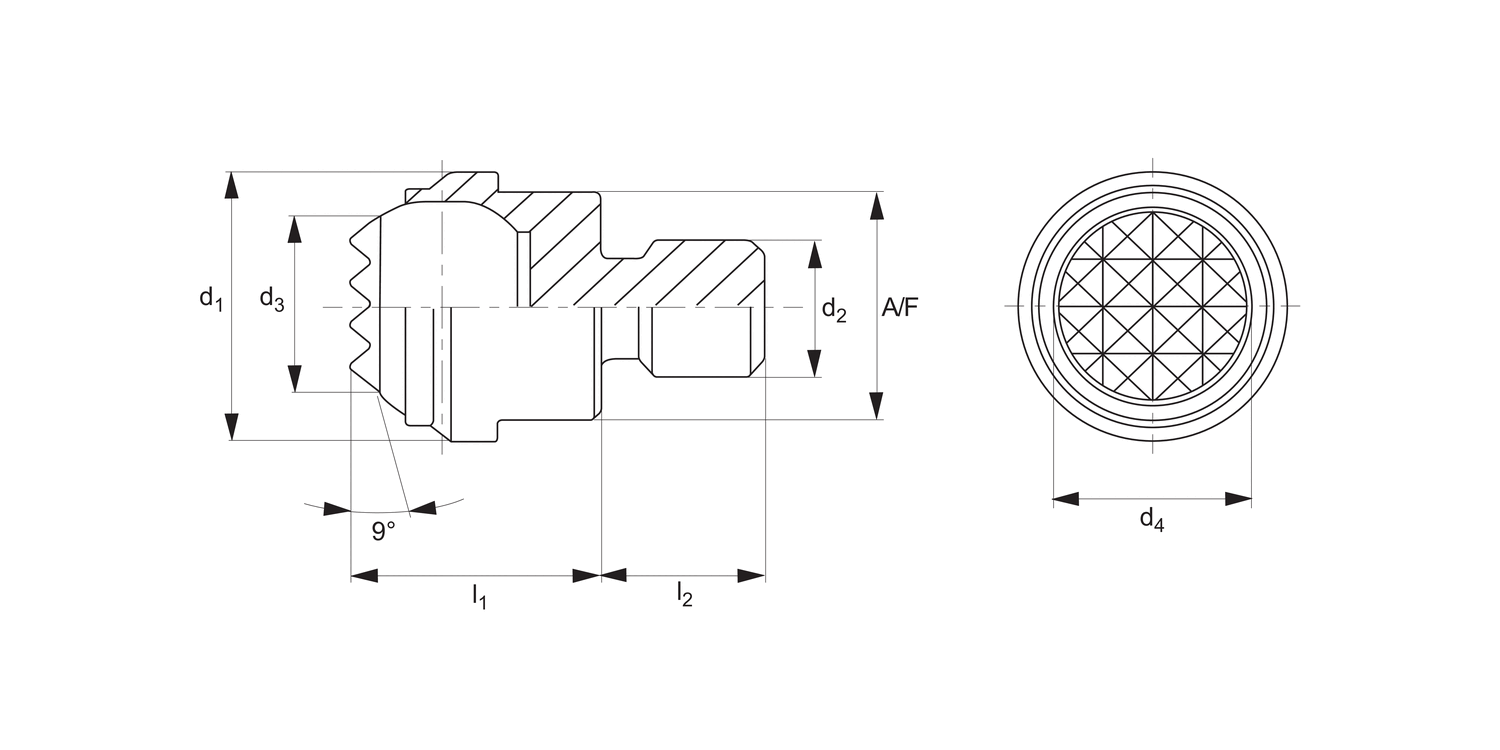

d1
13
d2
M 6
d3
8.3
d4
10
l1
±0.2
13
l2
-0.5
8
A/F
11
Static load
max.
kN
10
Tightening torque
max.
Nm
10
Weight
g
14.0
£ 73.63 per unit (click for quantity discounts)
d1
13
d2
M 8
d3
8.3
d4
10
l1
±0.2
13
l2
-0.5
8
A/F
11
Static load
max.
kN
10
Tightening torque
max.
Nm
25
Weight
g
16.0
£ 73.63 per unit (click for quantity discounts)
d1
20
d2
M 8
d3
12.8
d4
16
l1
±0.2
18
l2
-0.5
10
A/F
17
Static load
max.
kN
25
Tightening torque
max.
Nm
25
Weight
g
49.0
£ 98.81 per unit (click for quantity discounts)
d1
20
d2
M10
d3
12.8
d4
16
l1
±0.2
18
l2
-0.5
10
A/F
17
Static load
max.
kN
25
Tightening torque
max.
Nm
46
Weight
g
57.0
£ 98.81 per unit (click for quantity discounts)
d1
20
d2
M12
d3
12.8
d4
16
l1
±0.2
18
l2
-0.5
12
A/F
17
Static load
max.
kN
25
Tightening torque
max.
Nm
82
Weight
g
54.0
£ 98.81 per unit (click for quantity discounts)
d1
30
d2
M16
d3
20.0
d4
16
l1
±0.2
27
l2
-0.5
16
A/F
27
Static load
max.
kN
90
Tightening torque
max.
Nm
206
Weight
g
190.0
£ 140.72 per unit (click for quantity discounts)
d1
50
d2
M20
d3
34.5
d4
40
l1
±0.2
35
l2
-0.5
20
A/F
41
Static load
max.
kN
165
Tightening torque
max.
Nm
407
Weight
g
639.0
£ 277.77 per unit (click for quantity discounts)
d1
50
d2
M24
d3
34.5
d4
40
l1
±0.2
35
l2
-0.5
24
A/F
41
Static load
max.
kN
165
Tightening torque
max.
Nm
698
Weight
g
673.0
£ 277.77 per unit (click for quantity discounts)
d1
d2
d3
d4
l1
±0.2
l2
-0.5
A/F
Static load
max.
kN
Tightening torque
max.
Nm
Weight
g
| Price & Availability | Article | d1 | d2 | d3 | d4 | l1 ±0.2 | l2 -0.5 | A/F | Static load max. kN | Tightening torque max. Nm | Weight g | ||||||||||||||||||
| 34080.W0362 | 13 | M 6 | 8.3 | 10 | 13 | 8 | 11 | 10 | 10 | 14.0 | |||||||||||||||||||
£ 73.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 13 d2 M 6 d3 8.3 d4 10 l1
±0.2 13 l2
-0.5 8 A/F 11 Static load
max.
kN 10 Tightening torque
max.
Nm 10 Weight
g 14.0 | |||||||||||||||||||||||||||||
| 34080.W0363 | 13 | M 8 | 8.3 | 10 | 13 | 8 | 11 | 10 | 25 | 16.0 | |||||||||||||||||||
£ 73.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 13 d2 M 8 d3 8.3 d4 10 l1
±0.2 13 l2
-0.5 8 A/F 11 Static load
max.
kN 10 Tightening torque
max.
Nm 25 Weight
g 16.0 | |||||||||||||||||||||||||||||
| 34080.W0378 | 20 | M 8 | 12.8 | 16 | 18 | 10 | 17 | 25 | 25 | 49.0 | |||||||||||||||||||
£ 98.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 20 d2 M 8 d3 12.8 d4 16 l1
±0.2 18 l2
-0.5 10 A/F 17 Static load
max.
kN 25 Tightening torque
max.
Nm 25 Weight
g 49.0 | |||||||||||||||||||||||||||||
| 34080.W0379 | 20 | M10 | 12.8 | 16 | 18 | 10 | 17 | 25 | 46 | 57.0 | |||||||||||||||||||
£ 98.81 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 20 d2 M10 d3 12.8 d4 16 l1
±0.2 18 l2
-0.5 10 A/F 17 Static load
max.
kN 25 Tightening torque
max.
Nm 46 Weight
g 57.0 | |||||||||||||||||||||||||||||
| 34080.W0380 | 20 | M12 | 12.8 | 16 | 18 | 12 | 17 | 25 | 82 | 54.0 | |||||||||||||||||||
£ 98.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 20 d2 M12 d3 12.8 d4 16 l1
±0.2 18 l2
-0.5 12 A/F 17 Static load
max.
kN 25 Tightening torque
max.
Nm 82 Weight
g 54.0 | |||||||||||||||||||||||||||||
| 34080.W0381 | 30 | M16 | 20.0 | 16 | 27 | 16 | 27 | 90 | 206 | 190.0 | |||||||||||||||||||
£ 140.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 30 d2 M16 d3 20.0 d4 16 l1
±0.2 27 l2
-0.5 16 A/F 27 Static load
max.
kN 90 Tightening torque
max.
Nm 206 Weight
g 190.0 | |||||||||||||||||||||||||||||
| 34080.W0382 | 50 | M20 | 34.5 | 40 | 35 | 20 | 41 | 165 | 407 | 639.0 | |||||||||||||||||||
£ 277.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 50 d2 M20 d3 34.5 d4 40 l1
±0.2 35 l2
-0.5 20 A/F 41 Static load
max.
kN 165 Tightening torque
max.
Nm 407 Weight
g 639.0 | |||||||||||||||||||||||||||||
| 34080.W0383 | 50 | M24 | 34.5 | 40 | 35 | 24 | 41 | 165 | 698 | 673.0 | |||||||||||||||||||
£ 277.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 50 d2 M24 d3 34.5 d4 40 l1
±0.2 35 l2
-0.5 24 A/F 41 Static load
max.
kN 165 Tightening torque
max.
Nm 698 Weight
g 673.0 | |||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel, heat-treated, phosphated.
Ball: hard metal, nickel plated.
Technical Notes

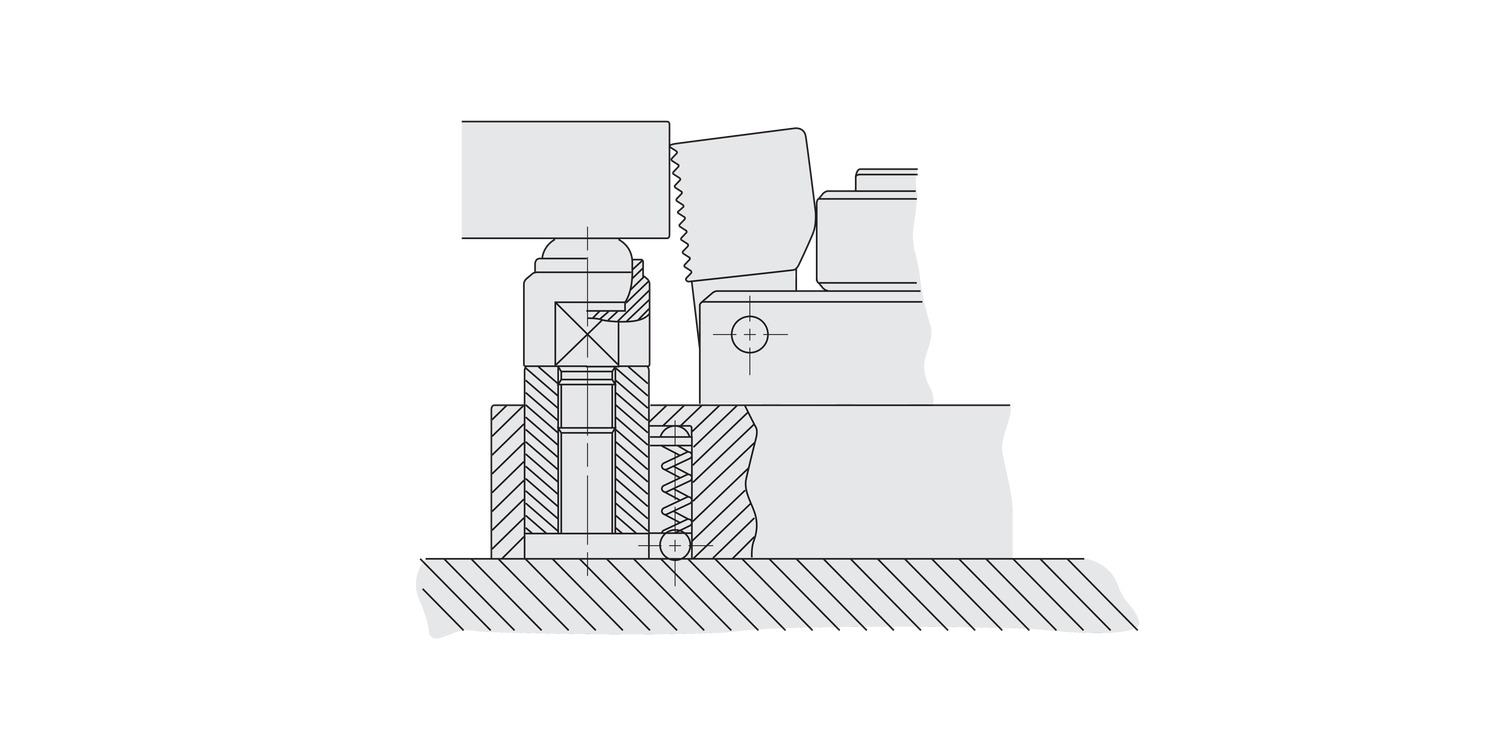

Ideal as stop, support or thrust pad especially where cast components are being machined. Insert is brazed in position.
Tips
Ball secured against turning.
Product Datasheets
CAD files
Application images
