Fixed Feet
s/s with hex socket
34744 Levelling Feet
bolt down option, bolt stainless steel, material: Plastic and stainless steel
Order No.
34744.W1201

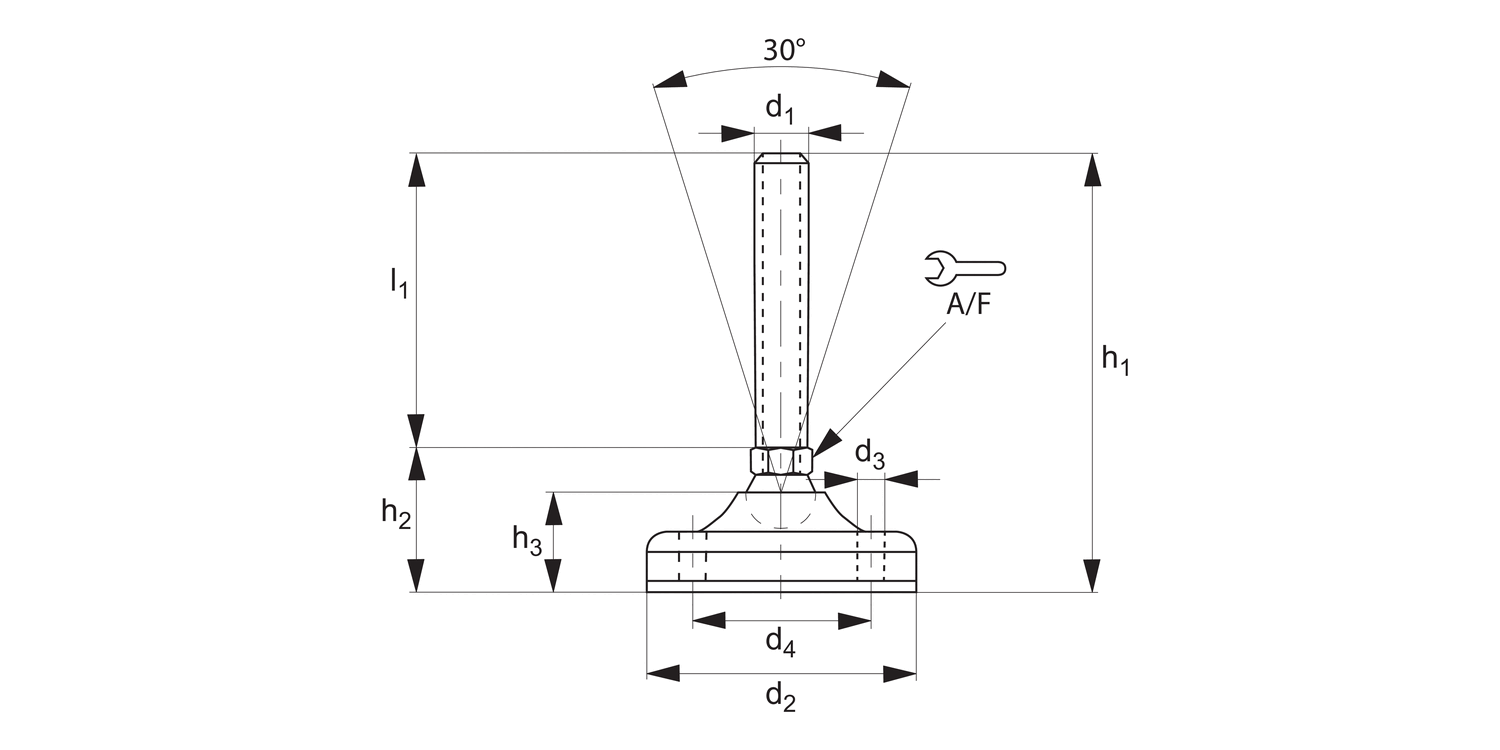

d1
M12
l1
75
d2
83
d3
8.5
d4
55
h1
116
h2
38
h3
27
A/F
14
Load
max.
kN
15
£ 12.29 per unit (click for quantity discounts)
Ready to despatch 3
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 12.29 | 0% |
| 20-49 | £ 11.06 | 10% |
| 50-99 | £ 9.83 | 20% |
| 100-499 | £ 9.22 | 25% |
| 500+ | £ 7.99 | 35% |
Technical & Application
Material
Pad: polyamide reinforced by fibre glass with anti-slip pad.
Bolt: stainless steel AISI 304.
Technical Notes
Load values refer to static loads, located at half the screw height.
When vibrations or dynamic loads are present these values should be reduced.
Larger pad size allows for bolt down holes to be drilled through.
