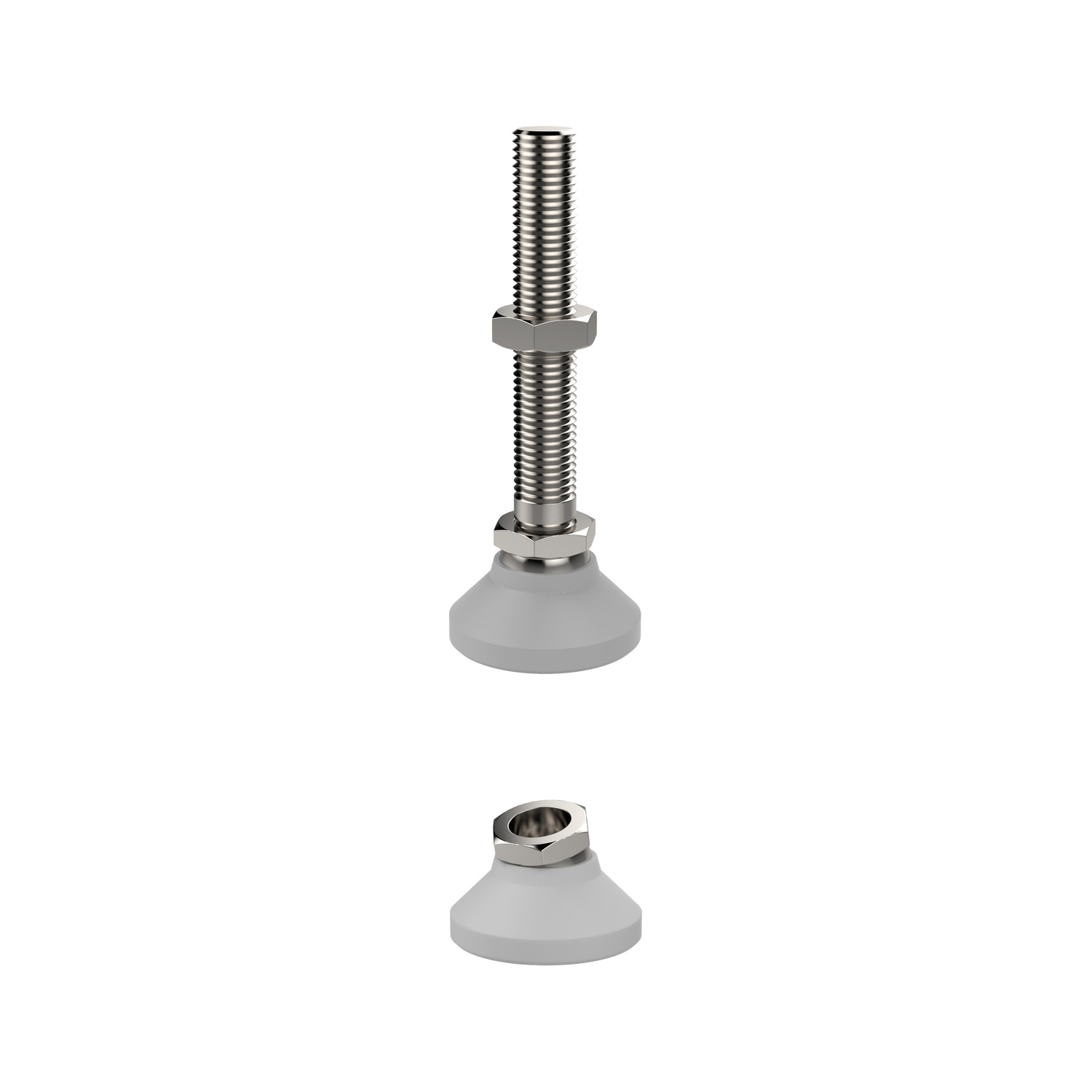

34760 Levelling Feet

pad thermoplastic, bolt stainless steel, material: Delrin and stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Fixed Feet
s/s with hex socket

Levelling Feet
pad plastic, bolt s/s

Levelling Feet
plastic & s/s

Levelling Feet
bolt down, plastic & s/s

Levelling Feet
bolt down, plastic & s/s

Machine Mount
vibration dampening

Machine Mount
bolt down, vibration dampening

Levelling Feet
pad delrin, bolt s/s

Machine Mount
bolt down, plastic & s/s

Levelling Feet nonslip
pad delrin, bolt s/s

Machine Feet
low profile, pad & bolt s/s

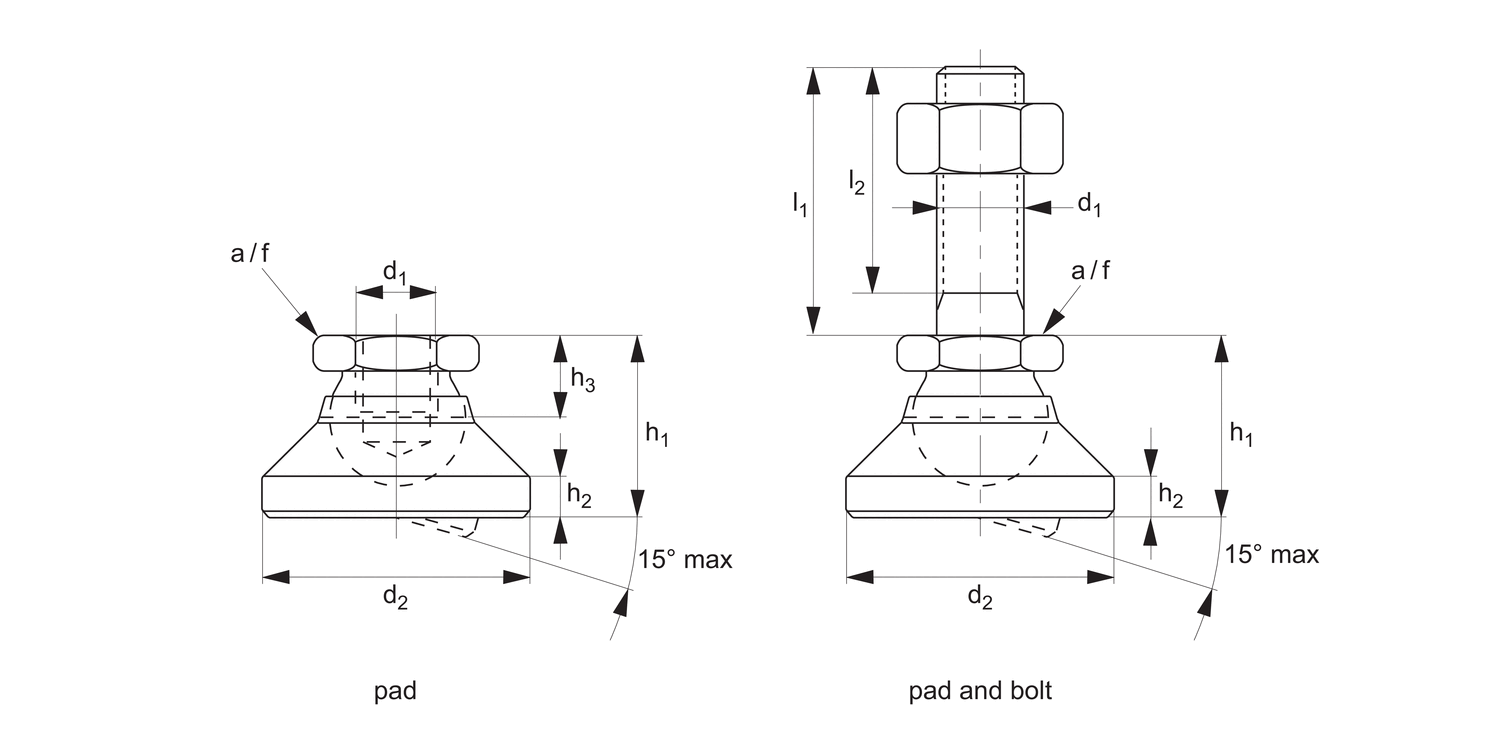

Levelling Feet - Delrin and SS. Pad - M 6 - 20

34760.W0106

Type

Pad

d₁

M 6

l₁

-

d₂

20

l₂

-

h₁ ≈

14

h₂

2.5

h₃

5.0

Static load max. kN

4

A/F

10

Weight g

6

£ 12.41 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M 8 - 25

34760.W0108

Type

Pad

d₁

M 8

l₁

-

d₂

25

l₂

-

h₁ ≈

18

h₂

4.0

h₃

7.0

Static load max. kN

7

A/F

13

Weight g

13

£ 14.46 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M10 - 32

34760.W0110

Type

Pad

d₁

M10

l₁

-

d₂

32

l₂

-

h₁ ≈

22

h₂

5.0

h₃

9.0

Static load max. kN

10

A/F

17

Weight g

26

£ 18.65 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M12 - 40

34760.W0112

Type

Pad

d₁

M12

l₁

-

d₂

40

l₂

-

h₁ ≈

26

h₂

6.0

h₃

11.0

Static load max. kN

18

A/F

19

Weight g

40

£ 25.67 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M16 - 50

34760.W0116

Type

Pad

d₁

M16

l₁

-

d₂

50

l₂

-

h₁ ≈

32

h₂

7.0

h₃

13.5

Static load max. kN

20

A/F

24

Weight g

75

£ 33.97 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M20 - 60

34760.W0120

Type

Pad

d₁

M20

l₁

-

d₂

60

l₂

-

h₁ ≈

42

h₂

8.0

h₃

17.0

Static load max. kN

22

A/F

30

Weight g

120

£ 45.00 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M24 - 60

34760.W0124

Type

Pad

d₁

M24

l₁

-

d₂

60

l₂

-

h₁ ≈

45

h₂

9.5

h₃

19.0

Static load max. kN

25

A/F

36

Weight g

184

£ 60.31 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M 6 - 60 - 20

34760.W0510

Type

Pad and Bolt

d₁

M 6

l₁

60

d₂

20

l₂

57.0

h₁ ≈

14

h₂

2.5

h₃

-

Static load max. kN

4

A/F

10

Weight g

20

£ 23.36 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M 8 - 80 - 25

34760.W0522

Type

Pad and Bolt

d₁

M 8

l₁

80

d₂

25

l₂

76.0

h₁ ≈

18

h₂

4.0

h₃

-

Static load max. kN

7

A/F

13

Weight g

46

£ 25.67 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M10 - 100 - 32

34760.W0538

Type

Pad and Bolt

d₁

M10

l₁

100

d₂

32

l₂

95.5

h₁ ≈

22

h₂

5.0

h₃

-

Static load max. kN

10

A/F

17

Weight g

92

£ 33.20 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M10 - 150 - 32

34760.W0542

Type

Pad and Bolt

d₁

M10

l₁

150

d₂

32

l₂

145.5

h₁ ≈

22

h₂

5.0

h₃

-

Static load max. kN

10

A/F

17

Weight g

118

£ 39.45 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M12 - 100 - 40

34760.W0552

Type

Pad and Bolt

d₁

M12

l₁

100

d₂

40

l₂

94.5

h₁ ≈

26

h₂

6.0

h₃

-

Static load max. kN

18

A/F

19

Weight g

139

£ 39.70 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M12 - 150 - 40

34760.W0556

Type

Pad and Bolt

d₁

M12

l₁

150

d₂

40

l₂

144.5

h₁ ≈

26

h₂

6.0

h₃

-

Static load max. kN

18

A/F

19

Weight g

173

£ 45.69 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M16 - 100 - 50

34760.W0568

Type

Pad and Bolt

d₁

M16

l₁

100

d₂

50

l₂

94.0

h₁ ≈

32

h₂

7.0

h₃

-

Static load max. kN

20

A/F

24

Weight g

264

£ 52.95 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M16 - 200 - 50

34760.W0572

Type

Pad and Bolt

d₁

M16

l₁

200

d₂

50

l₂

194.0

h₁ ≈

32

h₂

7.0

h₃

-

Static load max. kN

20

A/F

24

Weight g

393

£ 64.76 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M20 - 100 - 60

34760.W0582

Type

Pad and Bolt

d₁

M20

l₁

100

d₂

60

l₂

92.5

h₁ ≈

42

h₂

8.0

h₃

-

Static load max. kN

22

A/F

30

Weight g

463

£ 70.66 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M20 - 200 - 60

34760.W0588

Type

Pad and Bolt

d₁

M20

l₁

200

d₂

60

l₂

192.5

h₁ ≈

42

h₂

8.0

h₃

-

Static load max. kN

22

A/F

30

Weight g

664

£ 85.29 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M24 - 100 - 60

34760.W0595

Type

Pad and Bolt

d₁

M24

l₁

100

d₂

60

l₂

91.0

h₁ ≈

45

h₂

9.5

h₃

-

Static load max. kN

25

A/F

36

Weight g

662

£ 86.74 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M24 - 200 - 60

34760.W0598

Type

Pad and Bolt

d₁

M24

l₁

200

d₂

60

l₂

191.0

h₁ ≈

45

h₂

9.5

h₃

-

Static load max. kN

25

A/F

36

Weight g

960

£ 107.36 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M 6 - 20

34760.W0106

Type

Pad

d₁

M 6

l₁

-

d₂

20

l₂

-

h₁ ≈

14

h₂

2.5

h₃

5.0

Static load max. kN

4

A/F

10

Weight g

6

£ 12.41 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M 8 - 25

34760.W0108

Type

Pad

d₁

M 8

l₁

-

d₂

25

l₂

-

h₁ ≈

18

h₂

4.0

h₃

7.0

Static load max. kN

7

A/F

13

Weight g

13

£ 14.46 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M10 - 32

34760.W0110

Type

Pad

d₁

M10

l₁

-

d₂

32

l₂

-

h₁ ≈

22

h₂

5.0

h₃

9.0

Static load max. kN

10

A/F

17

Weight g

26

£ 18.65 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M12 - 40

34760.W0112

Type

Pad

d₁

M12

l₁

-

d₂

40

l₂

-

h₁ ≈

26

h₂

6.0

h₃

11.0

Static load max. kN

18

A/F

19

Weight g

40

£ 25.67 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M16 - 50

34760.W0116

Type

Pad

d₁

M16

l₁

-

d₂

50

l₂

-

h₁ ≈

32

h₂

7.0

h₃

13.5

Static load max. kN

20

A/F

24

Weight g

75

£ 33.97 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M20 - 60

34760.W0120

Type

Pad

d₁

M20

l₁

-

d₂

60

l₂

-

h₁ ≈

42

h₂

8.0

h₃

17.0

Static load max. kN

22

A/F

30

Weight g

120

£ 45.00 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad - M24 - 60

34760.W0124

Type

Pad

d₁

M24

l₁

-

d₂

60

l₂

-

h₁ ≈

45

h₂

9.5

h₃

19.0

Static load max. kN

25

A/F

36

Weight g

184

£ 60.31 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M 6 - 60 - 20

34760.W0510

Type

Pad and Bolt

d₁

M 6

l₁

60

d₂

20

l₂

57.0

h₁ ≈

14

h₂

2.5

h₃

-

Static load max. kN

4

A/F

10

Weight g

20

£ 23.36 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M 8 - 80 - 25

34760.W0522

Type

Pad and Bolt

d₁

M 8

l₁

80

d₂

25

l₂

76.0

h₁ ≈

18

h₂

4.0

h₃

-

Static load max. kN

7

A/F

13

Weight g

46

£ 25.67 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M10 - 100 - 32

34760.W0538

Type

Pad and Bolt

d₁

M10

l₁

100

d₂

32

l₂

95.5

h₁ ≈

22

h₂

5.0

h₃

-

Static load max. kN

10

A/F

17

Weight g

92

£ 33.20 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M10 - 150 - 32

34760.W0542

Type

Pad and Bolt

d₁

M10

l₁

150

d₂

32

l₂

145.5

h₁ ≈

22

h₂

5.0

h₃

-

Static load max. kN

10

A/F

17

Weight g

118

£ 39.45 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M12 - 100 - 40

34760.W0552

Type

Pad and Bolt

d₁

M12

l₁

100

d₂

40

l₂

94.5

h₁ ≈

26

h₂

6.0

h₃

-

Static load max. kN

18

A/F

19

Weight g

139

£ 39.70 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M12 - 150 - 40

34760.W0556

Type

Pad and Bolt

d₁

M12

l₁

150

d₂

40

l₂

144.5

h₁ ≈

26

h₂

6.0

h₃

-

Static load max. kN

18

A/F

19

Weight g

173

£ 45.69 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M16 - 100 - 50

34760.W0568

Type

Pad and Bolt

d₁

M16

l₁

100

d₂

50

l₂

94.0

h₁ ≈

32

h₂

7.0

h₃

-

Static load max. kN

20

A/F

24

Weight g

264

£ 52.95 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M16 - 200 - 50

34760.W0572

Type

Pad and Bolt

d₁

M16

l₁

200

d₂

50

l₂

194.0

h₁ ≈

32

h₂

7.0

h₃

-

Static load max. kN

20

A/F

24

Weight g

393

£ 64.76 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M20 - 100 - 60

34760.W0582

Type

Pad and Bolt

d₁

M20

l₁

100

d₂

60

l₂

92.5

h₁ ≈

42

h₂

8.0

h₃

-

Static load max. kN

22

A/F

30

Weight g

463

£ 70.66 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M20 - 200 - 60

34760.W0588

Type

Pad and Bolt

d₁

M20

l₁

200

d₂

60

l₂

192.5

h₁ ≈

42

h₂

8.0

h₃

-

Static load max. kN

22

A/F

30

Weight g

664

£ 85.29 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M24 - 100 - 60

34760.W0595

Type

Pad and Bolt

d₁

M24

l₁

100

d₂

60

l₂

91.0

h₁ ≈

45

h₂

9.5

h₃

-

Static load max. kN

25

A/F

36

Weight g

662

£ 86.74 per unit (click for quantity discounts)

Levelling Feet - Delrin and SS. Pad and Bolt - M24 - 200 - 60

34760.W0598

Type

Pad and Bolt

d₁

M24

l₁

200

d₂

60

l₂

191.0

h₁ ≈

45

h₂

9.5

h₃

-

Static load max. kN

25

A/F

36

Weight g

960

£ 107.36 per unit (click for quantity discounts)



Select all

Type

d₁

l₁

d₂

l₂

h₁ ≈

h₂

h₃

Static load max. kN

A/F

Weight g

Price & Availability	Article	Type	d1	l1	d2	l2	h1 ≈	h2	h3	Static load max. kN	A/F	Weight g
	34760.W0106	Pad	M 6	-	20	-	14	2.5	5.0	4	10	6
£ 12.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 12.41 0% 10-19 £ 11.17 10% 20-49 £ 10.55 15% 50-99 £ 9.93 20% 100+ £ 9.31 25% Type Pad d1 M 6 l1 - d2 20 l2 - h1 ≈ 14 h2 2.5 h3 5.0 Static load max. kN 4 A/F 10 Weight g 6 more info »
	34760.W0108	Pad	M 8	-	25	-	18	4.0	7.0	7	13	13
£ 14.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 14.46 0% 10-19 £ 13.01 10% 20-49 £ 12.29 15% 50-99 £ 11.57 20% 100+ £ 10.85 25% Type Pad d1 M 8 l1 - d2 25 l2 - h1 ≈ 18 h2 4.0 h3 7.0 Static load max. kN 7 A/F 13 Weight g 13 more info »
	34760.W0110	Pad	M10	-	32	-	22	5.0	9.0	10	17	26
£ 18.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 18.65 0% 10-19 £ 16.79 10% 20-49 £ 15.85 15% 50-99 £ 14.92 20% 100+ £ 13.99 25% Type Pad d1 M10 l1 - d2 32 l2 - h1 ≈ 22 h2 5.0 h3 9.0 Static load max. kN 10 A/F 17 Weight g 26 more info »
	34760.W0112	Pad	M12	-	40	-	26	6.0	11.0	18	19	40
£ 25.67 per unit (click for quantity discounts) Ready to despatch 25 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 25.67 0% 10-19 £ 23.10 10% 20-49 £ 21.82 15% 50-99 £ 20.54 20% 100+ £ 19.25 25% Type Pad d1 M12 l1 - d2 40 l2 - h1 ≈ 26 h2 6.0 h3 11.0 Static load max. kN 18 A/F 19 Weight g 40 more info »
	34760.W0116	Pad	M16	-	50	-	32	7.0	13.5	20	24	75
£ 33.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 33.97 0% 10-19 £ 30.57 10% 20-49 £ 28.87 15% 50-99 £ 27.18 20% 100+ £ 25.48 25% Type Pad d1 M16 l1 - d2 50 l2 - h1 ≈ 32 h2 7.0 h3 13.5 Static load max. kN 20 A/F 24 Weight g 75 more info »
	34760.W0120	Pad	M20	-	60	-	42	8.0	17.0	22	30	120
£ 45.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 45.00 0% 10-19 £ 40.50 10% 20-49 £ 38.25 15% 50-99 £ 36.00 20% 100+ £ 33.75 25% Type Pad d1 M20 l1 - d2 60 l2 - h1 ≈ 42 h2 8.0 h3 17.0 Static load max. kN 22 A/F 30 Weight g 120 more info »
	34760.W0124	Pad	M24	-	60	-	45	9.5	19.0	25	36	184
£ 60.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 60.31 0% 10-19 £ 54.28 10% 20-49 £ 51.26 15% 50-99 £ 48.25 20% 100+ £ 45.23 25% Type Pad d1 M24 l1 - d2 60 l2 - h1 ≈ 45 h2 9.5 h3 19.0 Static load max. kN 25 A/F 36 Weight g 184 more info »
	34760.W0510	Pad and Bolt	M 6	60	20	57.0	14	2.5	-	4	10	20
£ 23.36 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 23.36 0% 10-19 £ 21.02 10% 20-49 £ 19.86 15% 50-99 £ 18.69 20% 100+ £ 17.52 25% Type Pad and Bolt d1 M 6 l1 60 d2 20 l2 57.0 h1 ≈ 14 h2 2.5 h3 - Static load max. kN 4 A/F 10 Weight g 20 more info »
	34760.W0522	Pad and Bolt	M 8	80	25	76.0	18	4.0	-	7	13	46
£ 25.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 25.67 0% 10-19 £ 23.10 10% 20-49 £ 21.82 15% 50-99 £ 20.54 20% 100+ £ 19.25 25% Type Pad and Bolt d1 M 8 l1 80 d2 25 l2 76.0 h1 ≈ 18 h2 4.0 h3 - Static load max. kN 7 A/F 13 Weight g 46 more info »
	34760.W0538	Pad and Bolt	M10	100	32	95.5	22	5.0	-	10	17	92
£ 33.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 33.20 0% 10-19 £ 29.88 10% 20-49 £ 28.22 15% 50-99 £ 26.56 20% 100+ £ 24.90 25% Type Pad and Bolt d1 M10 l1 100 d2 32 l2 95.5 h1 ≈ 22 h2 5.0 h3 - Static load max. kN 10 A/F 17 Weight g 92 more info »
	34760.W0542	Pad and Bolt	M10	150	32	145.5	22	5.0	-	10	17	118
£ 39.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 39.45 0% 10-19 £ 35.51 10% 20-49 £ 33.53 15% 50-99 £ 31.56 20% 100+ £ 29.59 25% Type Pad and Bolt d1 M10 l1 150 d2 32 l2 145.5 h1 ≈ 22 h2 5.0 h3 - Static load max. kN 10 A/F 17 Weight g 118 more info »
	34760.W0552	Pad and Bolt	M12	100	40	94.5	26	6.0	-	18	19	139
£ 39.70 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 39.70 0% 10-19 £ 35.73 10% 20-49 £ 33.75 15% 50-99 £ 31.76 20% 100+ £ 29.78 25% Type Pad and Bolt d1 M12 l1 100 d2 40 l2 94.5 h1 ≈ 26 h2 6.0 h3 - Static load max. kN 18 A/F 19 Weight g 139 more info »
	34760.W0556	Pad and Bolt	M12	150	40	144.5	26	6.0	-	18	19	173
£ 45.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 45.69 0% 10-19 £ 41.12 10% 20-49 £ 38.84 15% 50-99 £ 36.55 20% 100+ £ 34.27 25% Type Pad and Bolt d1 M12 l1 150 d2 40 l2 144.5 h1 ≈ 26 h2 6.0 h3 - Static load max. kN 18 A/F 19 Weight g 173 more info »
	34760.W0568	Pad and Bolt	M16	100	50	94.0	32	7.0	-	20	24	264
£ 52.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 52.95 0% 10-19 £ 47.66 10% 20-49 £ 45.01 15% 50-99 £ 42.36 20% 100+ £ 39.71 25% Type Pad and Bolt d1 M16 l1 100 d2 50 l2 94.0 h1 ≈ 32 h2 7.0 h3 - Static load max. kN 20 A/F 24 Weight g 264 more info »
	34760.W0572	Pad and Bolt	M16	200	50	194.0	32	7.0	-	20	24	393
£ 64.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 64.76 0% 10-19 £ 58.28 10% 20-49 £ 55.05 15% 50-99 £ 51.81 20% 100+ £ 48.57 25% Type Pad and Bolt d1 M16 l1 200 d2 50 l2 194.0 h1 ≈ 32 h2 7.0 h3 - Static load max. kN 20 A/F 24 Weight g 393 more info »
	34760.W0582	Pad and Bolt	M20	100	60	92.5	42	8.0	-	22	30	463
£ 70.66 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 70.66 0% 10-19 £ 63.59 10% 20-49 £ 60.06 15% 50-99 £ 56.53 20% 100+ £ 53.00 25% Type Pad and Bolt d1 M20 l1 100 d2 60 l2 92.5 h1 ≈ 42 h2 8.0 h3 - Static load max. kN 22 A/F 30 Weight g 463 more info »
	34760.W0588	Pad and Bolt	M20	200	60	192.5	42	8.0	-	22	30	664
£ 85.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 85.29 0% 10-19 £ 76.76 10% 20-49 £ 72.50 15% 50-99 £ 68.23 20% 100+ £ 63.97 25% Type Pad and Bolt d1 M20 l1 200 d2 60 l2 192.5 h1 ≈ 42 h2 8.0 h3 - Static load max. kN 22 A/F 30 Weight g 664 more info »
	34760.W0595	Pad and Bolt	M24	100	60	91.0	45	9.5	-	25	36	662
£ 86.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 86.74 0% 10-19 £ 78.07 10% 20-49 £ 73.73 15% 50-99 £ 69.39 20% 100+ £ 65.06 25% Type Pad and Bolt d1 M24 l1 100 d2 60 l2 91.0 h1 ≈ 45 h2 9.5 h3 - Static load max. kN 25 A/F 36 Weight g 662 more info »
	34760.W0598	Pad and Bolt	M24	200	60	191.0	45	9.5	-	25	36	960
£ 107.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 107.36 0% 10-19 £ 96.62 10% 20-49 £ 91.26 15% 50-99 £ 85.89 20% 100+ £ 80.52 25% Type Pad and Bolt d1 M24 l1 200 d2 60 l2 191.0 h1 ≈ 45 h2 9.5 h3 - Static load max. kN 25 A/F 36 Weight g 960 more info »
