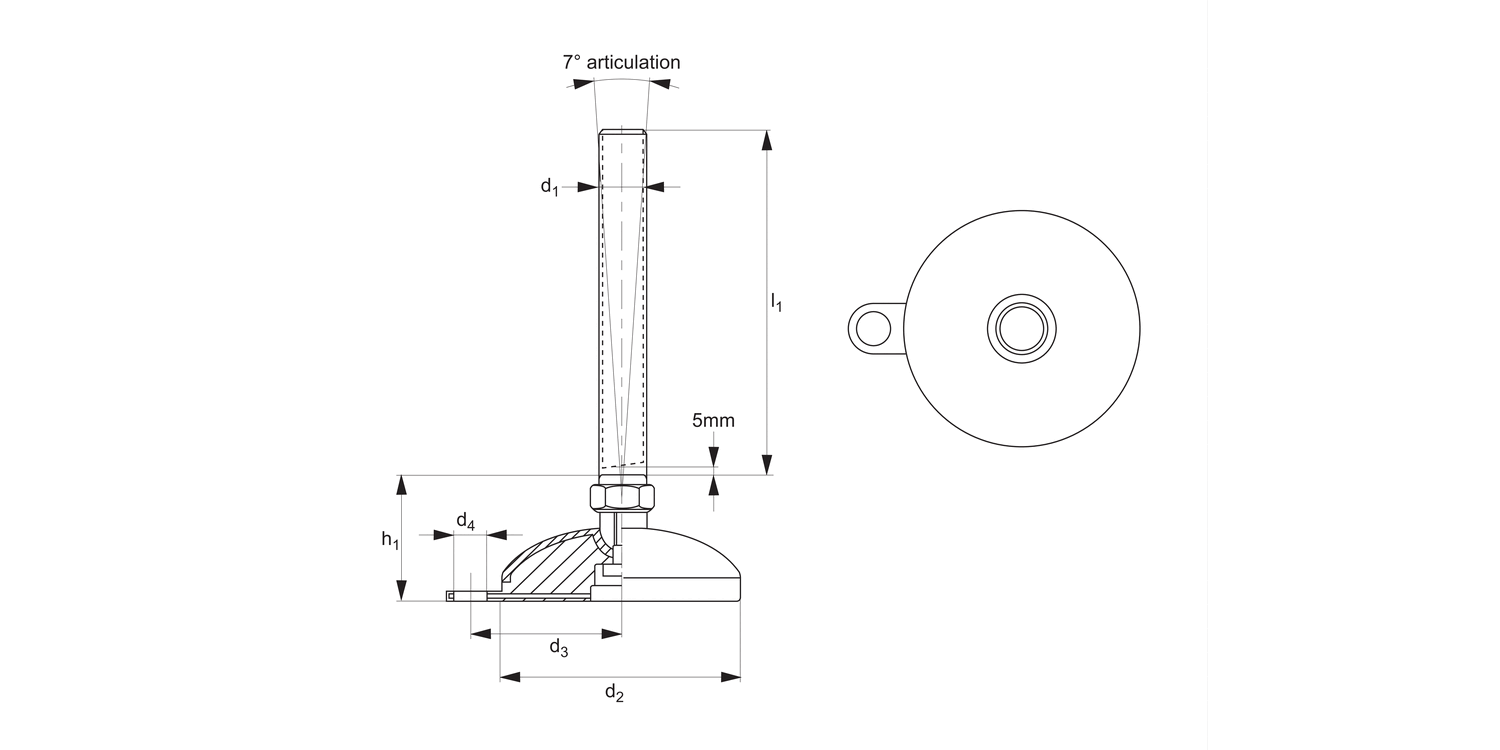

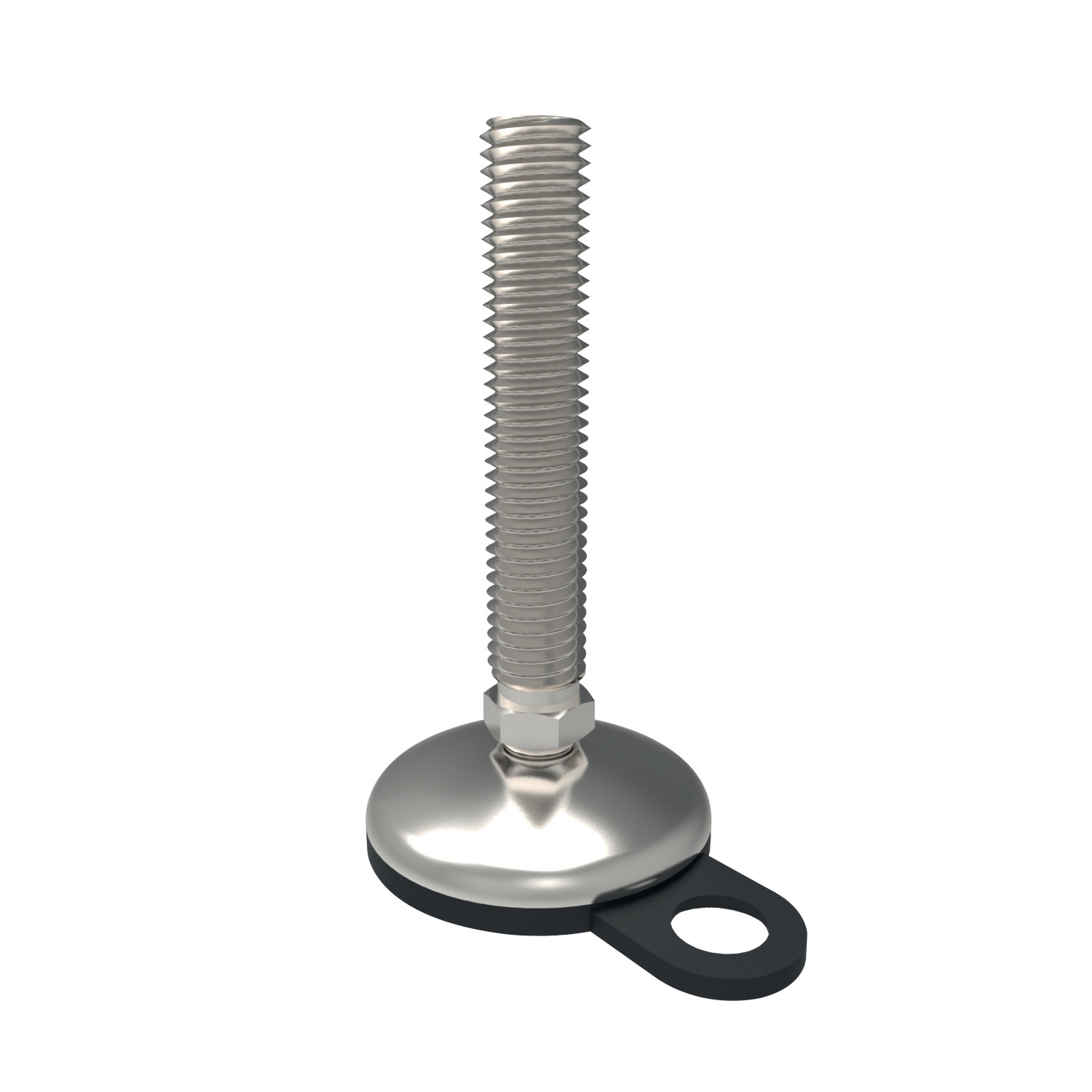

34752 Machine Mount - Bolt Down

pad and bolt - stainless steel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Fixed Feet
s/s with hex socket

Levelling Feet
pad plastic, bolt s/s

Levelling Feet
plastic & s/s

Levelling Feet
bolt down, plastic & s/s

Levelling Feet
bolt down, plastic & s/s

Machine Mount
vibration dampening

Machine Mount
bolt down, vibration dampening

Levelling Feet
pad delrin, bolt s/s

Machine Mount
bolt down, plastic & s/s

Levelling Feet nonslip
pad delrin, bolt s/s

Machine Feet
low profile, pad & bolt s/s

Machine Mount - Bolt Down - SS. M16 - 100 - 33 - 75

34752.W0662

d₁

M16

l₁

100

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 28.17 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 150 - 33 - 75

34752.W0663

d₁

M16

l₁

150

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 31.21 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 200 - 33 - 75

34752.W0664

d₁

M16

l₁

200

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 37.60 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 100 - 38 - 100

34752.W0665

d₁

M16

l₁

100

d₂

100

d₃

67

d₄

13

h₁

38

Static load max. kN

10.0

£ 33.81 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 150 - 38 - 100

34752.W0666

d₁

M16

l₁

150

d₂

100

d₃

67

d₄

13

h₁

38

Static load max. kN

10.0

£ 34.23 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 200 - 38 - 100

34752.W0667

d₁

M16

l₁

200

d₂

100

d₃

67

d₄

13

h₁

38

Static load max. kN

10.0

£ 41.92 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M20 - 150 - 33 - 75

34752.W0700

d₁

M20

l₁

150

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 41.59 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M20 - 200 - 33 - 75

34752.W0701

d₁

M20

l₁

200

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 45.69 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M20 - 150 - 41 - 100

34752.W0702

d₁

M20

l₁

150

d₂

100

d₃

67

d₄

13

h₁

41

Static load max. kN

10.0

£ 45.91 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M20 - 200 - 41 - 100

34752.W0703

d₁

M20

l₁

200

d₂

100

d₃

67

d₄

13

h₁

41

Static load max. kN

10.0

£ 50.02 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M24 - 150 - 43 - 100

34752.W0740

d₁

M24

l₁

150

d₂

100

d₃

67

d₄

13

h₁

43

Static load max. kN

10.0

£ 53.30 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M24 - 200 - 43 - 100

34752.W0741

d₁

M24

l₁

200

d₂

100

d₃

67

d₄

13

h₁

43

Static load max. kN

10.0

£ 63.77 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 100 - 33 - 75

34752.W0662

d₁

M16

l₁

100

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 28.17 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 150 - 33 - 75

34752.W0663

d₁

M16

l₁

150

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 31.21 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 200 - 33 - 75

34752.W0664

d₁

M16

l₁

200

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 37.60 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 100 - 38 - 100

34752.W0665

d₁

M16

l₁

100

d₂

100

d₃

67

d₄

13

h₁

38

Static load max. kN

10.0

£ 33.81 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 150 - 38 - 100

34752.W0666

d₁

M16

l₁

150

d₂

100

d₃

67

d₄

13

h₁

38

Static load max. kN

10.0

£ 34.23 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M16 - 200 - 38 - 100

34752.W0667

d₁

M16

l₁

200

d₂

100

d₃

67

d₄

13

h₁

38

Static load max. kN

10.0

£ 41.92 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M20 - 150 - 33 - 75

34752.W0700

d₁

M20

l₁

150

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 41.59 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M20 - 200 - 33 - 75

34752.W0701

d₁

M20

l₁

200

d₂

75

d₃

52

d₄

13

h₁

33

Static load max. kN

7.5

£ 45.69 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M20 - 150 - 41 - 100

34752.W0702

d₁

M20

l₁

150

d₂

100

d₃

67

d₄

13

h₁

41

Static load max. kN

10.0

£ 45.91 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M20 - 200 - 41 - 100

34752.W0703

d₁

M20

l₁

200

d₂

100

d₃

67

d₄

13

h₁

41

Static load max. kN

10.0

£ 50.02 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M24 - 150 - 43 - 100

34752.W0740

d₁

M24

l₁

150

d₂

100

d₃

67

d₄

13

h₁

43

Static load max. kN

10.0

£ 53.30 per unit (click for quantity discounts)

Machine Mount - Bolt Down - SS. M24 - 200 - 43 - 100

34752.W0741

d₁

M24

l₁

200

d₂

100

d₃

67

d₄

13

h₁

43

Static load max. kN

10.0

£ 63.77 per unit (click for quantity discounts)



Select all

d₁

l₁

d₂

d₃

d₄

h₁

Static load max. kN

Price & Availability	Article	d1	l1	d2	d3	d4	h1	Static load max. kN
	34752.W0662	M16	100	75	52	13	33	7.5
£ 28.17 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 28.17 0% 5-9 £ 25.35 10% 10-19 £ 23.94 15% 20-49 £ 21.13 25% 50+ £ 18.31 35% d1 M16 l1 100 d2 75 d3 52 d4 13 h1 33 Static load max. kN 7.5 more info »
	34752.W0663	M16	150	75	52	13	33	7.5
£ 31.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 31.21 0% 5-9 £ 28.09 10% 10-19 £ 26.53 15% 20-49 £ 23.41 25% 50+ £ 20.29 35% d1 M16 l1 150 d2 75 d3 52 d4 13 h1 33 Static load max. kN 7.5 more info »
	34752.W0664	M16	200	75	52	13	33	7.5
£ 37.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 37.60 0% 5-9 £ 33.84 10% 10-19 £ 31.96 15% 20-49 £ 28.20 25% 50+ £ 24.44 35% d1 M16 l1 200 d2 75 d3 52 d4 13 h1 33 Static load max. kN 7.5 more info »
	34752.W0665	M16	100	100	67	13	38	10.0
£ 33.81 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 33.81 0% 5-9 £ 30.43 10% 10-19 £ 28.74 15% 20-49 £ 25.36 25% 50+ £ 21.98 35% d1 M16 l1 100 d2 100 d3 67 d4 13 h1 38 Static load max. kN 10.0 more info »
	34752.W0666	M16	150	100	67	13	38	10.0
£ 34.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 34.23 0% 5-9 £ 30.81 10% 10-19 £ 29.10 15% 20-49 £ 25.67 25% 50+ £ 22.25 35% d1 M16 l1 150 d2 100 d3 67 d4 13 h1 38 Static load max. kN 10.0 more info »
	34752.W0667	M16	200	100	67	13	38	10.0
£ 41.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 41.92 0% 5-9 £ 37.73 10% 10-19 £ 35.63 15% 20-49 £ 31.44 25% 50+ £ 27.25 35% d1 M16 l1 200 d2 100 d3 67 d4 13 h1 38 Static load max. kN 10.0 more info »
	34752.W0700	M20	150	75	52	13	33	7.5
£ 41.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 41.59 0% 5-9 £ 37.43 10% 10-19 £ 35.35 15% 20-49 £ 31.19 25% 50+ £ 27.03 35% d1 M20 l1 150 d2 75 d3 52 d4 13 h1 33 Static load max. kN 7.5 more info »
	34752.W0701	M20	200	75	52	13	33	7.5
£ 45.69 per unit (click for quantity discounts) Ready to despatch 14 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 45.69 0% 5-9 £ 41.12 10% 10-19 £ 38.84 15% 20-49 £ 34.27 25% 50+ £ 29.70 35% d1 M20 l1 200 d2 75 d3 52 d4 13 h1 33 Static load max. kN 7.5 more info »
	34752.W0702	M20	150	100	67	13	41	10.0
£ 45.91 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 45.91 0% 5-9 £ 41.32 10% 10-19 £ 39.02 15% 20-49 £ 34.43 25% 50+ £ 29.84 35% d1 M20 l1 150 d2 100 d3 67 d4 13 h1 41 Static load max. kN 10.0 more info »
	34752.W0703	M20	200	100	67	13	41	10.0
£ 50.02 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.02 0% 5-9 £ 45.02 10% 10-19 £ 42.52 15% 20-49 £ 37.52 25% 50+ £ 32.51 35% d1 M20 l1 200 d2 100 d3 67 d4 13 h1 41 Static load max. kN 10.0 more info »
	34752.W0740	M24	150	100	67	13	43	10.0
£ 53.30 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.30 0% 5-9 £ 47.97 10% 10-19 £ 45.31 15% 20-49 £ 39.98 25% 50+ £ 34.65 35% d1 M24 l1 150 d2 100 d3 67 d4 13 h1 43 Static load max. kN 10.0 more info »
	34752.W0741	M24	200	100	67	13	43	10.0
£ 63.77 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 63.77 0% 5-9 £ 57.39 10% 10-19 £ 54.20 15% 20-49 £ 47.83 25% 50+ £ 41.45 35% d1 M24 l1 200 d2 100 d3 67 d4 13 h1 43 Static load max. kN 10.0 more info »
