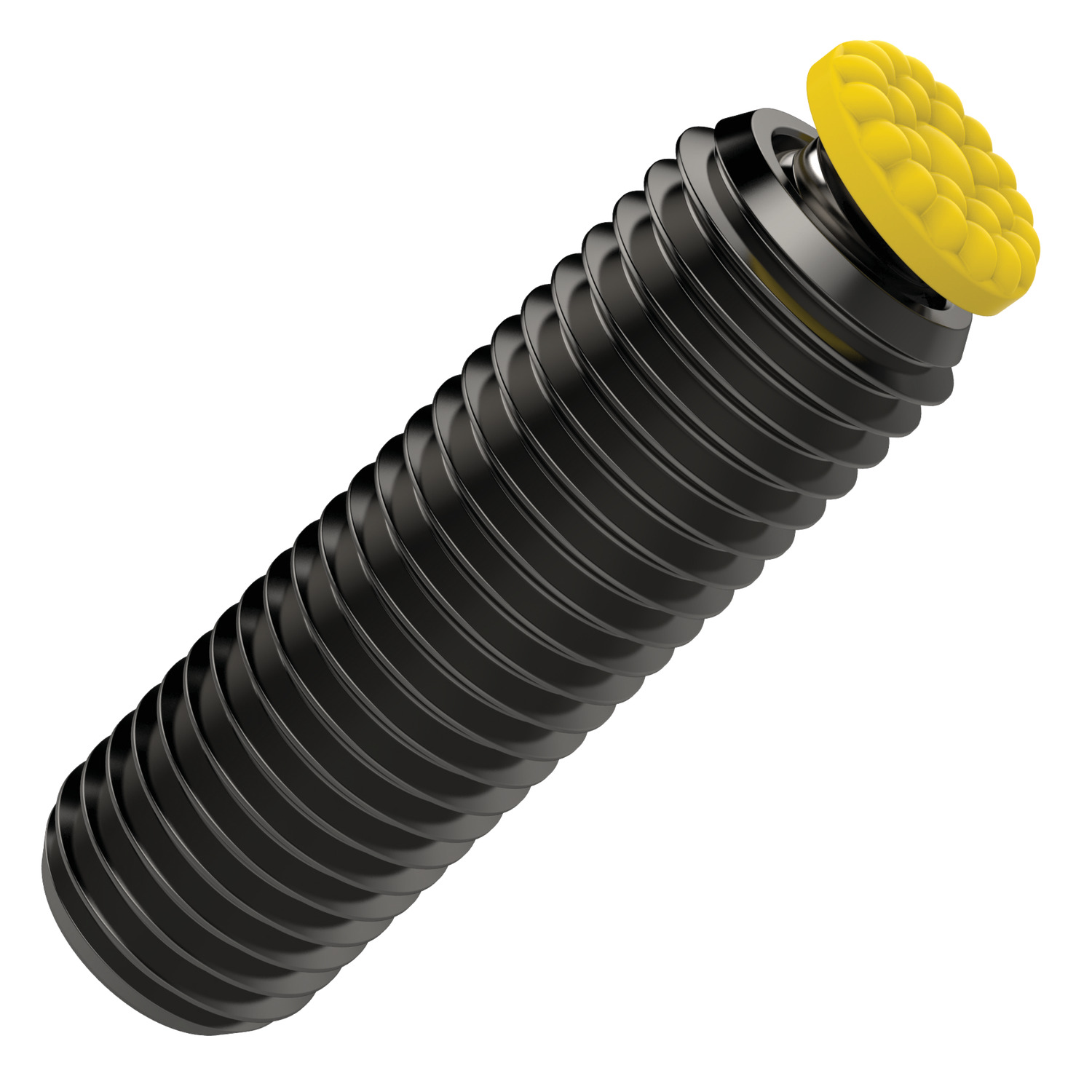

Gripping Pad
urethane coated - round
35624 Grippers - Self Aligning
set screw - urethane coated, material: Alloy
Order No.
35624.W6203

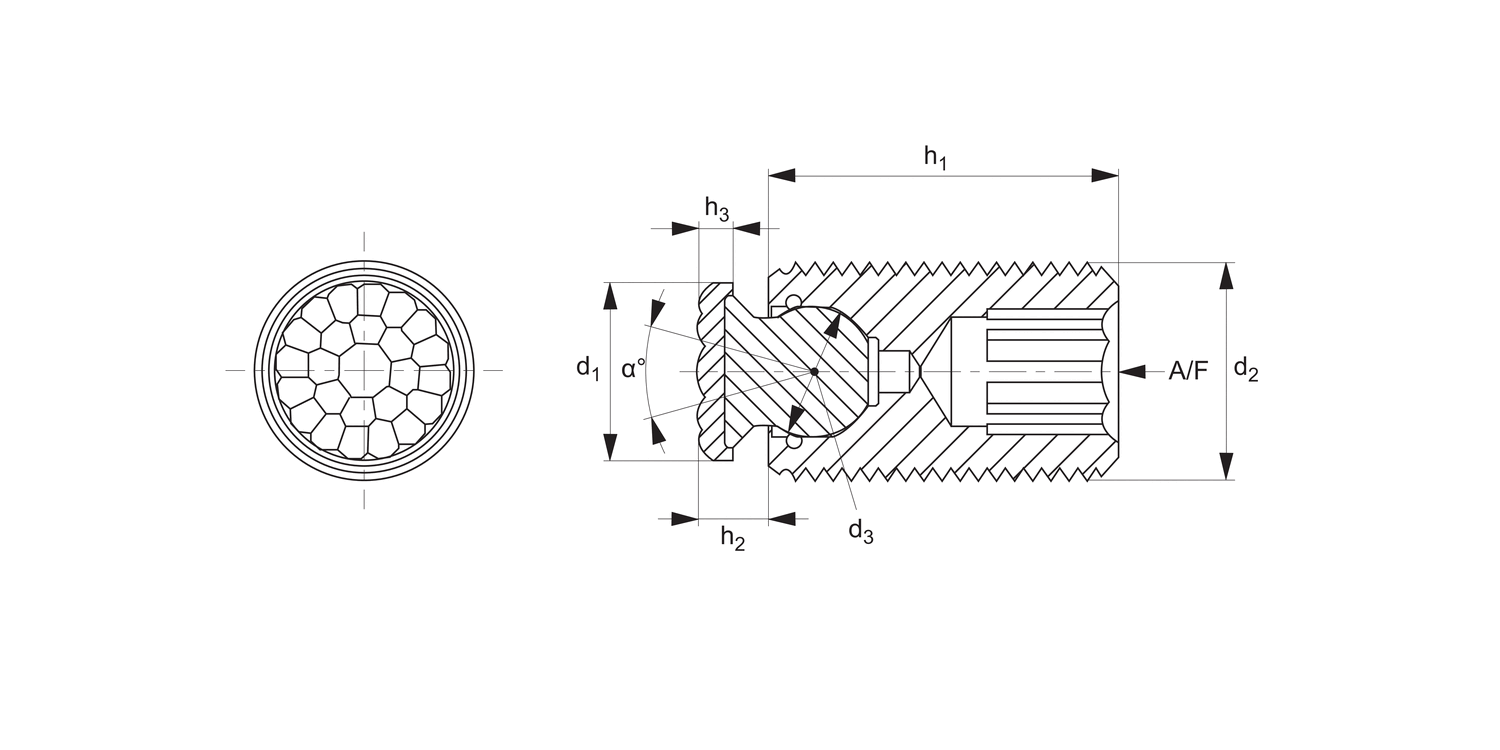

d1
16
d2
M20x2,5
d3
13
h1
70
h2
5.0
h3
2
A/F
10
Durometer
60
Swivel angle a
°
28
Load compression
kg
63
£ 99.45 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 99.45 | 0% |
| 10-14 | £ 89.51 | 10% |
| 15-24 | £ 84.53 | 15% |
| 25-49 | £ 79.56 | 20% |
| 50+ | £ 69.62 | 30% |
Technical & Application
Material
Housing body: alloy steel, heat treated to HRc 43-46, black oxide finish.
Pad: urethane, bonded to AISI 300 series stainless steel ball.
Technical Notes
Available in three different durometers: 35, 60 & 80 (see table).
Bubbled texture of urethane pad allows air to escape so avoiding any suction action.
Tips
Re-seating: expel air by using 0,3 monofilament line between ball and housing, remove line when seated correctly.
Important Notes
Load compression ratings based on load required to compress urethane surface 0,812mm for 2mm thick pad. Compression ratings vary greatly depending upon temperature and other application-specific factors.
