Rest Pads
round - rear fixing
35980 Rest Pads - Steel and Thermoplastic
round - rear fixing, material: Steel or thermoplastic
Order No.
35980.W0008
Material
Steel
d1
+0.00|-0.13
20
d2
M 6x1,0
h1
12
l1
6.4
£ 13.40 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 13.40 | 0% |
| 10-14 | £ 12.06 | 10% |
| 15-24 | £ 11.39 | 15% |
| 25-49 | £ 10.72 | 20% |
| 50+ | £ 9.38 | 30% |
Technical & Application
Material
Steel (AISI 8620), hardened to HRc 58-60, black oxide finish.
Thermoplastic, white.
Technical Notes
Can be used as rest pads, stops, supports etc in jigs and fixtures.
h1 = tol. of steel ±0,03, tol., for thermoplastic +0,00 -0,13.
Tips

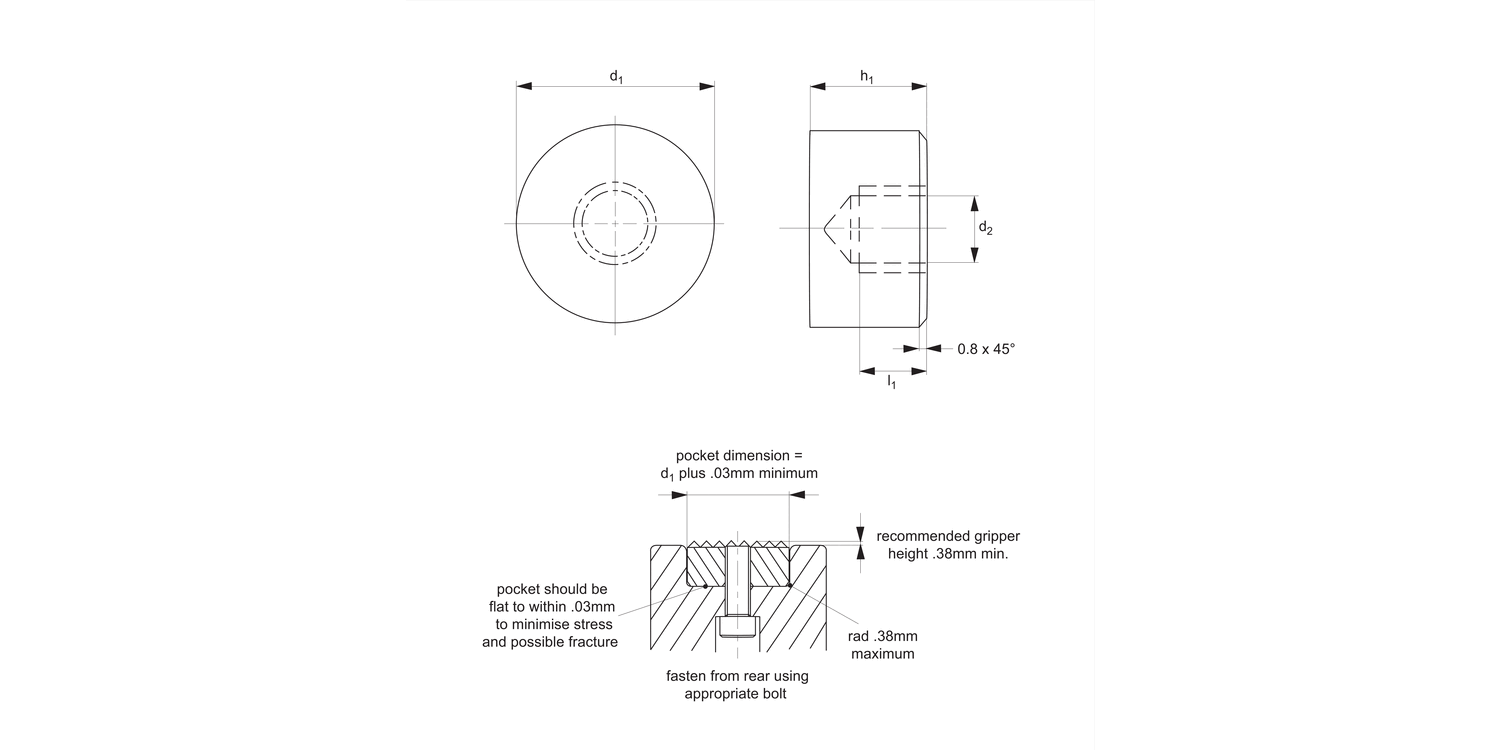

Can be fastened from rear using appropriate bolt or alternatively via use of a differential screw. Note installation recommendations in technical diagram.
