Locating Pins
locating & seating

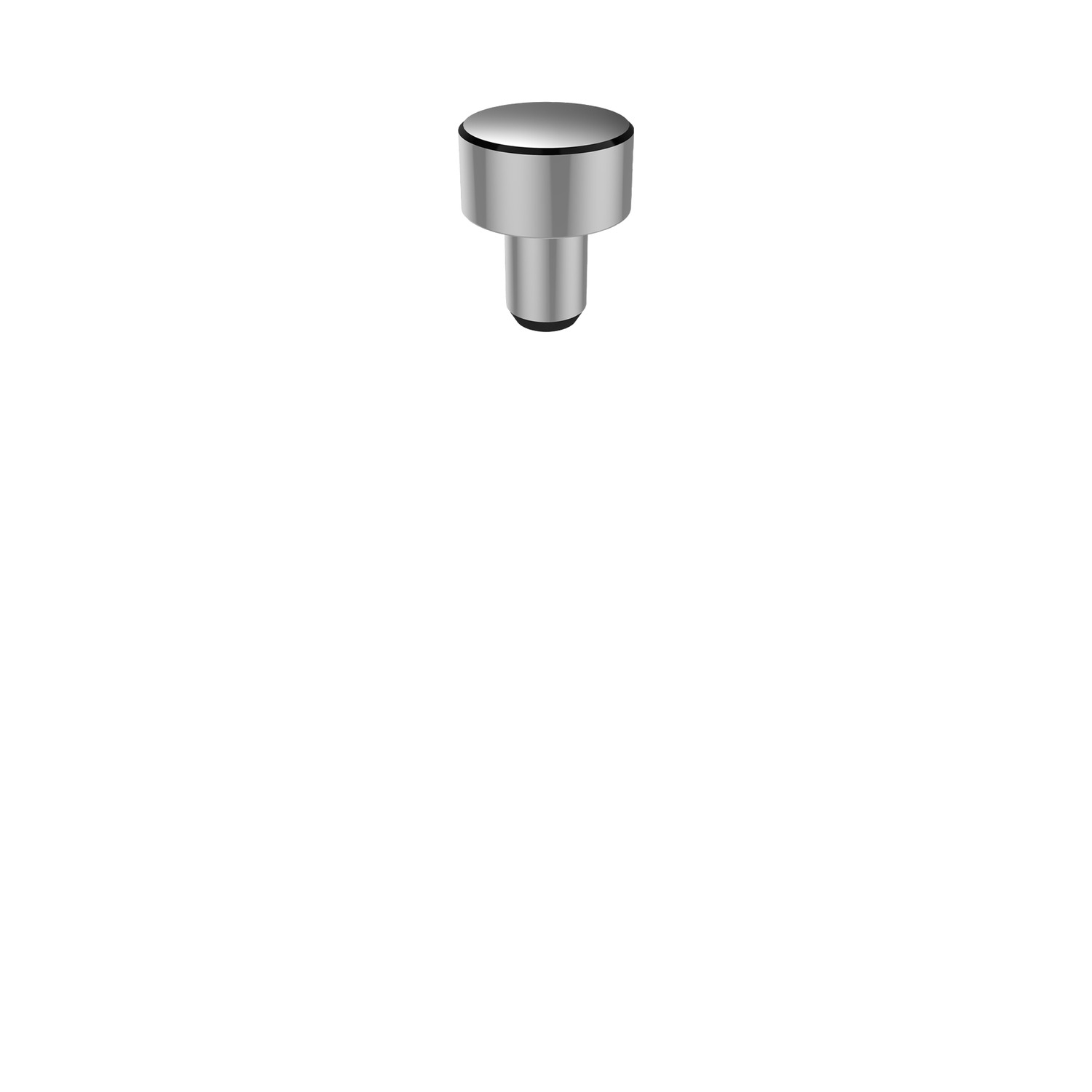

36220 Locating and Seating Pins
material: Steel
Order No.
36220.W0053
Size
Long
Type
Diamond locating pin
d1
tol. g6
25
l1
25
d2
tol. n6
12
l2
18
l3
9
w1
5.0
Weight
g
72
£ 39.33 per unit (click for quantity discounts)
Ready to despatch 4
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 39.33 | 0% |
| 10-19 | £ 35.40 | 10% |
| 20-49 | £ 33.43 | 15% |
| 50-99 | £ 31.46 | 20% |
| 100+ | £ 27.53 | 30% |
Technical & Application
Material
Tool steel, hardened, ground. Bearing surface without centre.
Technical Notes
Produced to DIN 6321.

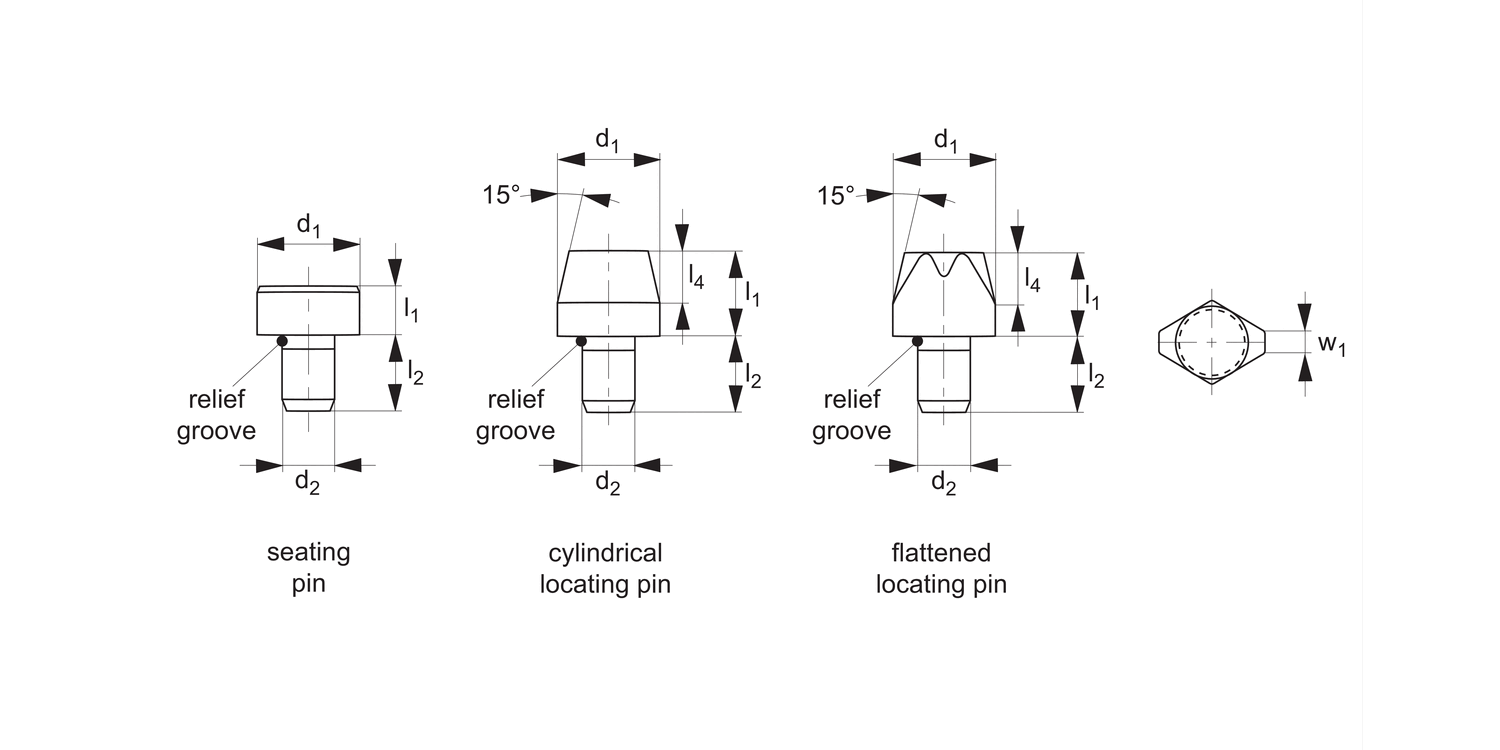

Cylindrical locating pins serve to locate workpieces and fixture elements into toleranced holes. The flattened locating pin can be used to overcome differences in tolerances, between holes or to position an element in one direction only.
Standard seating pins 36220.W0011 to .W0014 only, have tolerance h9 on dimension l1, and can act as bearing surfaces for tools and jigs.
Tips
Suggested hole tolerance for shaft d2, is a hole to H7.
For standard type length tolerance is h<9, for all other types length tolerance is ±0,1.
Product Datasheets
CAD files
Application images
