Locating Pins
locating & seating

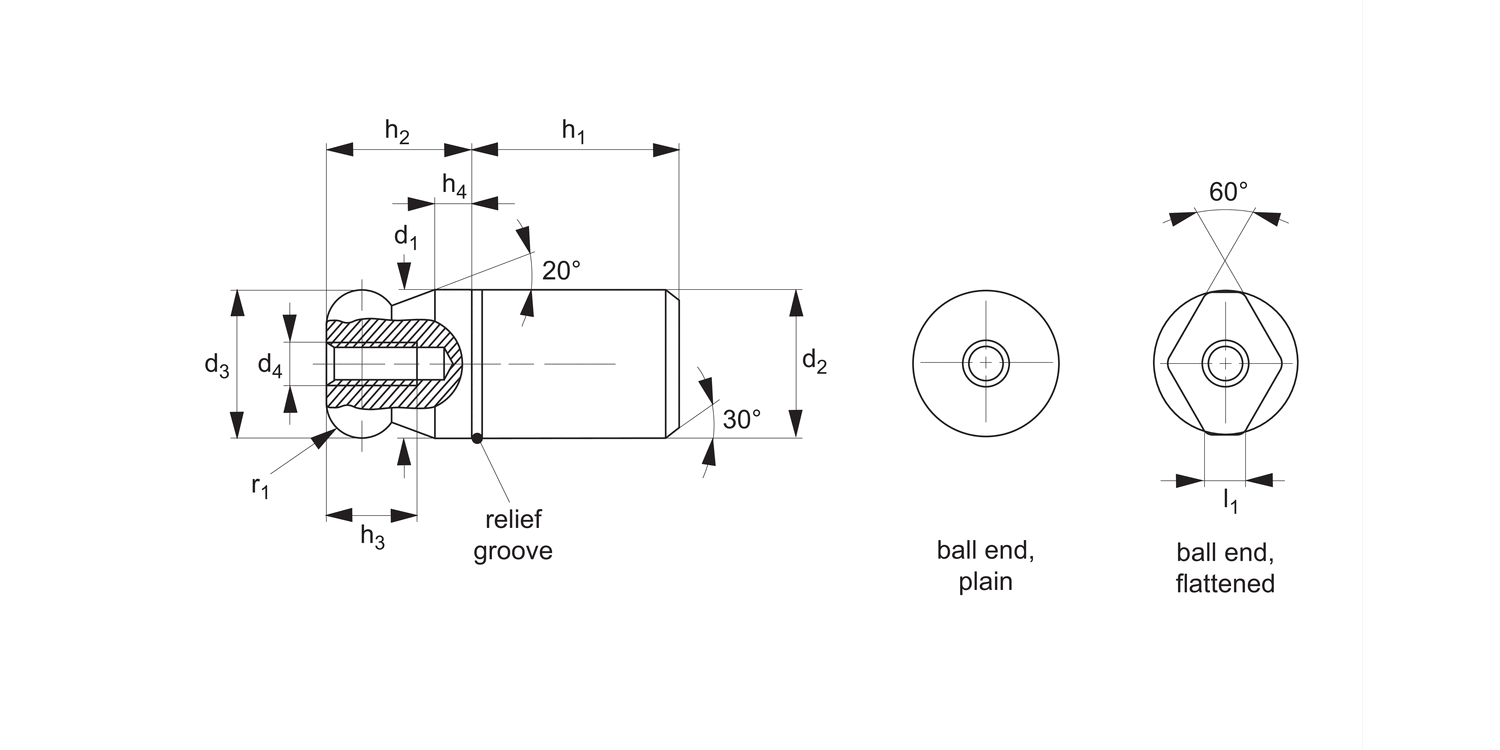

36341 Location Pins - Non-Stepped
ball end, material: Tool steel or stainless steel
Order No.
36341.W0508
Type
Plain
Material
Steel
d1
tol. g6
8
l1
-
d2
tol. n6
8
d3
-0.01|-0.05
8
d4
M 3
h1
10
h2
8
h3
6
h4
2.0
r1
2.0
Weight
g
6
£ 36.96 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 36.96 | 0% |
| 5-9 | £ 35.11 | 5% |
| 10-19 | £ 33.26 | 10% |
| 20-49 | £ 31.42 | 15% |
| 50+ | £ 27.72 | 25% |
Technical & Application
Material
Steel type:
Tool steel, hardened, ground, blackened.
Stainless steel type:
Stainless steel 1.4305 (AISI 303), ground, surface heat-treated.
Technical Notes
Ball ended straight pins facilitate inserting workpieces and avoid clamping inclination.
Suggested installation is a hole = d2 H7 tolerance.
