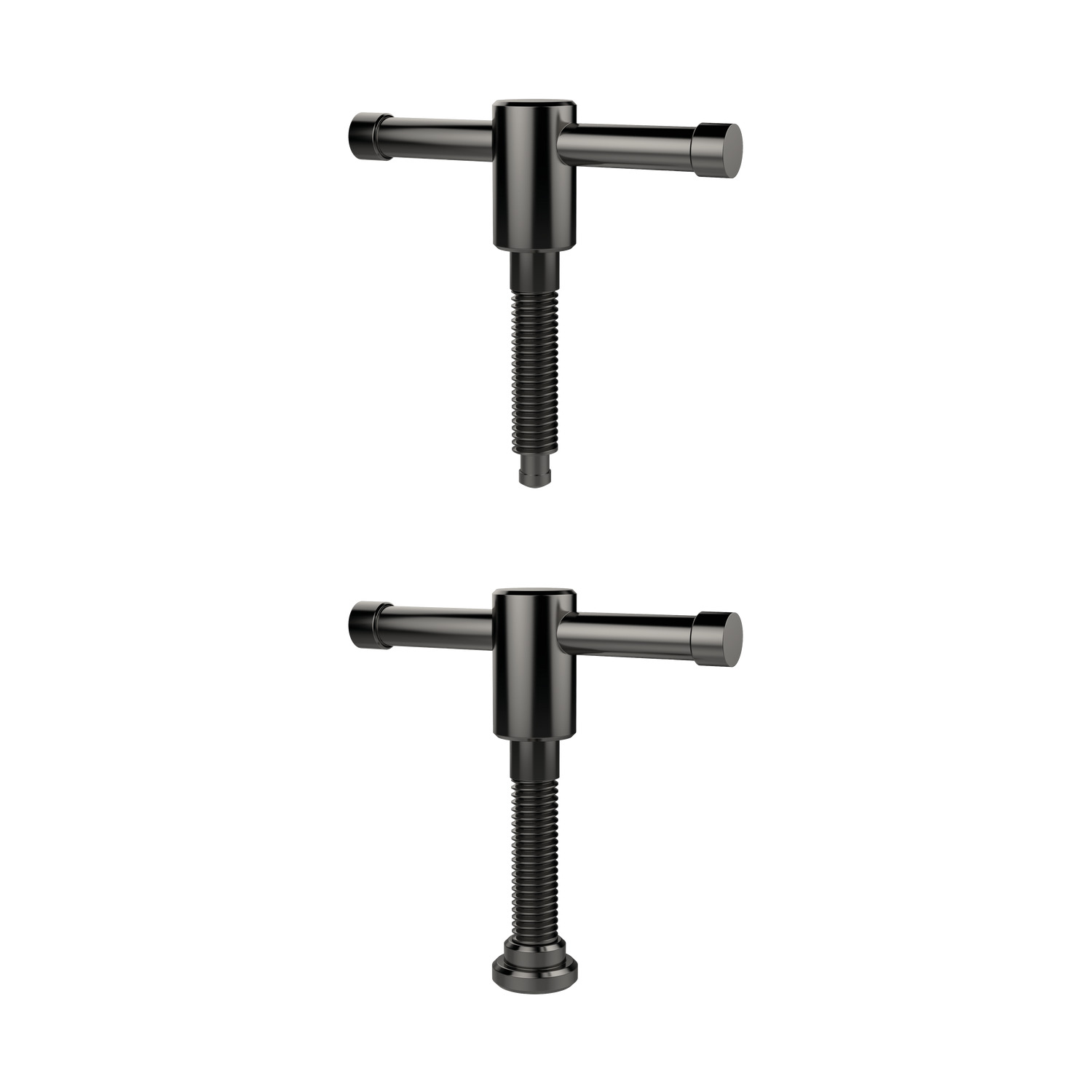

38100 Tommy Screws

Name: 38100.W0018
Brand: WC
SKU: 38100.W0018
Price: 37.07 EUR
Availability: OutOfStock

with moveable bar - DIN 6306, material: Steel

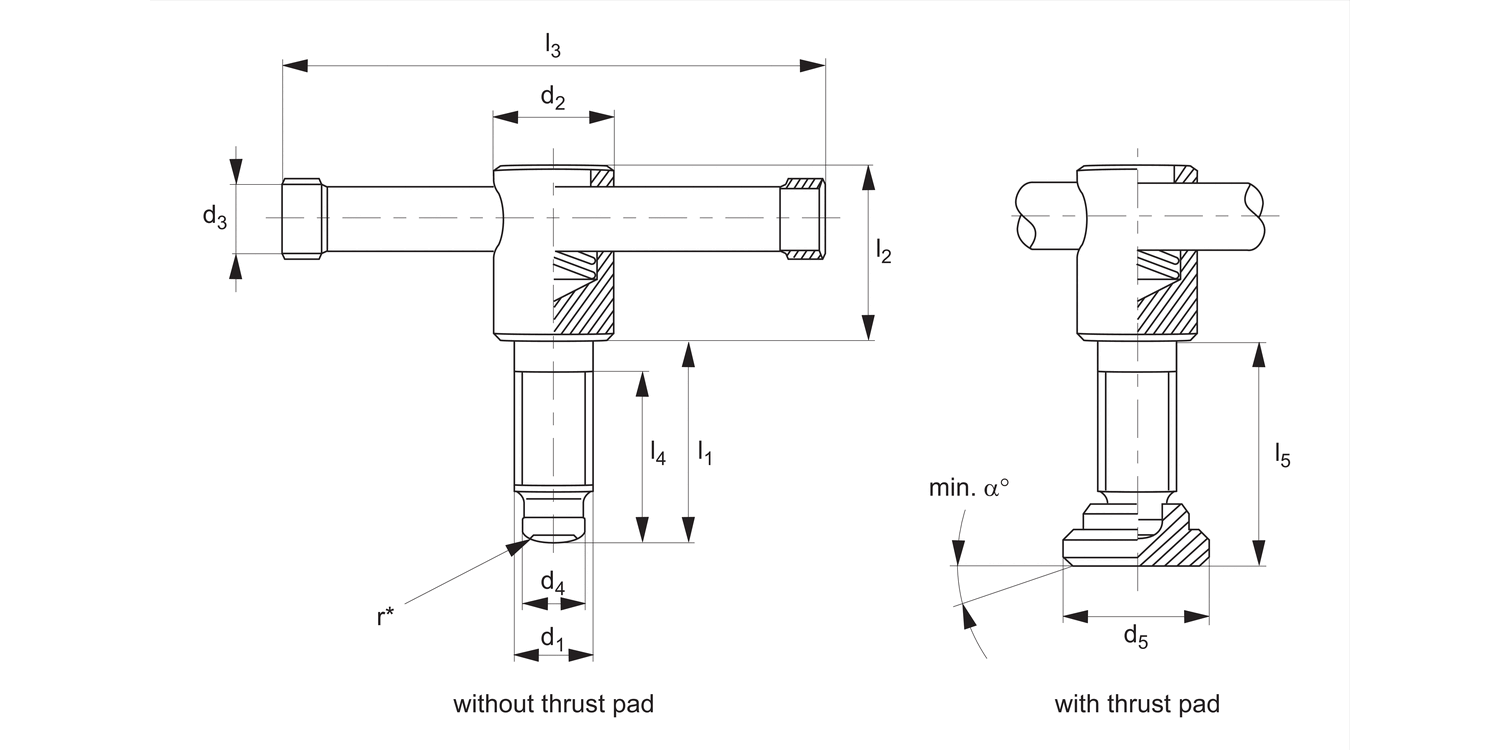

Article properties

Order No.

38100.W0018

Thrust pad

W/o Pad

d₁

M16

l₁

d₂

d₃

d₄

12.0

d₅

l₂

l₃

120

l₄

l₅ ≈

α min. °

Type

w/o Thrust Pad

Weight with pad g

345

See full product selection

£ 37.07 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 37.07	0%
5-9	£ 35.22	5%
10-19	£ 33.36	10%
20-49	£ 31.51	15%
50+	£ 27.80	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Free-cutting steel, black. Turned, pressure lug hardened, with moveable pin retained by spring.

Technical Notes

To ease assembly minor radius (r*) added outside of DIN standard.

Product Datasheets

38100 Tommy ScrewsJune 24, 2025, 3:43 PM / 229.22 kB

Tommy Screws & NutsJune 24, 2025, 3:30 PM / 218.62 kB

Thumb ScrewsJune 24, 2025, 3:31 PM / 2.11 MB

Thumb, Captive & Sealing ScrewsJune 24, 2025, 3:32 PM / 10.20 MB

Design ElementsJune 24, 2025, 3:33 PM / 69.38 MB

CAD files

38100 AcisApril 17, 2024, 9:44 AM / 1.71 MB

38100 IGESApril 17, 2024, 9:44 AM / 2.62 MB

38100 ParasolidApril 17, 2024, 9:44 AM / 456.87 kB

38100 ProEApril 17, 2024, 9:44 AM / 9.42 MB

38100 SolidWorksApril 17, 2024, 9:44 AM / 4.19 MB

38100 StepApril 17, 2024, 9:44 AM / 1.50 MB
