Toggle Clamps
hook type - stainless steel

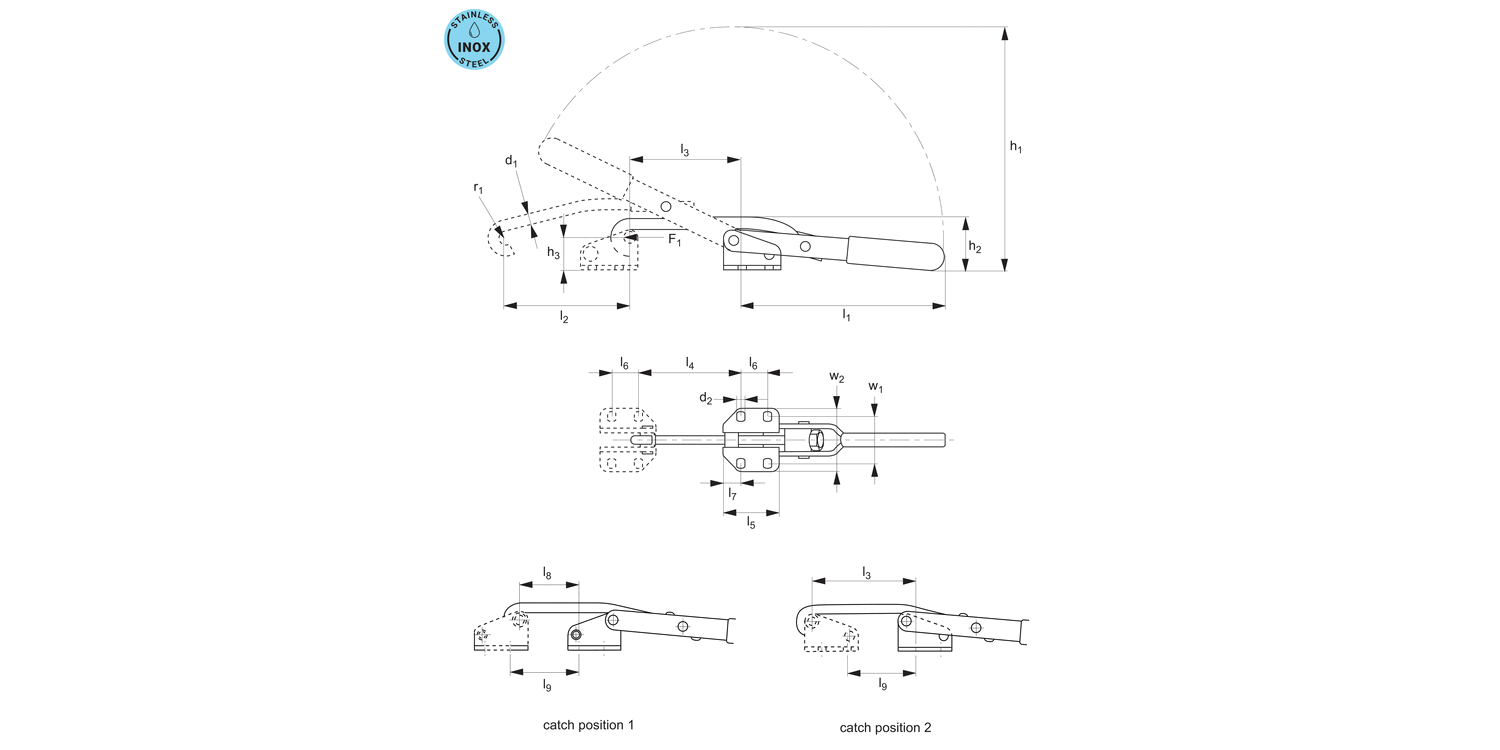

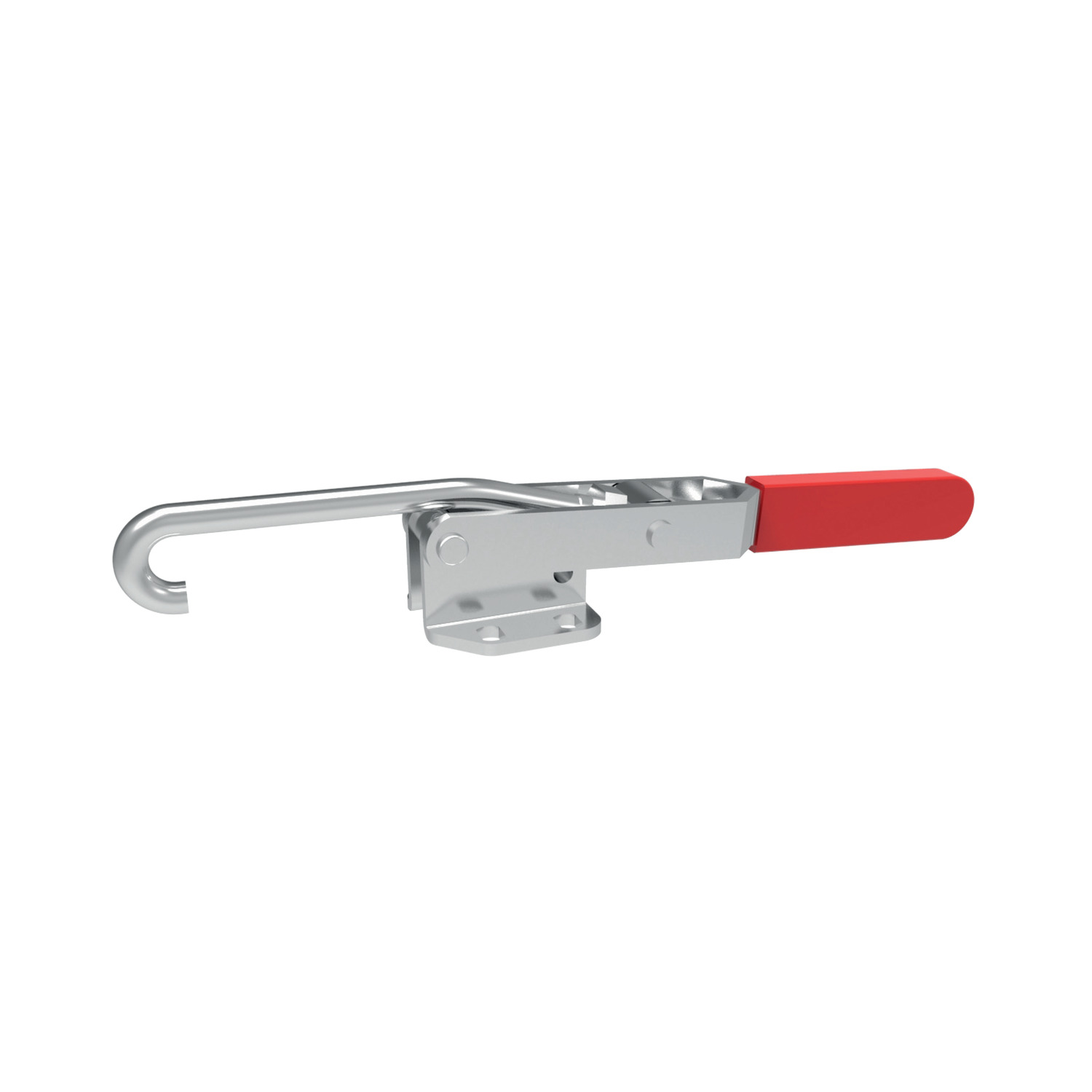

41700.4 Hook Type Toggle Clamps
stainless steel, material: Stainless steel
Order No.
41700.W0303
Size
3
F1
kN
1.5
h1
179
h2
36.5
h3
22.7
l1
148
l2
97
l3
65,5-77,0
l4
72,5-84,0
Weight
g
270
l5
40
l6
19
l7
13
l8
39,5-50,5
l9
32,5-44,0
w1
45
w2
31,0-36,0
d1
8
d2
5.6
r1
5.5
Adj. distance
12
£ 120.87 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 120.87 | 0% |
| 10-14 | £ 108.78 | 10% |
| 15-24 | £ 102.74 | 15% |
| 25-49 | £ 96.70 | 20% |
| 50+ | £ 84.61 | 30% |
Technical & Application
Material
Body: stainless steel (AISI 304, 1.4301). Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings.
Handle: oil-resistant plastic with large grip area.
Technical Notes
For counter strike see part no. 41740.W0011- .W0015.
The length of the hook is adjustable by rotating the threaded hook to extend or contract its reach.
Temperature range -10°C to +80°C.
Suitable for food industry.
