Toggle Clamps
hook type

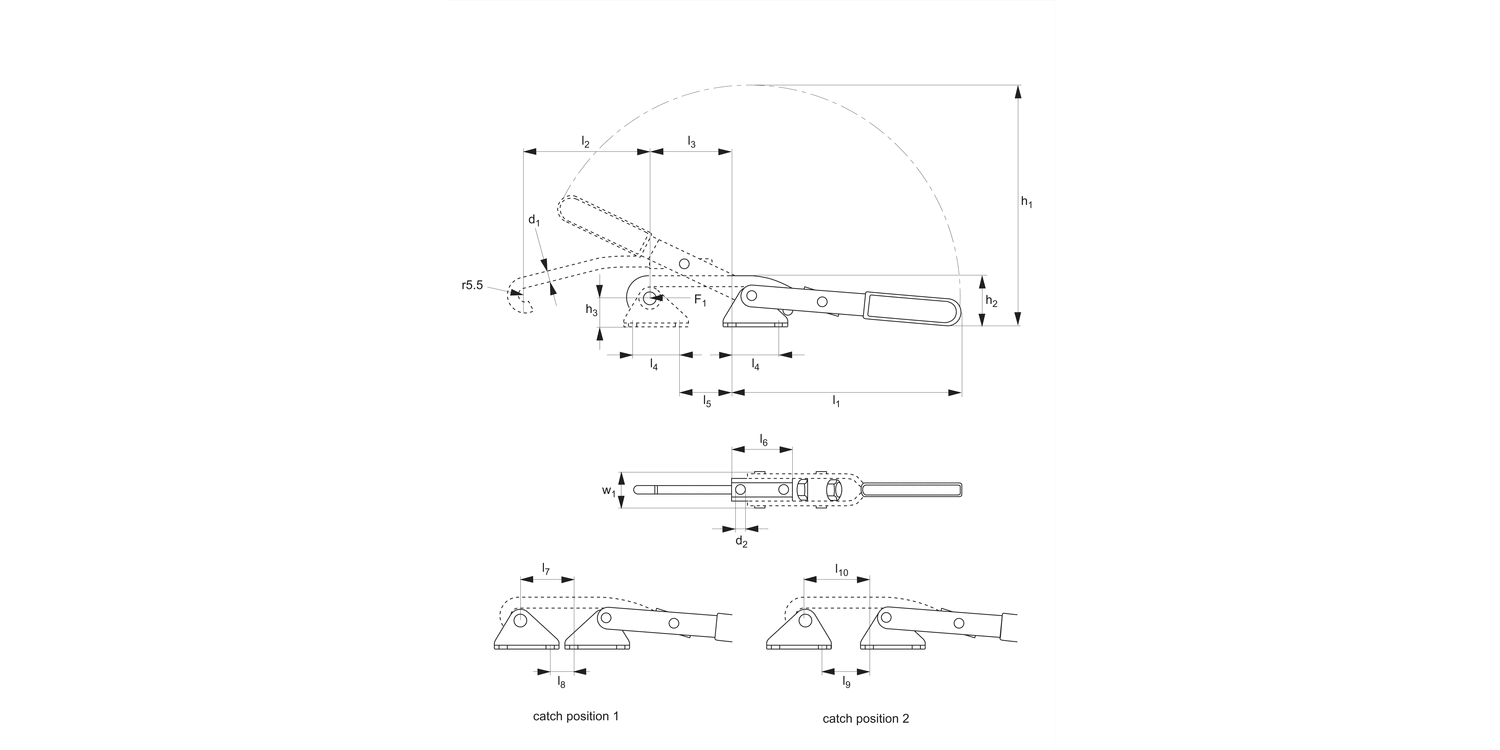

41781.1 Hook Type Toggle Clamp
narrow base, material: Steel, zinc plated
Order No.
41781.W0003
Size
3
F1
kN
3
h1
179
d1
7.1
d2
6.5
h2
36
h3
23
l1
170
l2
99
Weight
g
270
l3
44-56
l4
38
l5
20-32
l6
52
l7
38-46
l8
14-22
l9
30-42
l10
44-56
w1
27
Adj. distance
22
£ 60.80 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 60.80 | 0% |
| 5-14 | £ 54.72 | 10% |
| 15-24 | £ 51.68 | 15% |
| 25+ | £ 48.64 | 20% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Handle: oil-resistant plastic with large grip area.
Technical Notes
Suitable for use as a toggle type fastener for the lids or covers of fixed or rotating drums and containers.
Their narrow base makes them ideal for applications where space is limited but holding forces must not be compromised.
The length of the hook is adjustable, up to 22mm. Adjustment is made by rotating the threaded hook to extend or contract its reach.
Temperature range -10°C to +80°C.
Tips
See part no. 41791.W0013 for strike catch.
For stainless steel version see part no. 41781.W0303.
