Toggle Clamps
hook type

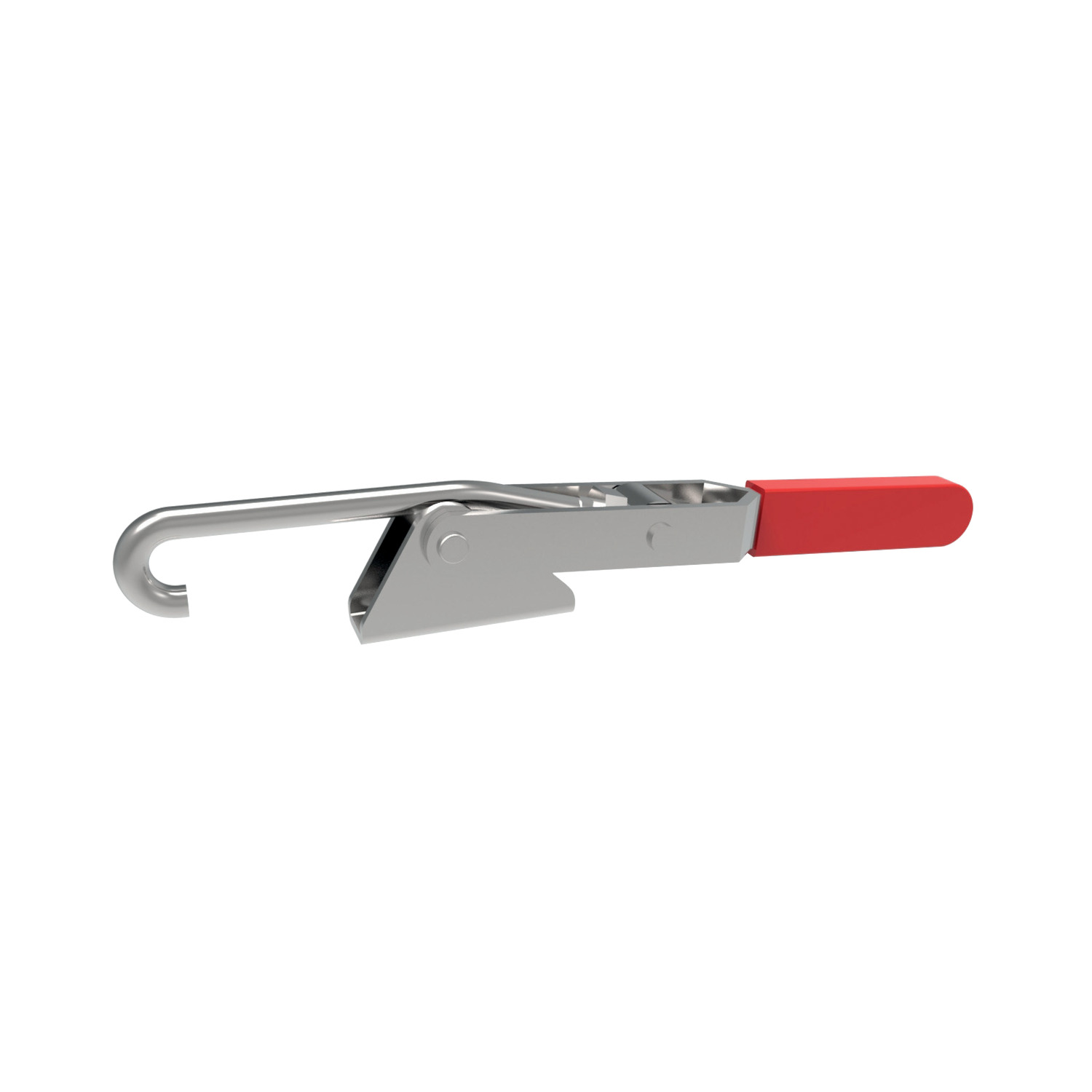

41781.1 Hook Type Toggle Clamp
narrow base, material: Steel, zinc plated
Alternative products you may wish to consider
Size
F1
kN
h1
d1
d2
h2
h3
l1
l2
| Price & Availability | Article | Size | F1 kN | h1 | d1 | d2 | h2 | h3 | l1 | l2 | |||||||||||||||
| 41781.W0003 | 3 | 3 | 179 | 7.1 | 6.5 | 36 | 23 | 170 | 99 | ||||||||||||||||
£ 60.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 3 F1
kN 3 h1 179 d1 7.1 d2 6.5 h2 36 h3 23 l1 170 l2 99 | |||||||||||||||||||||||||
Weight
g
l3
l4
l5
l6
l7
l8
l9
l10
w1
Adj. distance
| Price & Availability | Article | Weight g | l3 | l4 | l5 | l6 | l7 | l8 | l9 | l10 | w1 | Adj. distance | |||||||||||||||
| 41781.W0003 | 270 | 44-56 | 38 | 20-32 | 52 | 38-46 | 14-22 | 30-42 | 44-56 | 27 | 22 | ||||||||||||||||
£ 60.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 270 l3 44-56 l4 38 l5 20-32 l6 52 l7 38-46 l8 14-22 l9 30-42 l10 44-56 w1 27 Adj. distance 22 | |||||||||||||||||||||||||||
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Handle: oil-resistant plastic with large grip area.
Technical Notes
Suitable for use as a toggle type fastener for the lids or covers of fixed or rotating drums and containers.
Their narrow base makes them ideal for applications where space is limited but holding forces must not be compromised.
The length of the hook is adjustable, up to 22mm. Adjustment is made by rotating the threaded hook to extend or contract its reach.
Temperature range -10°C to +80°C.
Tips

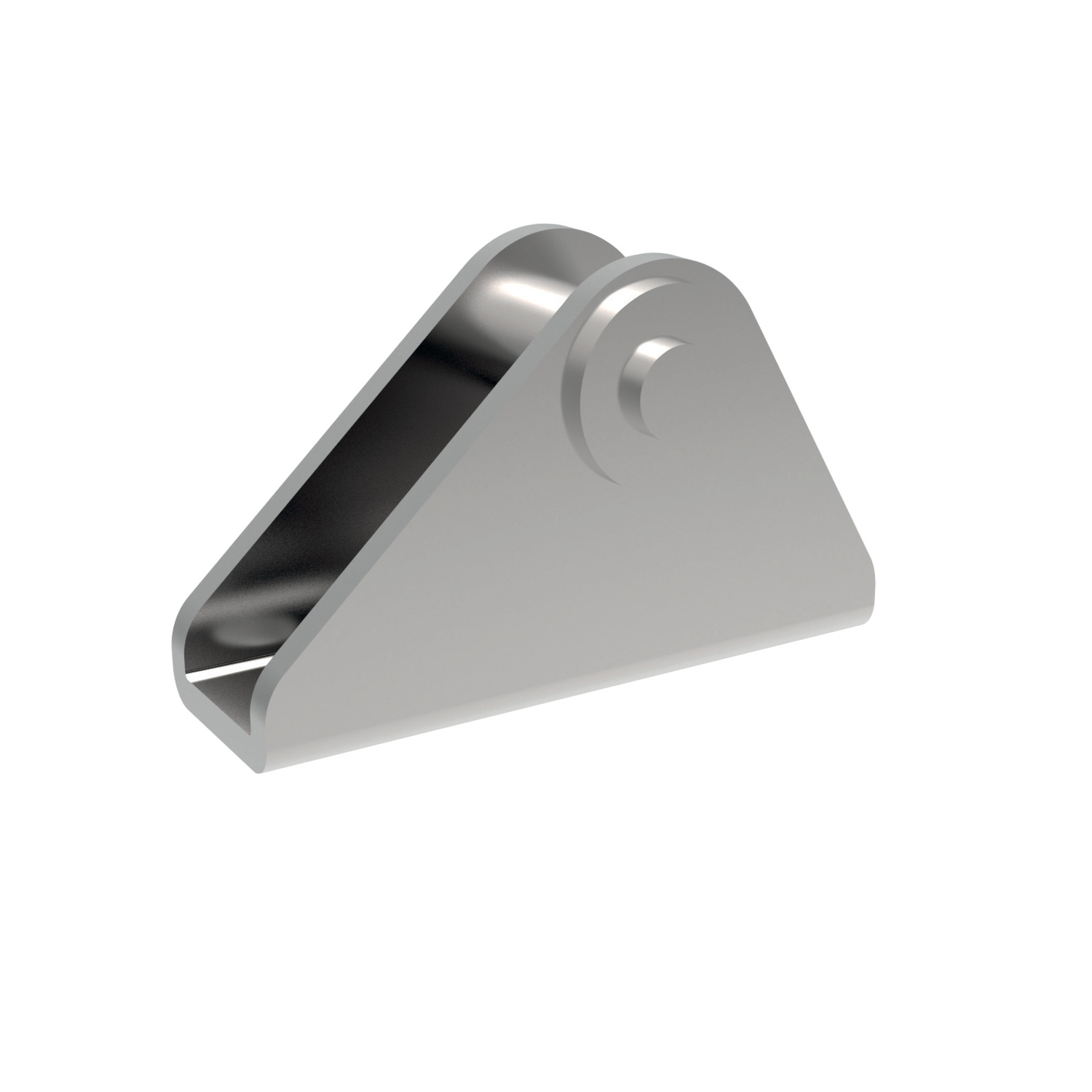

See part no. 41791.W0013 for strike catch.
For stainless steel version see part no. 41781.W0303.
