Toggle Clamps
hook type

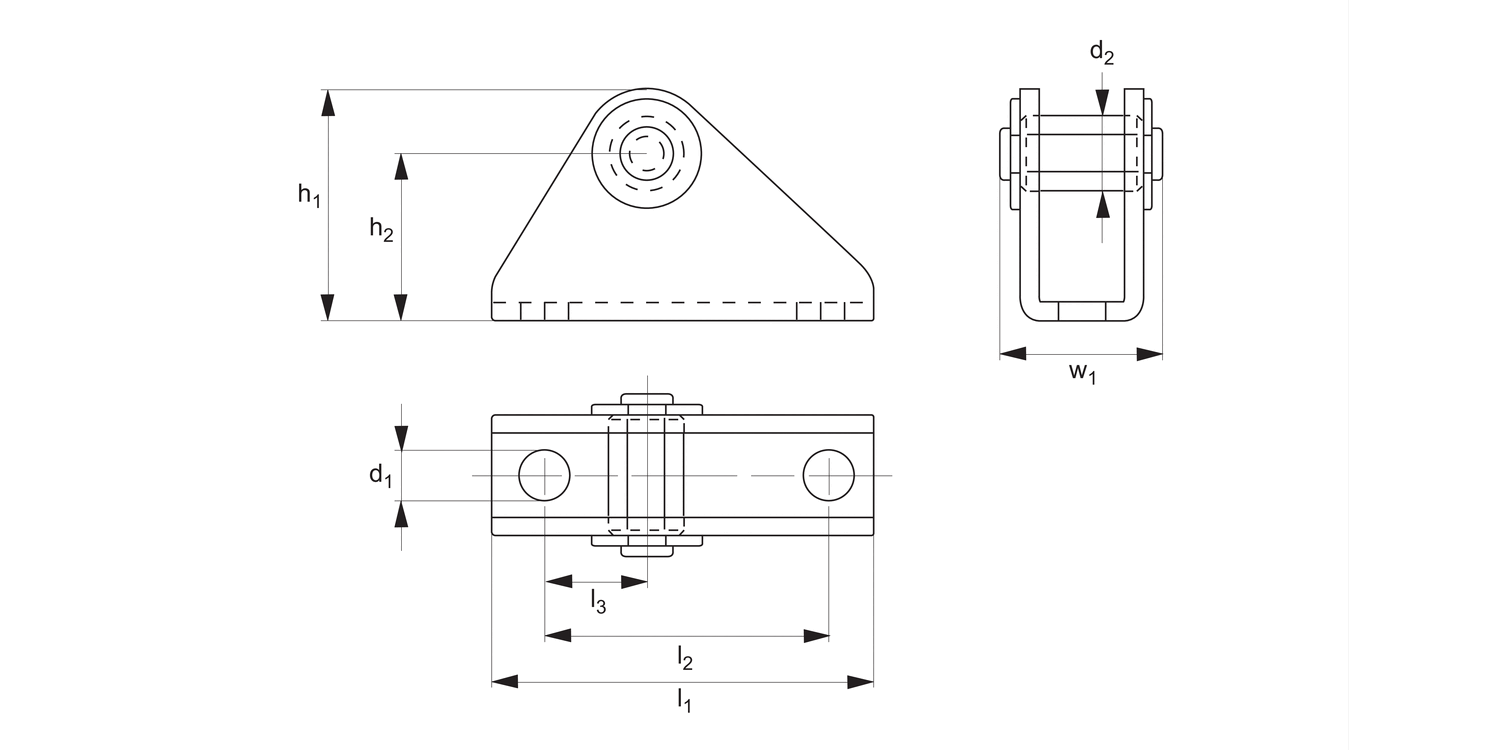

41791.1 Fixed Catch - Narrow
for part no. 41781.W0003, material: Steel, zinc plated
Order No.
41791.W0013
Size
3
h1
32
d1
6.5
d2
10
h2
23
l1
52
l2
38
l3
14
w1
22
Weight
g
65
£ 27.94 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 27.94 | 0% |
| 10-14 | £ 25.15 | 10% |
| 15-24 | £ 23.75 | 15% |
| 25-49 | £ 22.35 | 20% |
| 50+ | £ 19.56 | 30% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes.
Technical Notes
The adjustment range of the clamp can be altered by rotating the fixed catch.
Use socket cap screws for mounting.
