Toggle Clamps
latch type - horizontal

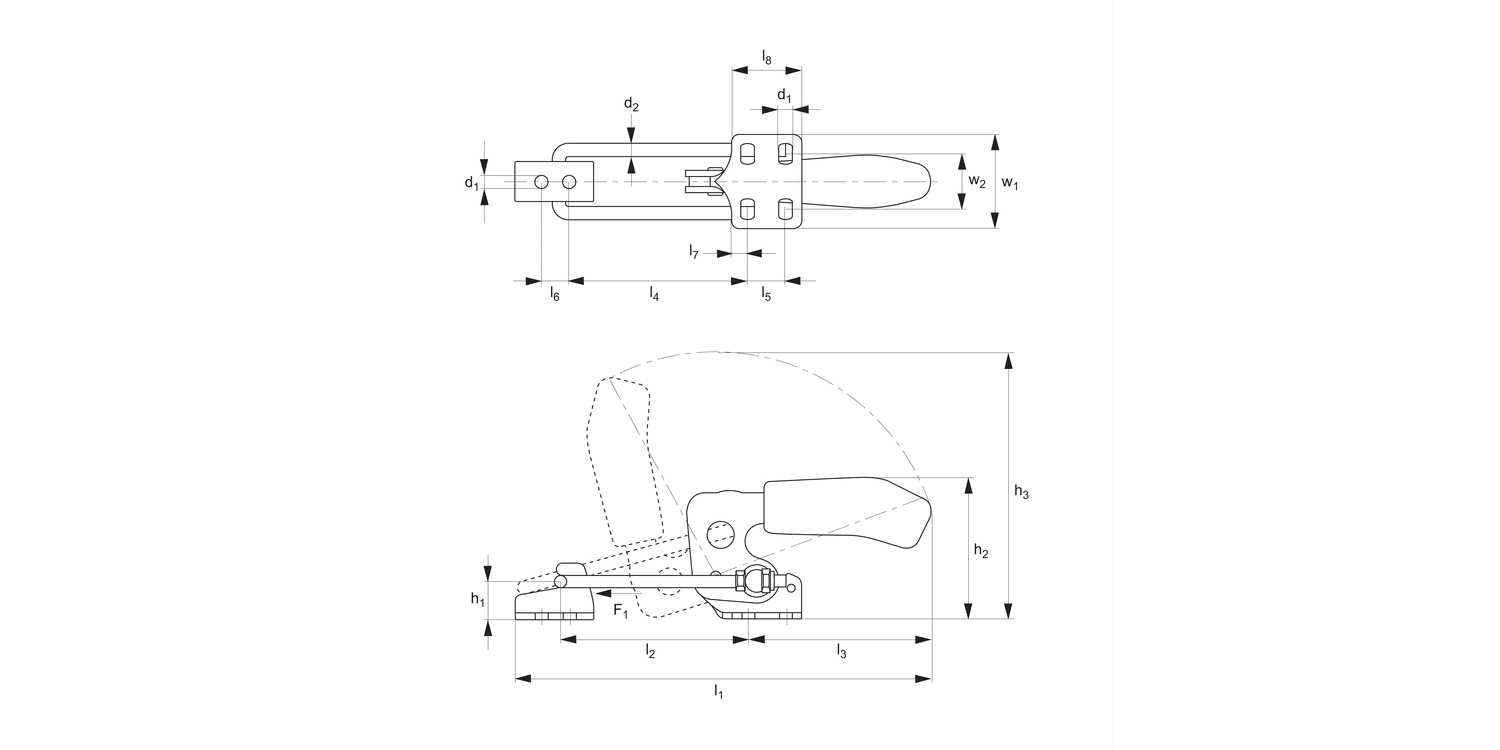

41801.1 Latch Type Toggle Clamps
horizontal acting, material: Steel, zinc plated
Order No.
41801.W0003
Size
3
F1
kN
3.2
h1
19
h2
70.0
l1
min.
169
l1
max.
216
l2
min.
53.5
l2
max.
101
h3
136
Weight
g
330
l3
93
l4
min.
48.6
l4
max.
96
l5
19
l6
14
l7
8.0
l8
35.0
w1
48.0
w2
24,5-32,0
d1
6.5
d2
6
£ 69.08 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 69.08 | 0% |
| 5-14 | £ 62.17 | 10% |
| 15-24 | £ 58.72 | 15% |
| 25+ | £ 55.26 | 20% |
Technical & Application
Material
Body: steel, zinc-plated. Stainless steel rivets running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel, oil-resistant handle with large grip area.
Hook: steel, tempered.
Complete with counter strike.
Technical Notes
Temperature range -10°C to +80°C.
Tips
For stainless steel version see part no. 41811.
