Toggle Clamps
push-pull type - compact

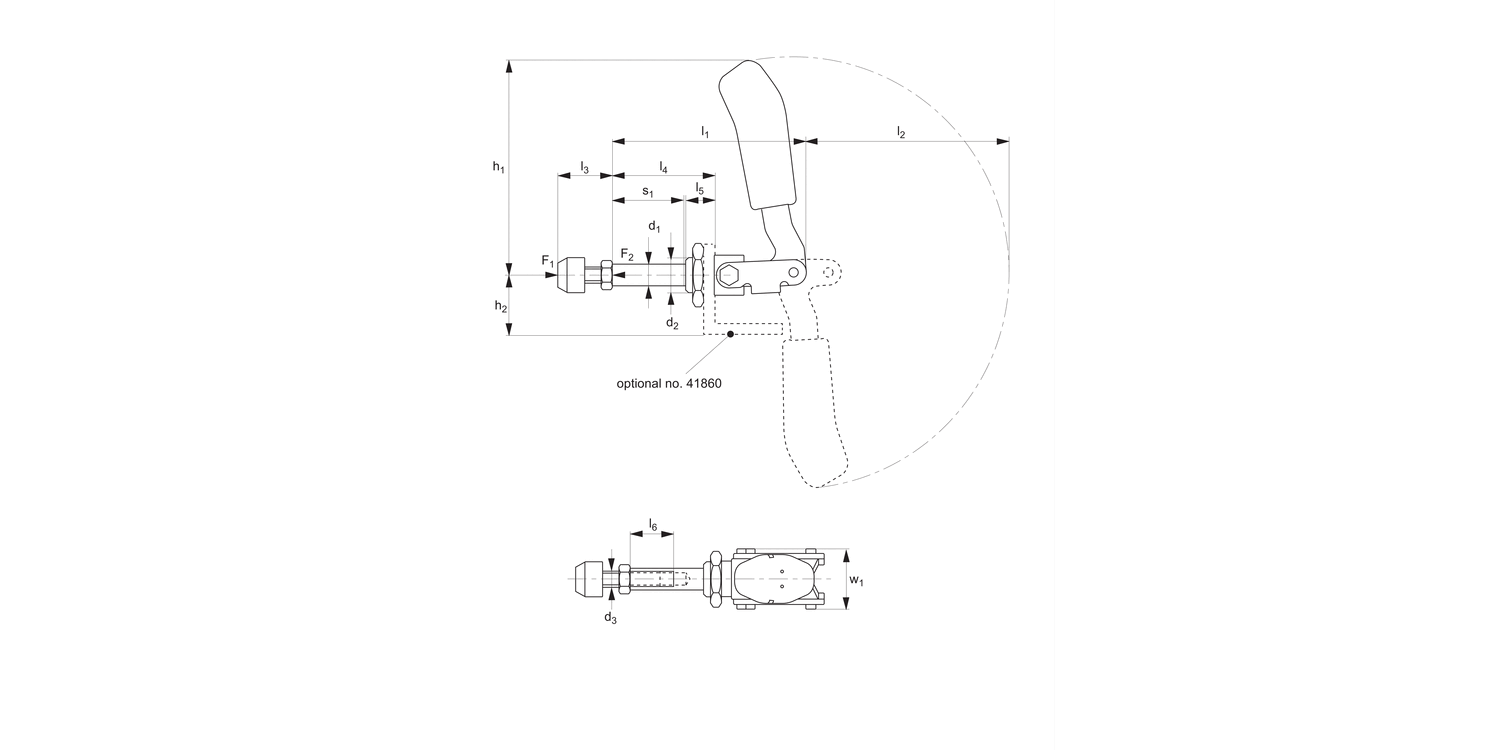

41840.1 Push-Pull Toggle Clamps
compact version, material: Steel, zinc plated
Order No.
41840.W0002
Size
2
Clamping screw
M 6x25
F1
kN
1.0
F2
kN
1.0
d1
10
d2
M16x1,5
d3
M 6
h1
73
h2
24
Weight
g
130
l1
68.5
l2
68
l3
min.
17
l3
max.
25
l4
36
l5
13
l6
15
w1
30.5
Stroke s1
21.5
£ 57.68 per unit (click for quantity discounts)
Ready to despatch 6
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 57.68 | 0% |
| 5-14 | £ 51.91 | 10% |
| 15-24 | £ 49.03 | 15% |
| 25+ | £ 46.14 | 20% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw (with rubber pad).
Technical Notes
Compact construction with long travel.
Temperature range -10°C to +80°C.
Tips
For stainless steel version see part no. 41840.W0002- .W0005.
