Toggle Clamps
push-pull type - compact
42000.1 Push-Pull Type Toggle Clamps
extended push rod, material: Steel, zinc plated
Order No.
42000.W0002
Size
2
Type
With Bracket
Clamping screw
M 6x25
F1
kN
2.0
F2
kN
2.0
d1
M16x1,5
d2
10.0
d3
5.6
h1
85.5
h2
20
Weight
g
245
l1
114.0
l2
105.0
l3
min.
32.5
l3
max.
58.5
l4
min.
17
l4
max.
25
l5
34
l6
20
l7
19
l8
12.5
w1
50
w2
31,8- 36,0
Stroke s1
26
£ 65.43 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 65.43 | 0% |
| 5-14 | £ 58.89 | 10% |
| 15-24 | £ 55.62 | 15% |
| 25+ | £ 52.34 | 20% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw no. 45020 (with rubber pad).
Technical Notes
Temperature range -10°C to +80°C.
Tips
For stainless steel version see part no. 41890.W0000- .W0003.
Product Datasheets

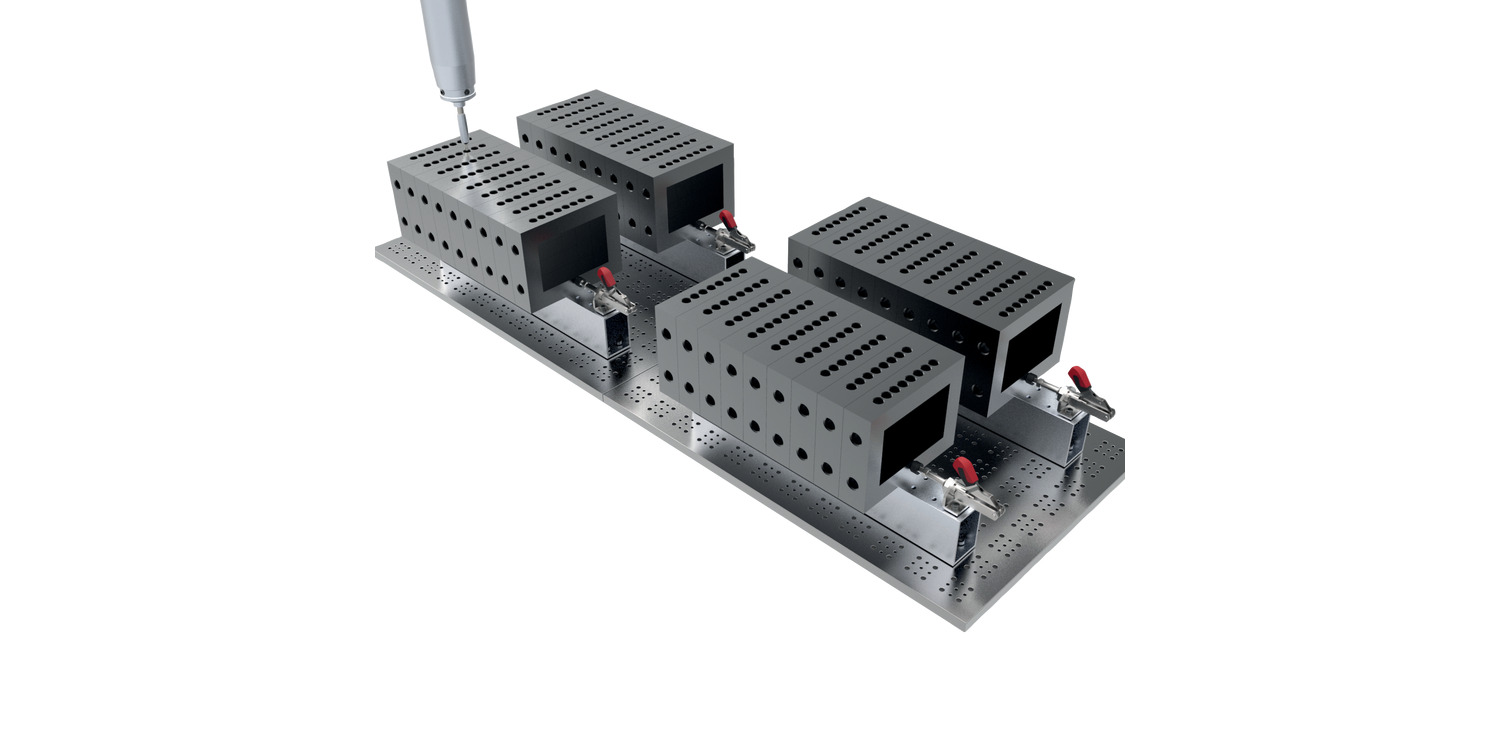

Application images
