Toggle Clamps
push-pull type - compact

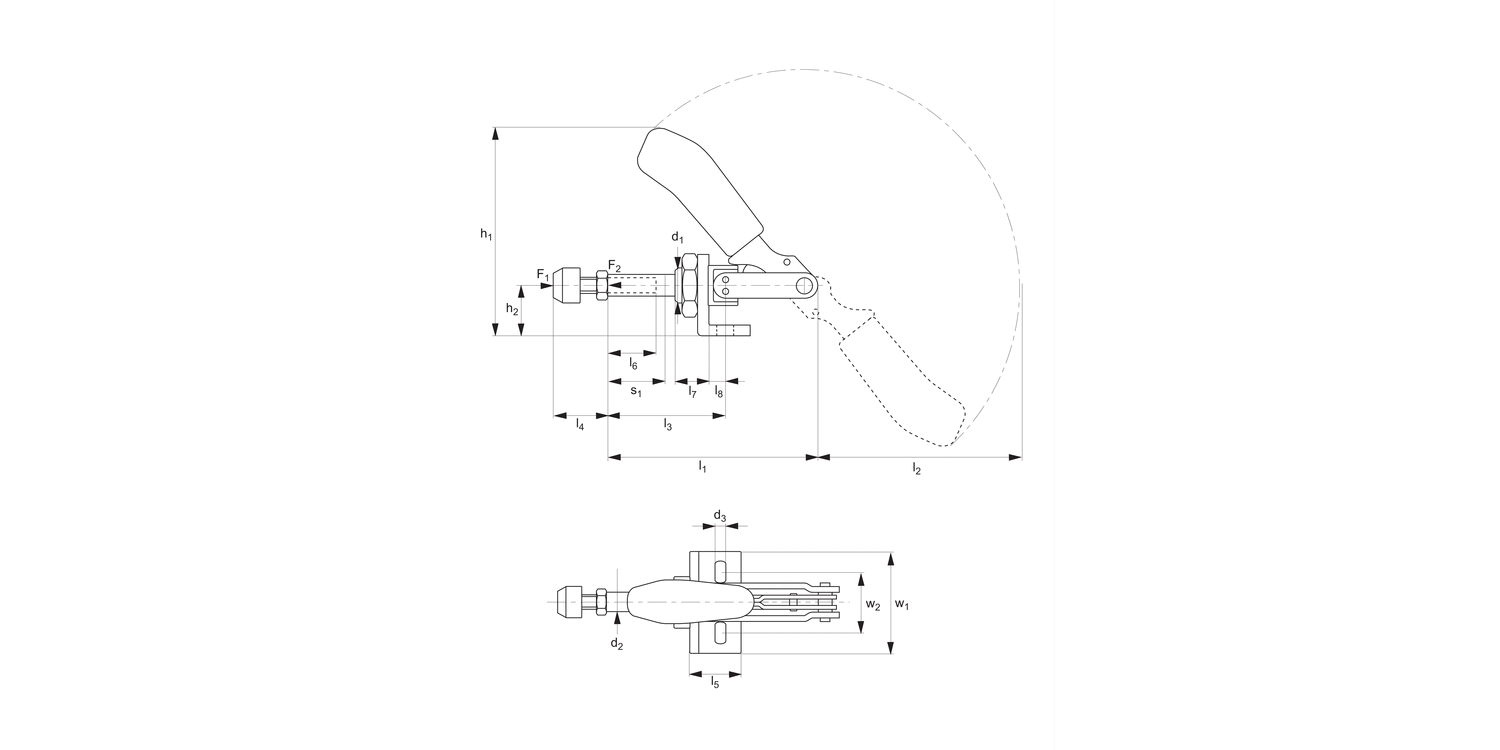

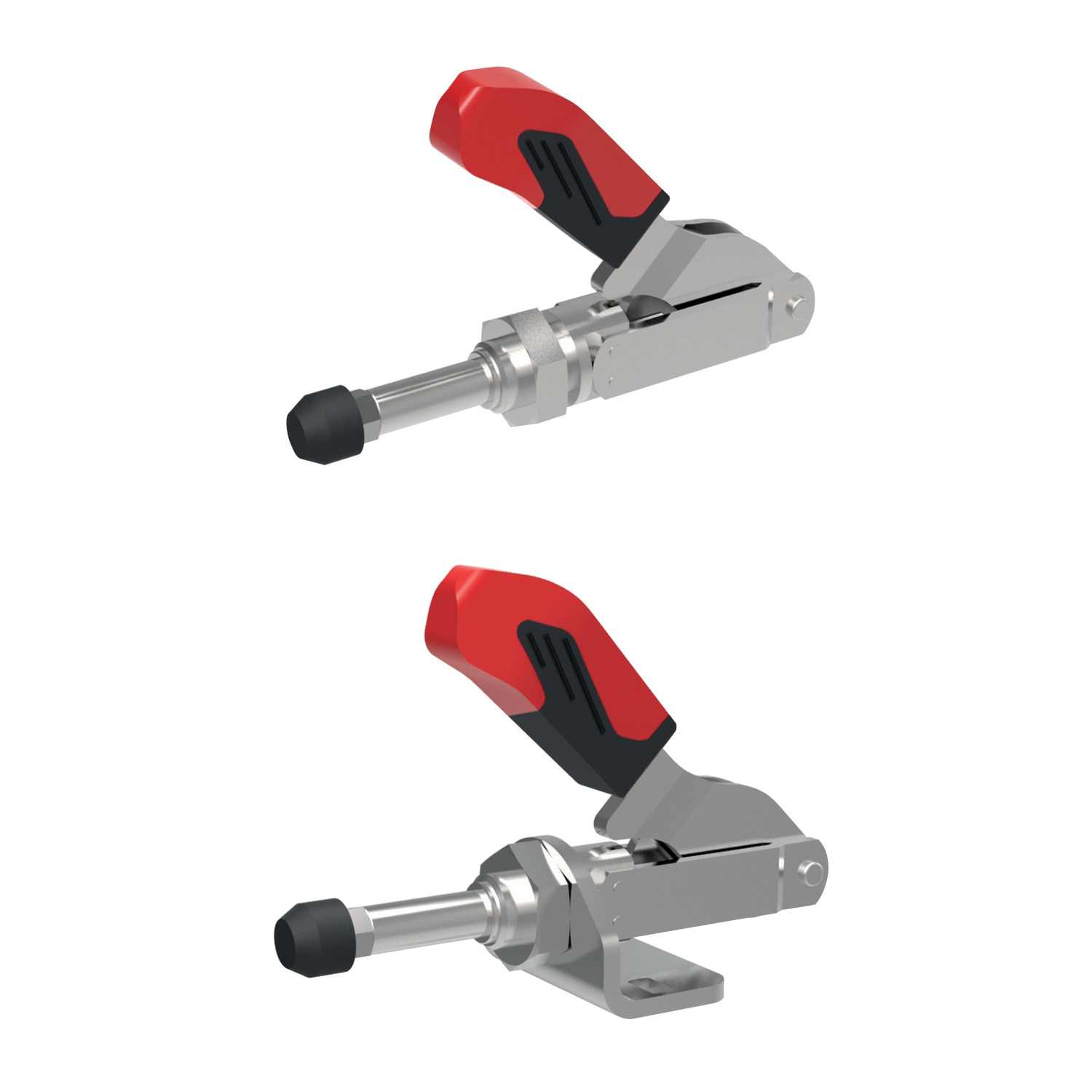

42000.1 Push-Pull Type Toggle Clamps
extended push rod, material: Steel, zinc plated
Order No.
42000.W0016
Size
5-M27
Type
W/o Bracket
Clamping screw
M12x50
F1
kN
4.5
F2
kN
4.5
d1
M27x2,0
d2
16.0
d3
-
h1
99.0
h2
-
Weight
g
720
l1
171.5
l2
158.0
l3
min.
26.5
l3
max.
66.5
l4
min.
30
l4
max.
50
l5
-
l6
50
l7
25
l8
-
w1
41
w2
-
Stroke s1
40
£ 125.82 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 125.82 | 0% |
| 10-14 | £ 113.24 | 10% |
| 15-24 | £ 106.95 | 15% |
| 25-49 | £ 100.66 | 20% |
| 50+ | £ 88.07 | 30% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw no. 45020 (with rubber pad).
Technical Notes
Temperature range -10°C to +80°C.
Tips
For stainless steel version see part no. 41890.W0000- .W0003.
