Toggle Clamps
push-pull type - compact

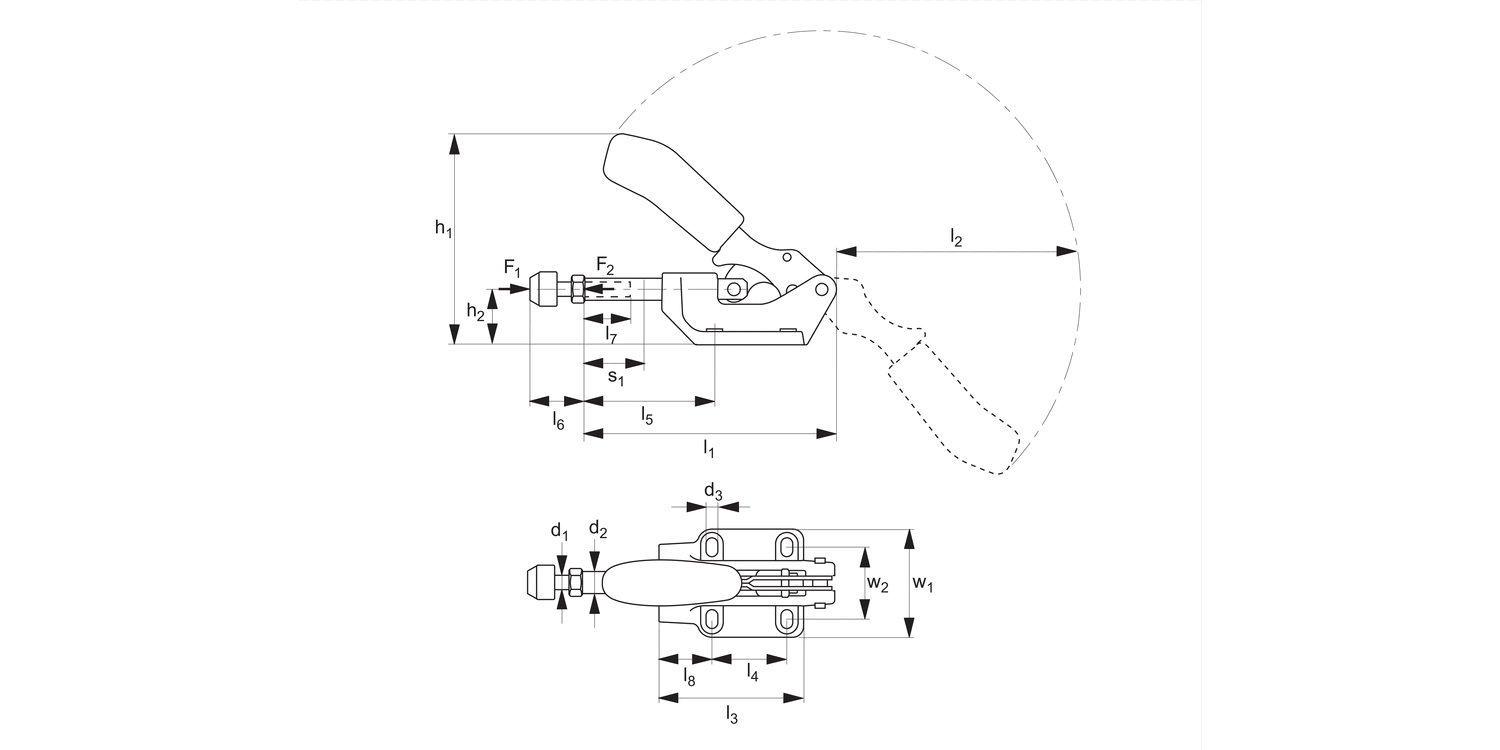

42050.1 Heavy Duty Push-Pull Toggle Clamp
material: Cast iron
Order No.
42050.W0005
Size
5
Clamping screw d1
M12x50
F1
kN
10
F2
kN
10
d2
16
d3
8.5
h1
137.5
h2
38
l1
174
l2
156
Weight
g
1115
l3
121
l4
41
l5
min.
58
l5
max.
98
l6
min.
30
l6
max.
50
l7
50
l8
45
w1
71
w2
41-50
Stroke s1
40
£ 137.55 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 137.55 | 0% |
| 5-14 | £ 123.80 | 10% |
| 15-24 | £ 116.92 | 15% |
| 25+ | £ 110.04 | 20% |
Technical & Application
Material
Base: cast iron, malleable, varnished.
Lever and push rod: zinc plated, passivated and tempered.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw and rubber nose.
Technical Notes
Temperature range -10°C to +80°C.
