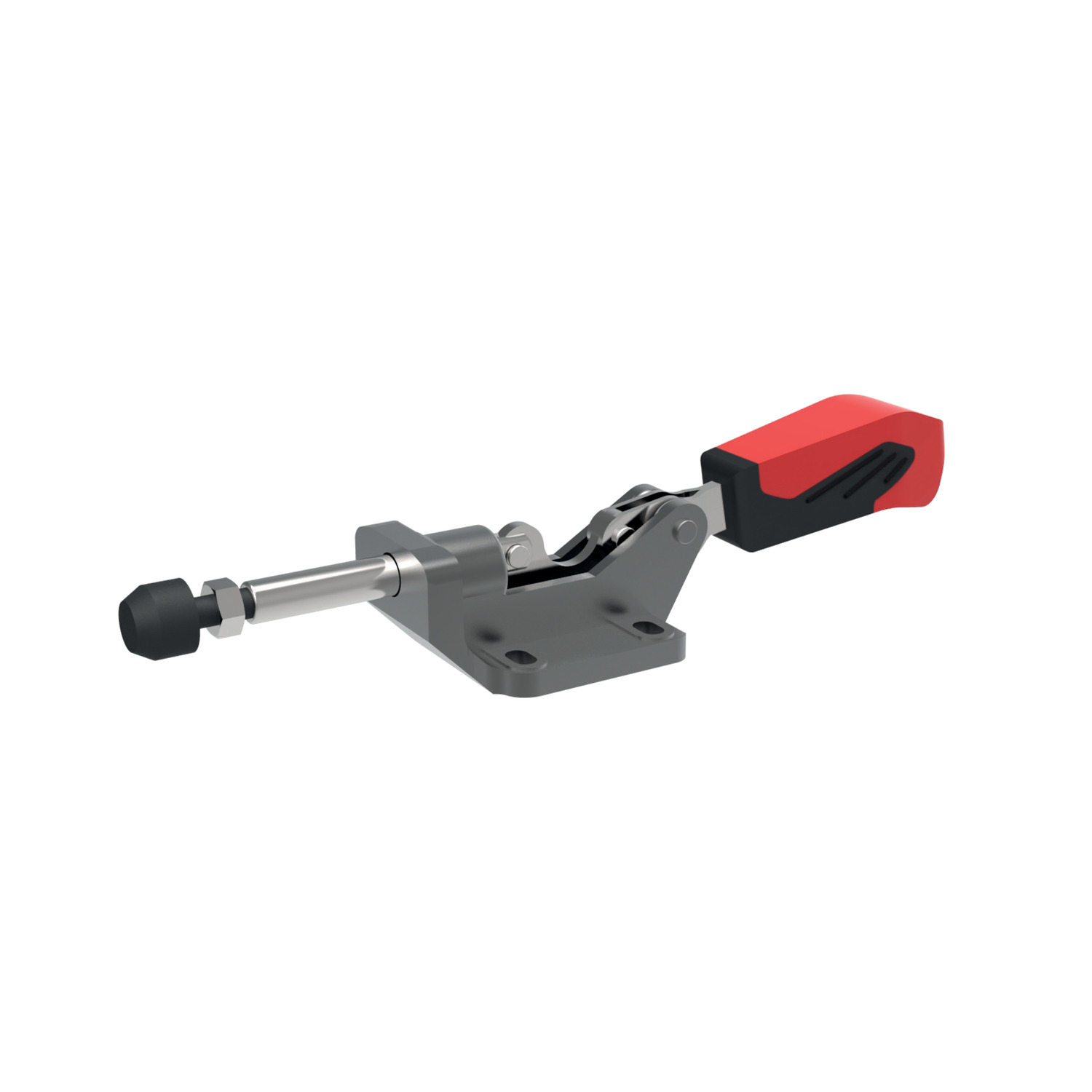

42070 Reverse Action Push-Pull Toggle Clamp

Name: 42070.W0003
Brand: WC
SKU: 42070.W0003
Price: 86.16 EUR
Availability: InStock

angle base - heavy duty, material: Cast iron

Article properties

Order No.

42070.W0003

Size

Clamping screw d₁

M 8x35

F₁ kN

d₂

d₃

6.5

h₁

133.5

h₂

109

h₃

h₄

Weight g

540

l₁

235

l₂

163

l₃

l₄

l₅

22-35

l₆

l₇

w₁

w₂

w₃

Stroke s₁

See full product selection

£ 86.16 per unit (click for quantity discounts)

Ready to despatch 6
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 86.16	0%
5-14	£ 77.54	10%
15-24	£ 73.24	15%
25+	£ 68.93	20%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Base: cast iron, malleable, varnished.
Lever and push rod: steel, zinc plated and tempered.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw and rubber nose.

Technical Notes

Reverse clamping position, clamp is locked when handle is extended at the back of the clamp (the reverse action of clamp no. 42050).
This toggle clamp boasts a low height when in the clamped position, making it ideal for use in small spaces.
Compatible with push-pull toggle clamps no. 42050.
Temperature range -10°C to +80°C.
