42500 Combination Toggle Clamp

Name: 42500.W0003
Brand: WC
SKU: 42500.W0003
Price: 201.87 EUR
Availability: OutOfStock

position and clamp, material: Steel, zinc plated

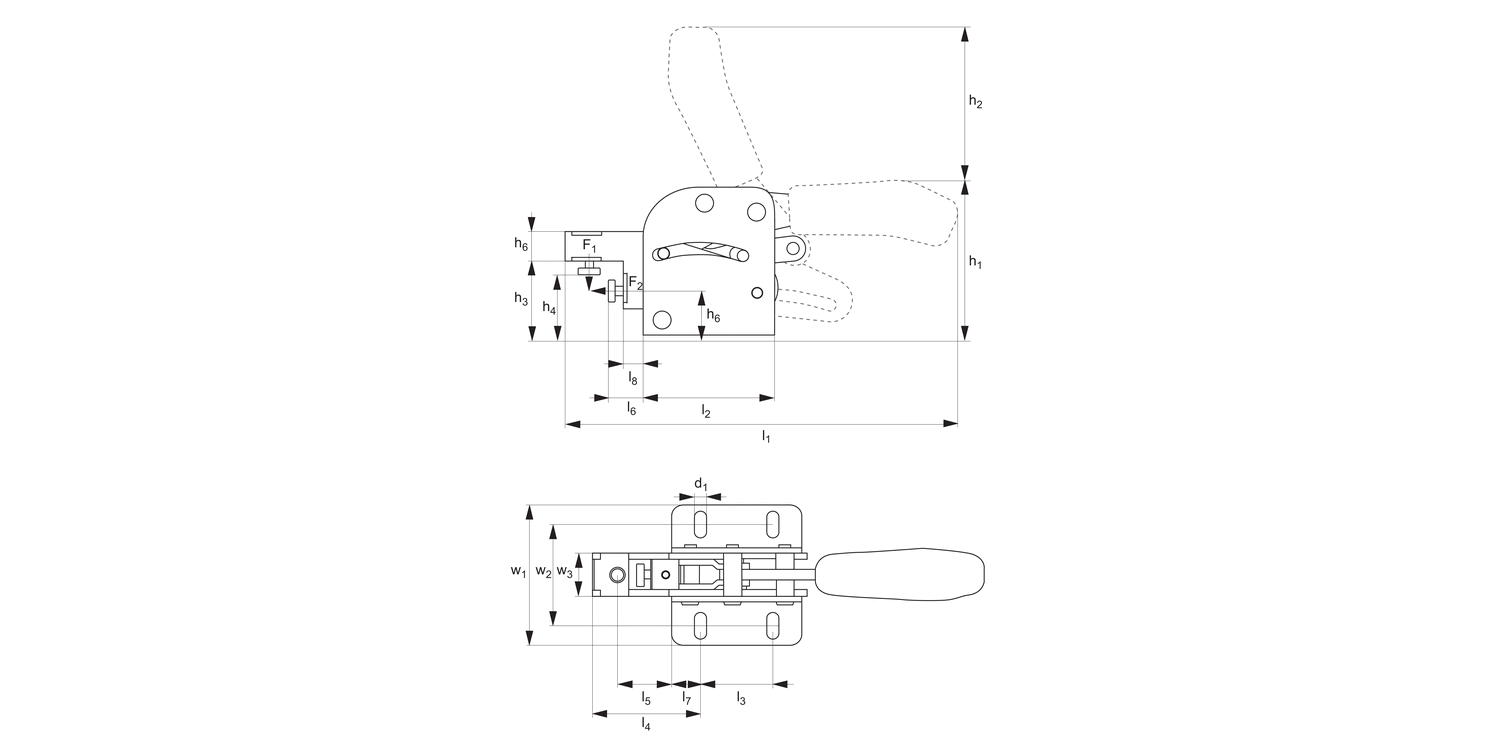

Article properties

Order No.

42500.W0003

Size

F₁ kN

3.0

F₂ kN

3.0

d₁

8.5

h₁

110

h₂

106

h₃

55.5

h₄ min.

h₄ max.

h₅

h₆

l₁

270

Weight g

1620

l₂

l₃

l₄

l₅

l₆ min.

l₆ max.

l₇

20.0

l₈

14.0

w₁

w₂

60,0-80,0

w₃

29.0

See full product selection

£ 201.87 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 201.87	0%
10-19	£ 181.68	10%
20-49	£ 161.50	20%
50-99	£ 141.31	30%
100+	£ 121.12	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel and oil-resistant handle with large grip area.

Technical Notes

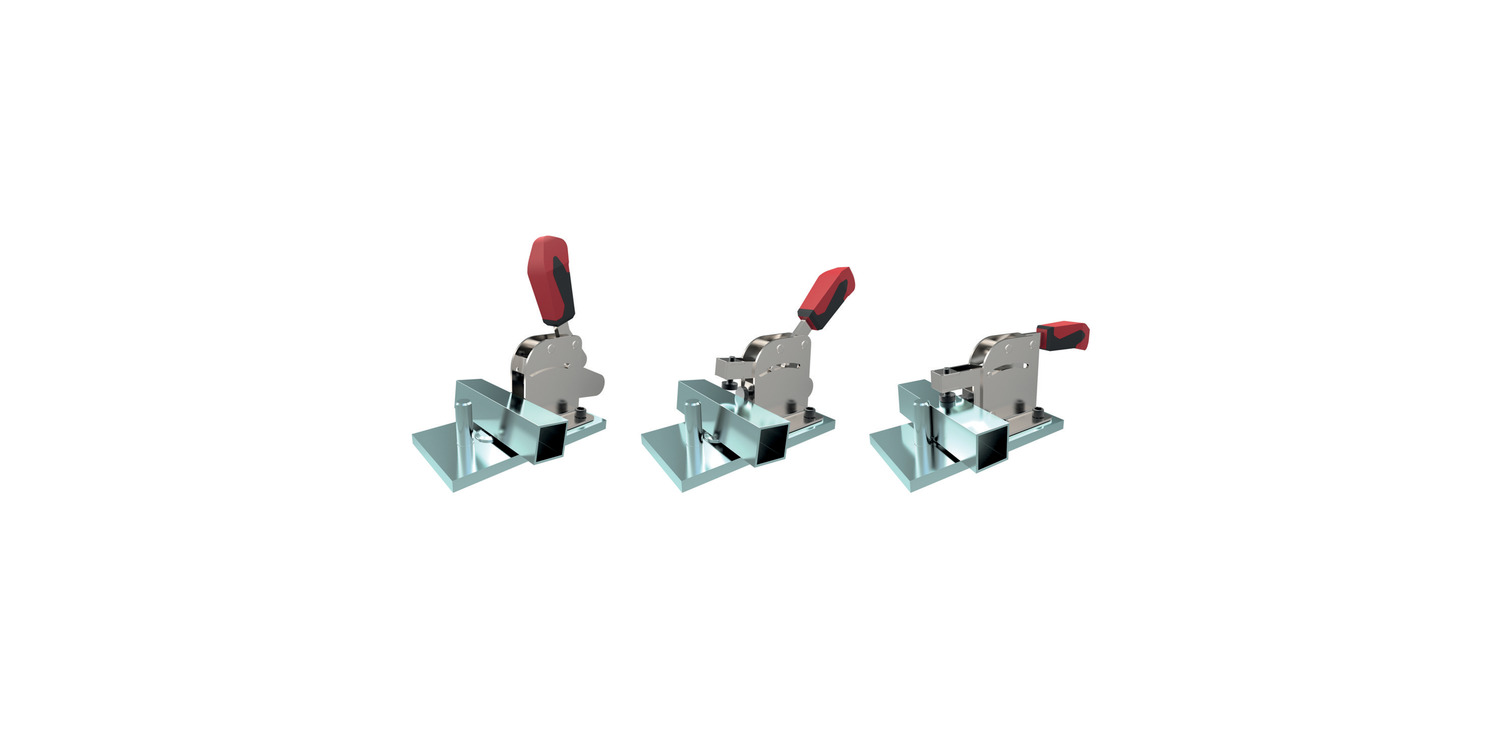

Especially useful in welding applications. The positioning rod and toggle clamp achieve precise positioning and clamping of components in one operation.
Temperature range -10°C to +80°C.
