Toggle Clamps
vertical - open arm - horizontal

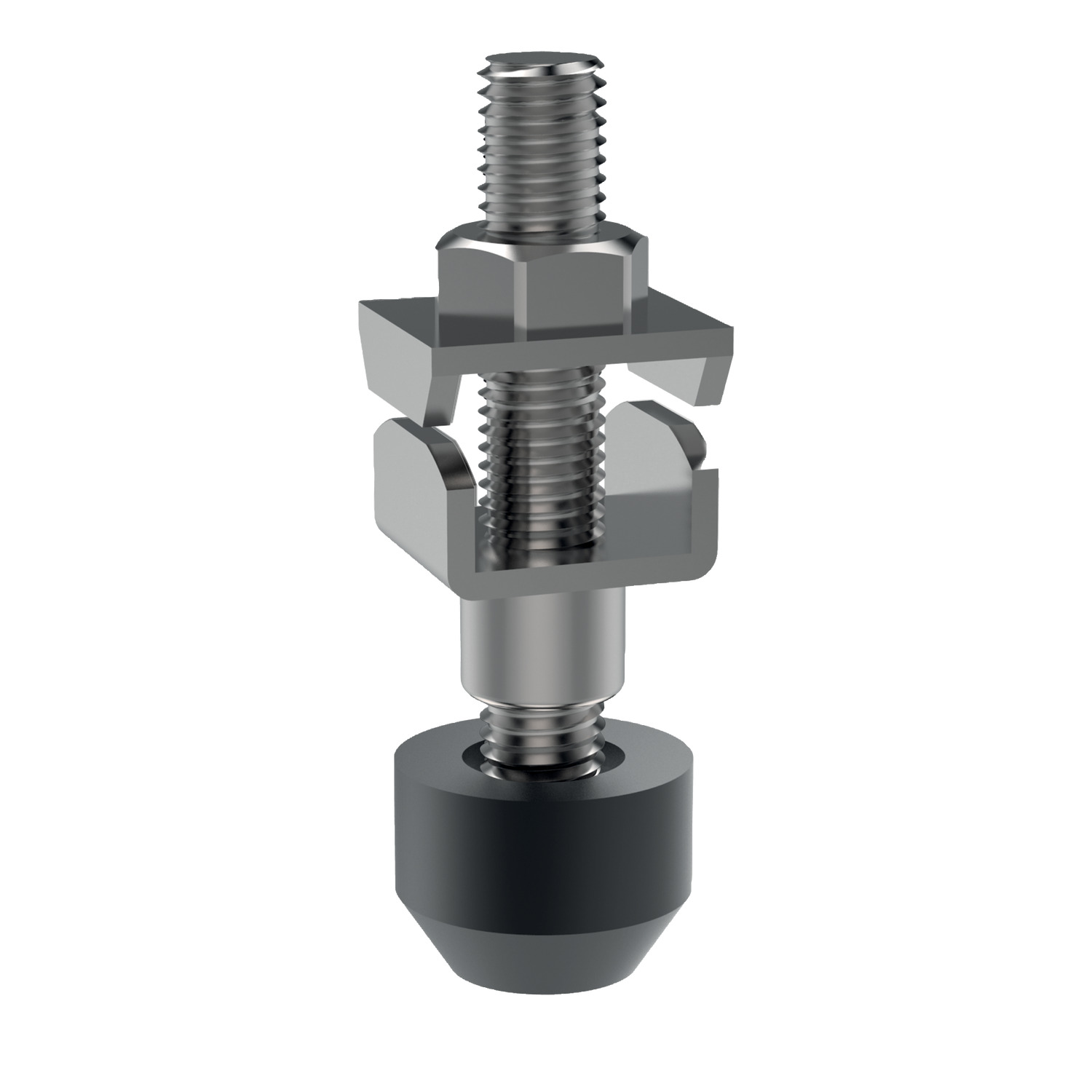

45060.3 ESD Clamping Screws
for open arm toggle clamps, material: Steel, zinc plated
Order No.
45060.W0300
Size
0
Type
Steel
Washer size
0

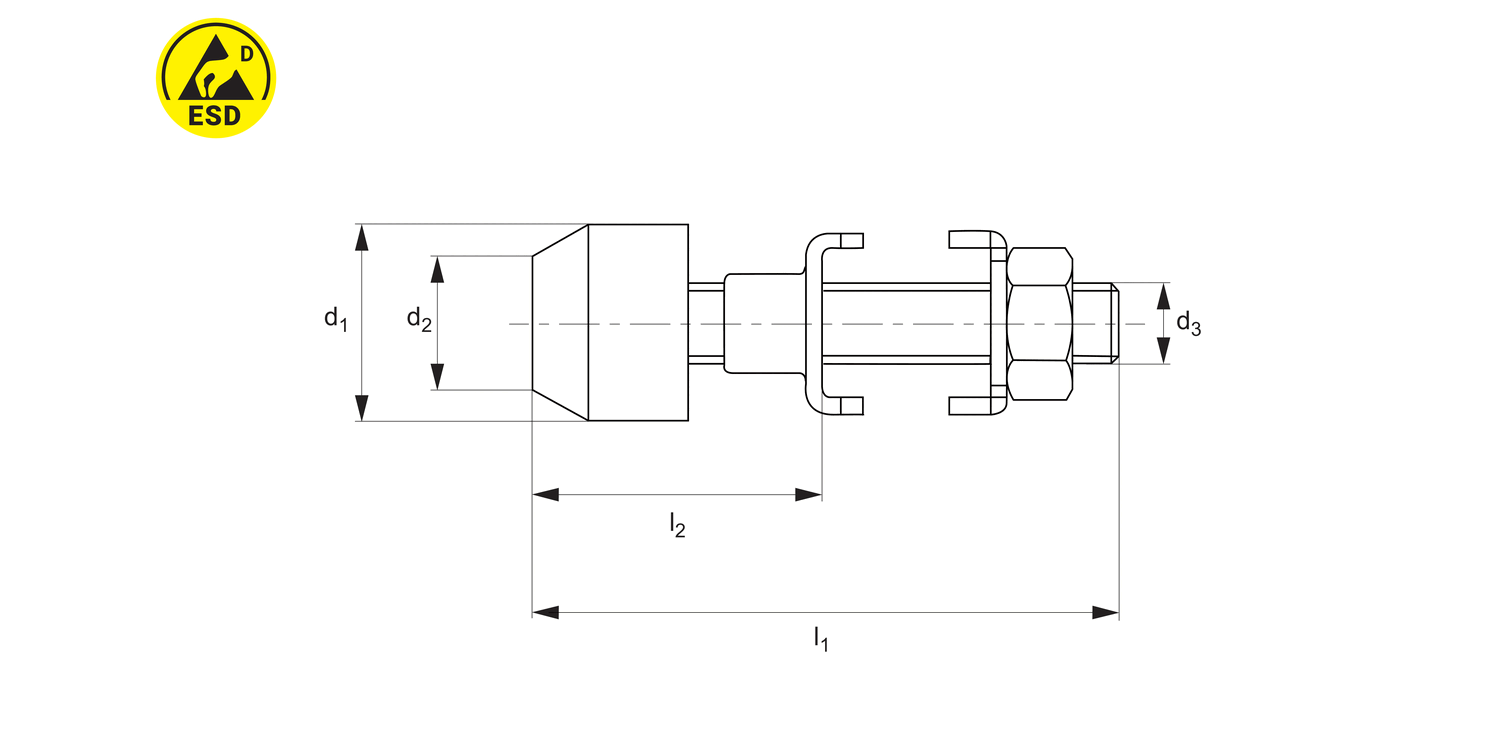

l1
32
l2
13-20
d1
11.0
d2
7
Screw DIN 933 d3 x l3
M 4x25
Weight
g
5
£ 11.74 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 11.74 | 0% |
| 10-14 | £ 10.57 | 10% |
| 15-24 | £ 9.98 | 15% |
| 25-49 | £ 9.39 | 20% |
| 50+ | £ 8.22 | 30% |
Technical & Application
Material
Steel, zinc plated and tempered steel. Tensile strength class 8.8. With nut and removable rubber pad.
Technical Notes
The ESD (electrostatically sensitive devices) clamping screw is non-insulating. It must not be used in areas where open voltages are used.
