Toggle Clamps
light duty, pneumatic

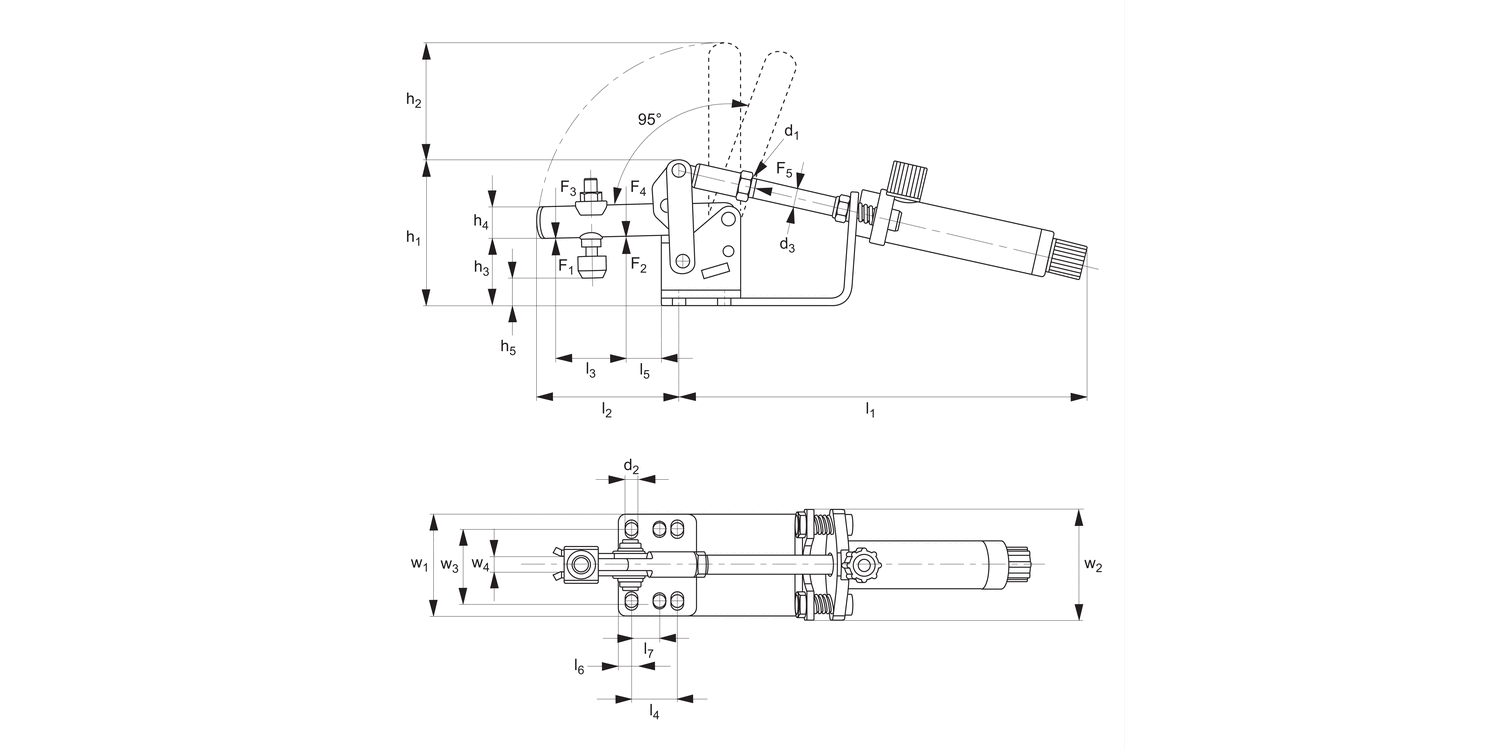

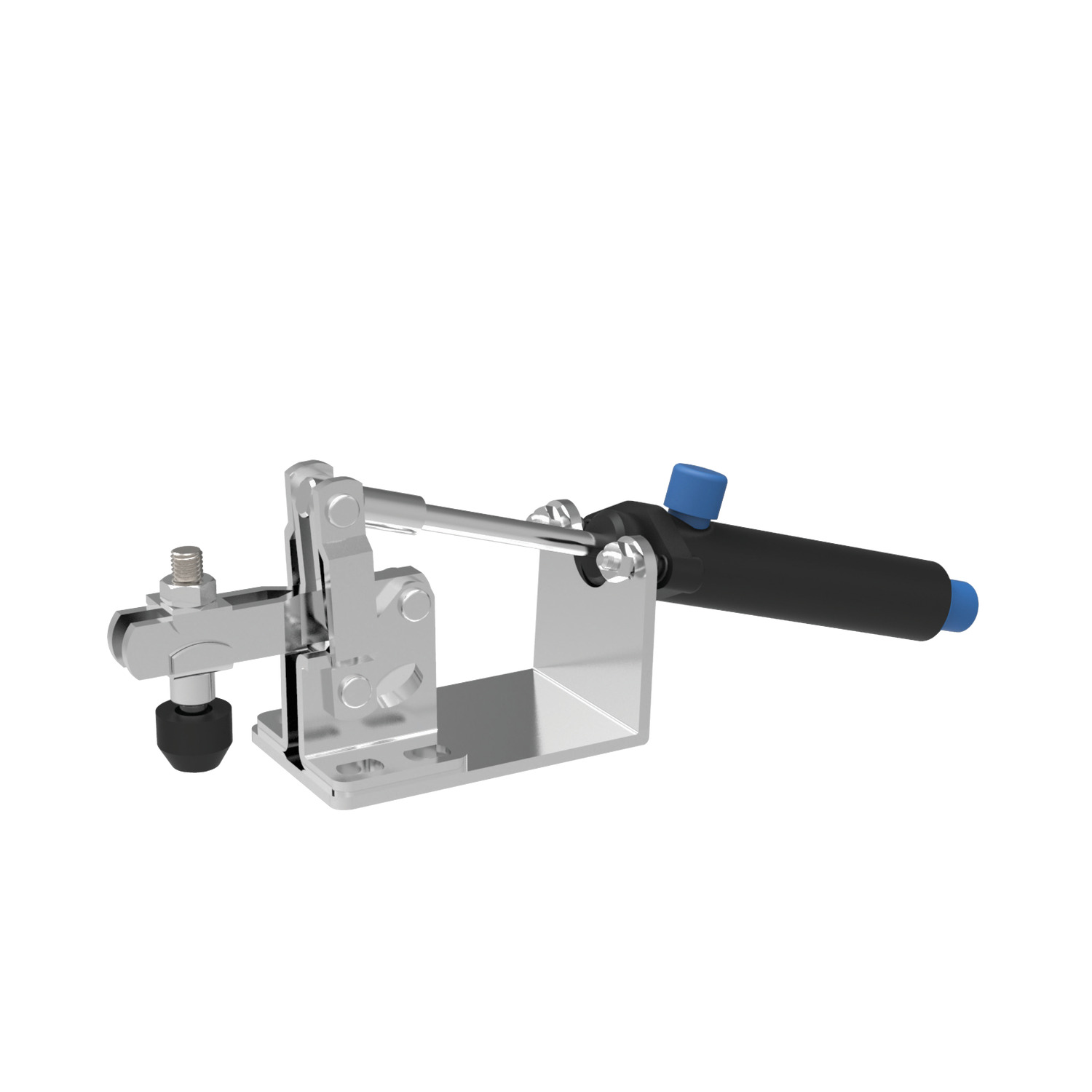

47040 Pneumatic Toggle Clamp
with horizontal cylinder attachment, material: Steel, zinc plated
Order No.
47040.W0000
Size
0
F1
kN
0.5
F2
kN
0.7
F3
kN
0.07
F4
kN
0.09
F5
kN
38
Clamping screw
M 4x25
d1
M 4
d2
4.5
d3
4
h1
46
h2
23.0
h3
20
Weight
g
125
h4
8
h5
min.
-1
h5
max.
6
l1
132
l2
31
l3
14
l4
13.5
l5
5.5
l6
5.0
l7
-
Vn dm3
0.03
w1
33
w2
29
w3
23
w4
4
£ 242.96 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 242.96 | 0% |
| 3-4 | £ 230.81 | 5% |
| 5-9 | £ 218.66 | 10% |
| 10+ | £ 194.37 | 20% |
Technical & Application
Material
Body: steel, zinc plated and galvanised.
Bushes: case hardened and greased.
Rivets: stainless steel.
Complete with tempered, galvanized clamping screw.
Technical Notes
Bearings are pre-lubricated.
Clamp ready for installation and consists of:
- vertical toggle clamp no. 40000 (without handle)
- Plastic pneumatic cylinder, double acting.
F3 and F4 = max. clamping force at 6 bar.
Vn = air consumption per double stroke in dm3 at 6 bar.
Tips
The console is self-supporting and must be clear of other surfaces. There is a valve for controlling the speed of operation.
