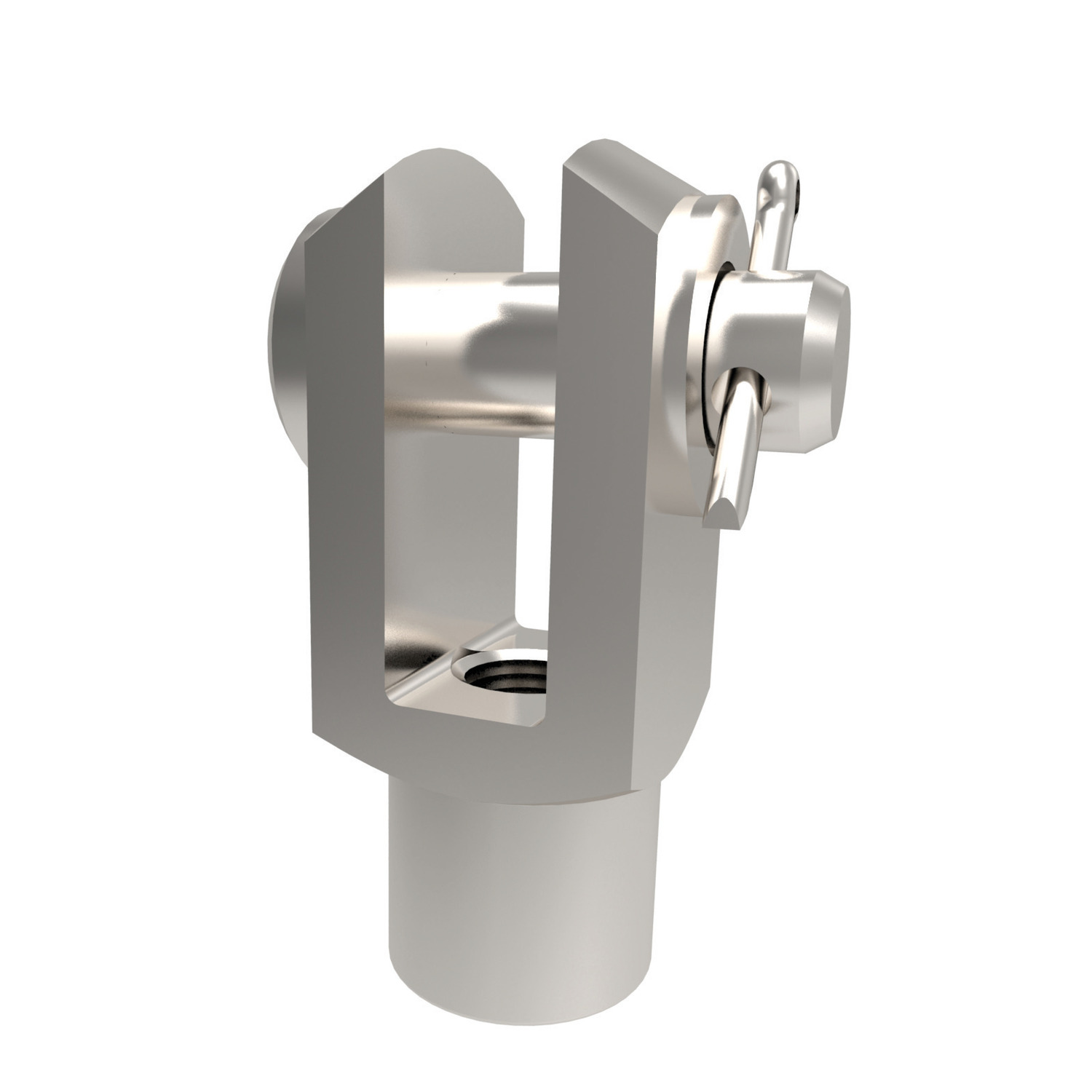

Stainless Clevis Joint
with pin
65616 Stainless Clevis Joints with Pin
left hand thread, material: Stainless steel
Order No.
65616.W0167
Size
16x64
Thread hand
Left
Thread type
Fine

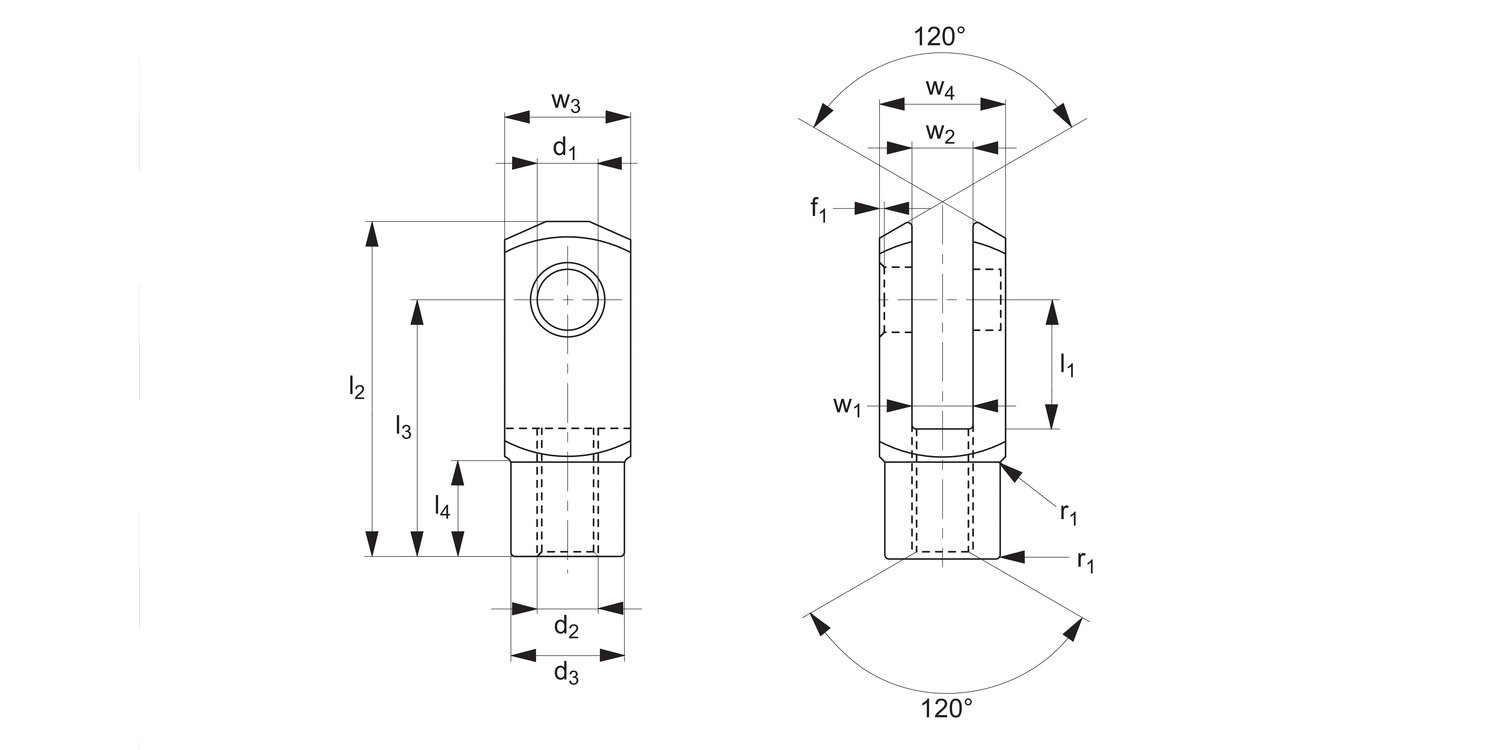

d1
tol. H9
16
l1
±0.5
64
d2
M16x1,5
d3
26
l2
±0.5
115
l3
96
l4
24.0
w1
tol. B13
16
w2
16
w3
tol. h11
32
w4
32
Weight
g
411
£ 117.95 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 117.95 | 0% |
| 50-99 | £ 94.36 | 20% |
| 100-199 | £ 88.46 | 25% |
| 200-499 | £ 82.57 | 30% |
| 500-999 | £ 76.67 | 35% |
| 1000+ | £ 70.77 | 40% |
Technical & Application
Material
Stainless steel (1.4305 AISI 303
X8CrNiS18-9)
Technical Notes
M5-M16: DIN 71 752/DIN ISO 8140.
M20: Similar to DIN 71 752 and according to CETOP standard.
Tips
Assembly is made up using 65636 clevis joint, 65666 pin, and 2 off 65678 circlips.
Important Notes
For sizes M5-M12, f1 and r1 = 0,5, for sizes M16, f1 and r1 = 1
For size M20, f1=1, r1 = 1,5, for r1, radius or 45° bevelling.
Other Tolerances:-
w4: M4-M16 = +0,3 -0,16
M20 = +0,5 - 0,2
w2: Size 4x8-10x20 = B13
Size 10x40-20x40 = +0,7 +0,15
l3: up to size 6x12 = ±0,3
From size 6x24 = ±0,4
