65674 Steel Cotter Pins

Name: 65674.W0040
Brand: WC
SKU: 65674.W0040
Price: 1.14 EUR
Availability: InStock

material: Zinc-plated

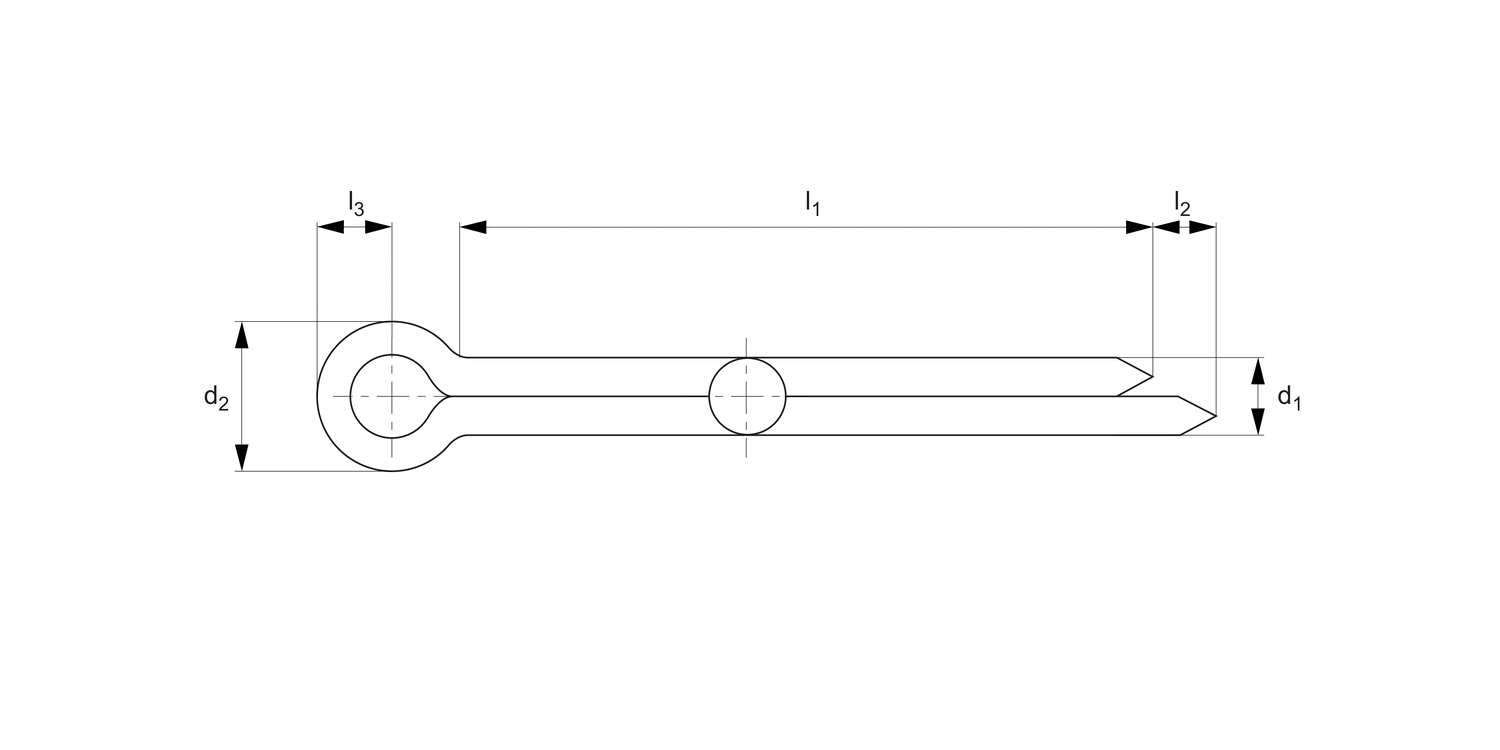

Article properties

Order No.

65674.W0040

d₁ nom.

d₁ min.

3.5

d₁ max.

3.7

d₂ max.

7.4

l₁

l₂ max.

4.0

l₃ ≈

8.0

See full product selection

£ 1.14 per unit (click for quantity discounts)

Ready to despatch 527
Need more? Manufactured within 5 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-999	£ 1.14	0%
1000-1999	£ 0.80	30%
2000-4999	£ 0.68	40%
5000+	£ 0.57	50%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Mild steel (zinc-plated).

Technical Notes

To DIN 94 (equivalent to ISO 1234). Cotter pins require a loose fit,
and as a result the metric versions can also be for inch sizes.
Recommended hole tolerance for d1 1,6 is H14 (under this diameter recommended tolerance is H13).

Product Datasheets

65674 Steel Cotter PinsJanuary 3, 2025, 3:07 PM / 524.35 kB

Clevis PinsJanuary 3, 2025, 3:38 PM / 675.95 kB

Clevis JointsJanuary 3, 2025, 3:38 PM / 1.72 MB

Rod Ends & JointsJanuary 3, 2025, 3:38 PM / 7.92 MB

Design ElementsJanuary 3, 2025, 3:37 PM / 62.67 MB

CAD files

65674 AcisApril 17, 2024, 9:53 AM / 40.61 kB

65674 IGESApril 17, 2024, 9:53 AM / 128.27 kB

65674 ParasolidApril 17, 2024, 9:53 AM / 47.61 kB

65674 ProEApril 17, 2024, 9:53 AM / 138.67 kB

65674 SolidWorksApril 17, 2024, 9:53 AM / 1.25 MB

65674 StepApril 17, 2024, 9:53 AM / 62.29 kB
