Steel Clevis Pin
with hole

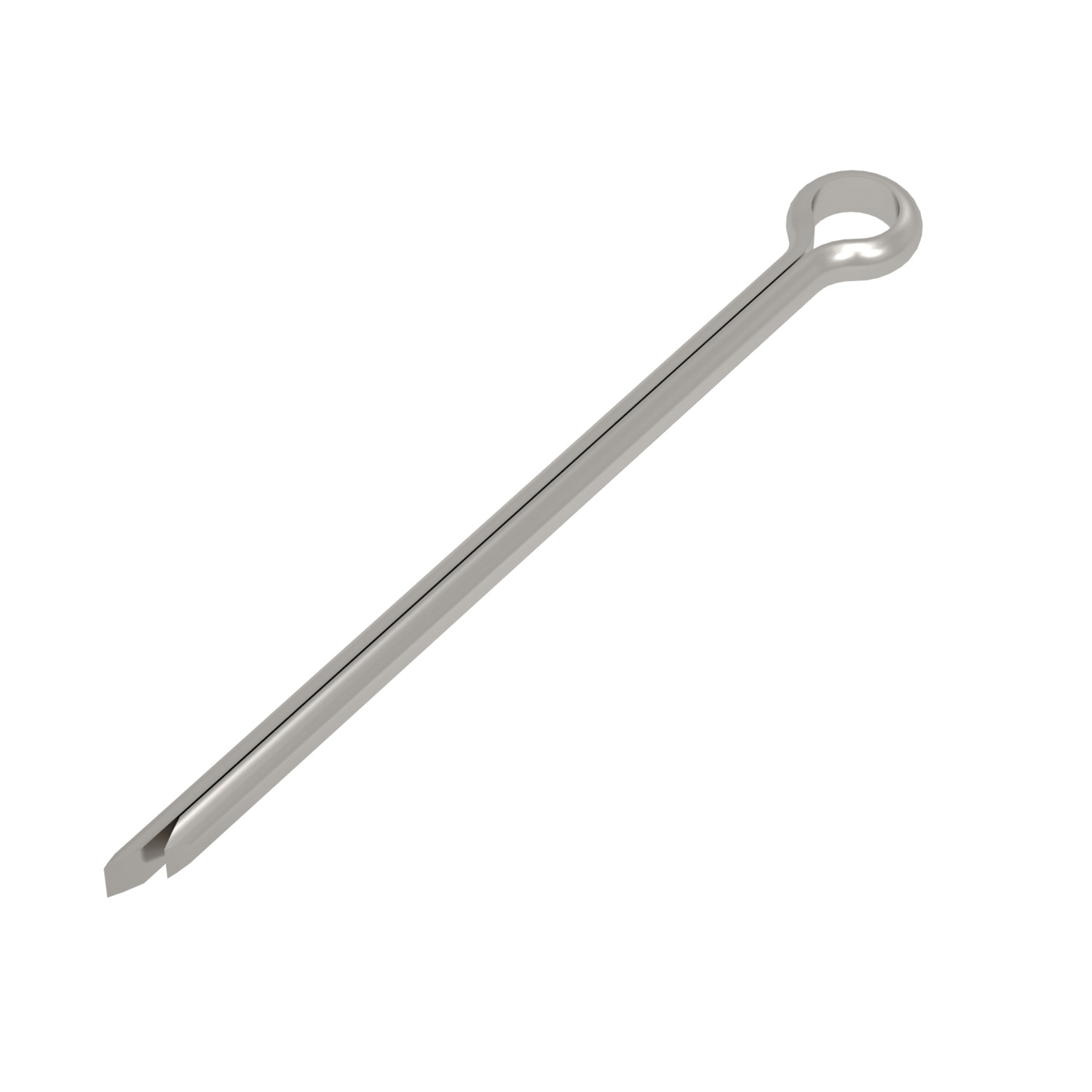

65675 Stainless Cotter Pins
material: Stainless steel A2
Order No.
65675.W1010

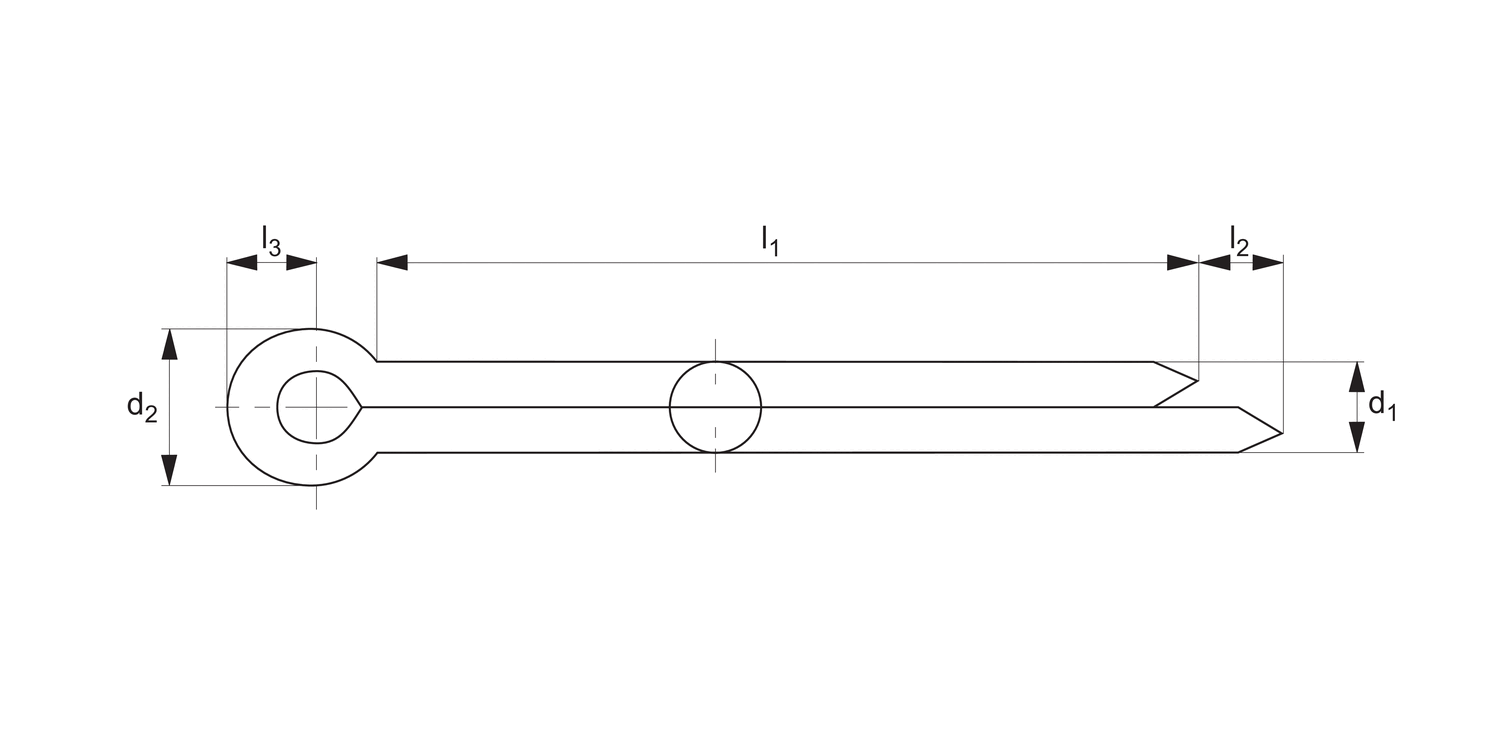

d1
nom.
1
d2
max.
1.8
l1
10
l2
max.
1.6
l3
≈
3.0
£ 0.72 per unit (click for quantity discounts)
Ready to despatch 389
Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 0.72 | 0% |
| 50-99 | £ 0.58 | 20% |
| 100-199 | £ 0.54 | 25% |
| 200-499 | £ 0.50 | 30% |
| 500-999 | £ 0.47 | 35% |
| 1000+ | £ 0.43 | 40% |
Technical & Application
Material
Stainless steel (A2, AISI 303).
Technical Notes
To DIN 94 (equivalent to ISO 1234). Cotter pins require a loose fit, and as a result the metric versions can also be for inch sizes.
