Spherical Plain Bearing - K Series
maintenance free
65720 Heavy-Duty Rod Ends - Female
with integral spherical plain bearing, material: Steel
Order No.
65720.W0008
Thread hand
Right

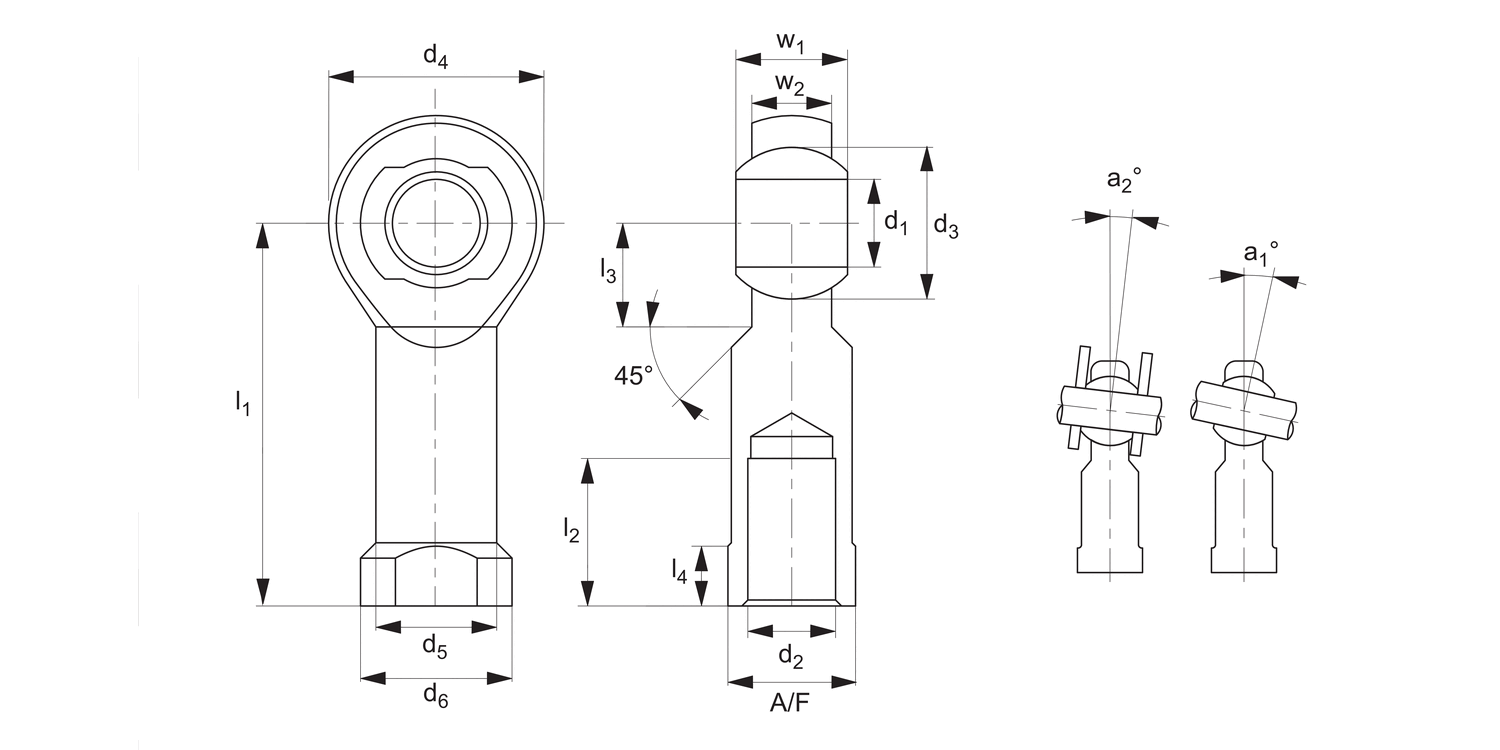

d1
8
l1
36
d2
M8
d3
15.87
d4
24
d5
12.5
d6
16
l2
16
Weight
g
45
l3
12
l4
5.0
w1
12
w2
9.00
A/F
14
a1
°
14.5
a2
°
7.5
Dyn. load C
max.
kN
6.965
Static load C0
max.
kN
19.2
£ 26.93 per unit (click for quantity discounts)
Ready to despatch 11
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 26.93 | 0% |
| 10-19 | £ 24.24 | 10% |
| 20-49 | £ 22.89 | 15% |
| 50-99 | £ 21.54 | 20% |
| 100+ | £ 18.85 | 30% |
Technical & Application
Material
Rod end housing - forged steel, tempered, surface galvanized.
Joint ball - ball bearing steel, hardened and ground, polished and chromium plated.
Race - nylon/teflon/glass compound.
Technical Notes
Maintenance free, sizes according to DIN ISO 12240-4, series K, thread according to Cetop RP 103 P.
For tolerances see technical pages.
Tips
Standard thread is right hand thread.
Important Notes
* Denotes fine pitch thread.
