Mini Shock Absorber
self compensating, non-adj
68008 Shock Absorbers, Self Compensating
M14 - M20, non-adjustable, material: Hardened and blackened steel
Order No.
68008.W0142
Stroke
mm
15
Nm per cycle (Et)
max.
Nm
9.8
Per hour (ETc)
max.
Nm
35280
Effective mass (Me)
max.
kg
15
Impact speed (v)
Med
Impact speed (v)
max.
m/s
1.5
Operating temperature
°C
-10 to +80
Weight
g
80

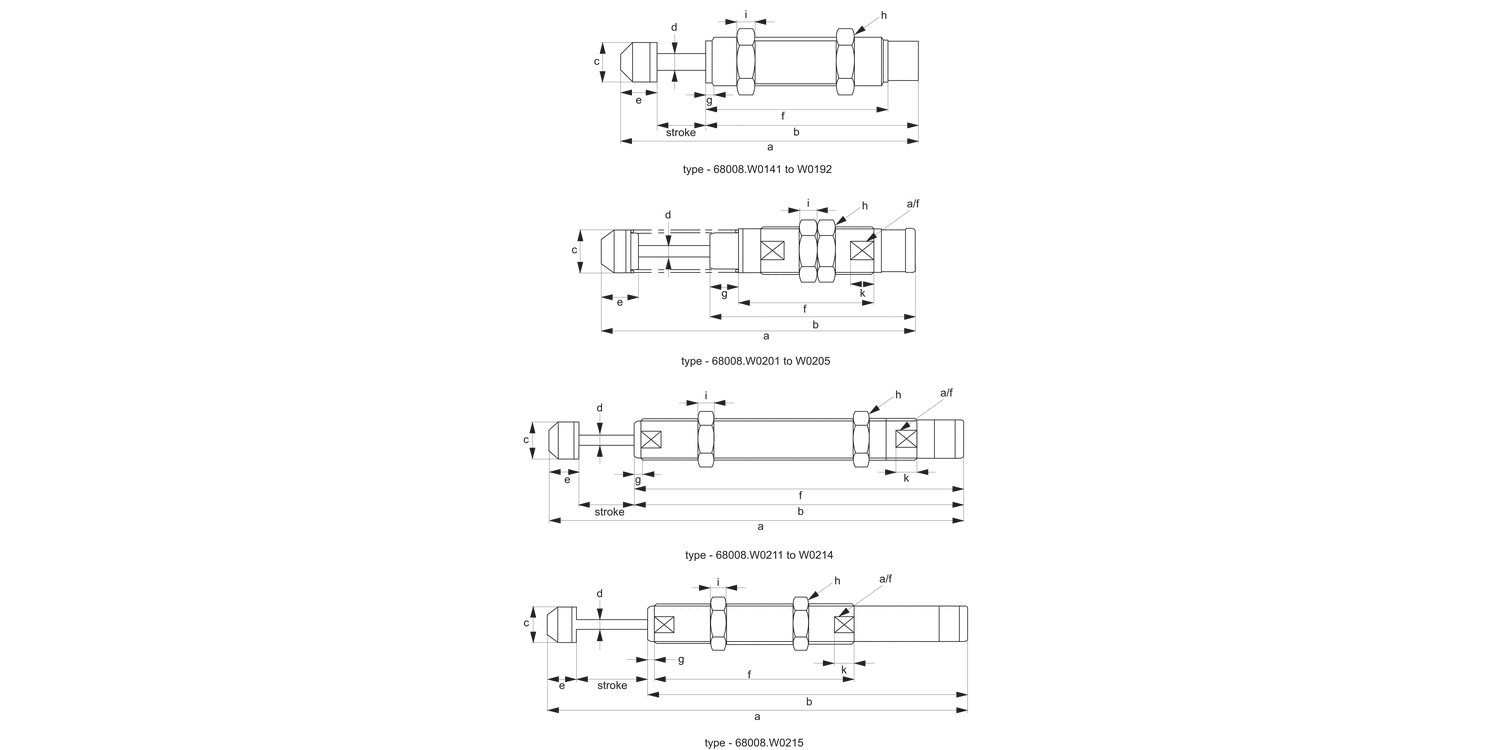

Thread
M14x1,0
a
95.2
b
69.2
c
12
d
4
e
11.0
f
53.0
h
19
g
2.0
i
5
A/F
-
k
-
£ 44.48 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 44.48 | 0% |
| 5-14 | £ 40.03 | 10% |
| 15-24 | £ 37.81 | 15% |
| 25+ | £ 35.58 | 20% |
Technical & Application
Material
Outer Tube: STKM11A, hardened and blackened.
Piston Rod: AISI 1045 hardened to HV940°, chrome plated.
Return Spring: DIN GWP.
Muffler Cap: urethane rubber. Seal: nitrile rubber.
Technical Notes
Supplied with rubber muffler cap as standard, this is removable - see introductorary technical notes for guidance.
Tips
Select High Impact Speed model for hard impact at start of stroke. For hard set down at end of stroke choose a Medium or Low Impact Speed model.
Important Notes
For correct product selection refer to Product Selection Formulae and Calculation pages, and associated Capacity & Selection Charts.
Product Datasheets
CAD files
