Knurled Knobs
72490 Three-lobed Torque Handles
material: Steel
Order No.
72490.W0509
Type
With screw

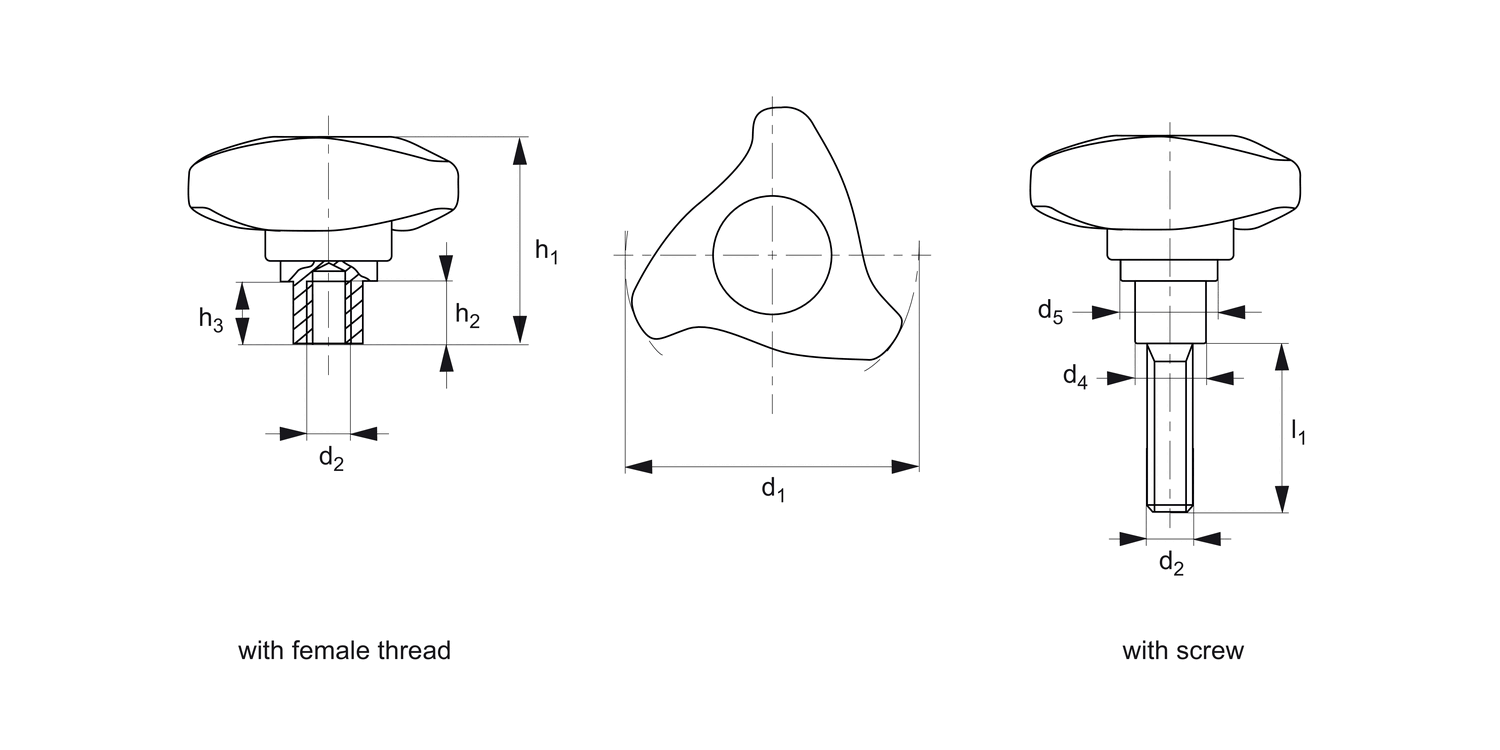

d1
80
d2
M10
d4
19.0
d5
34.1
h1
56.2
h2
–
h3
16.8
l1
50
Tightening torque
±10% max.
Nm
4.0
Weight
g
208
£ 59.14 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-99 | £ 59.14 | 0% |
| 100-249 | £ 53.23 | 10% |
| 250-499 | £ 50.27 | 15% |
| 500-999 | £ 47.31 | 20% |
| 1000+ | £ 44.36 | 25% |
Technical & Application
Material
Screw: steel, blackened.
Cap: plastic, light grey.
Torque mechanism: steel, hardened.
Inner part: steel, blackened.
Technical Notes
The handle with integrated torque mechanism allows a defined torque limination during tightening.
Reaching the torque results in an "over-locking". For releasing the torque is transmitted indefinitely.
ROHS compliant.
Reach: containts SVHC materials > 0,1% w/w.
