Adj. Clamping Levers
female
74430 Adjustable Clamping Levers
with grub screw, material: Die cast zinc
Order No.
74430.W0473
Colour
Grey
Finish

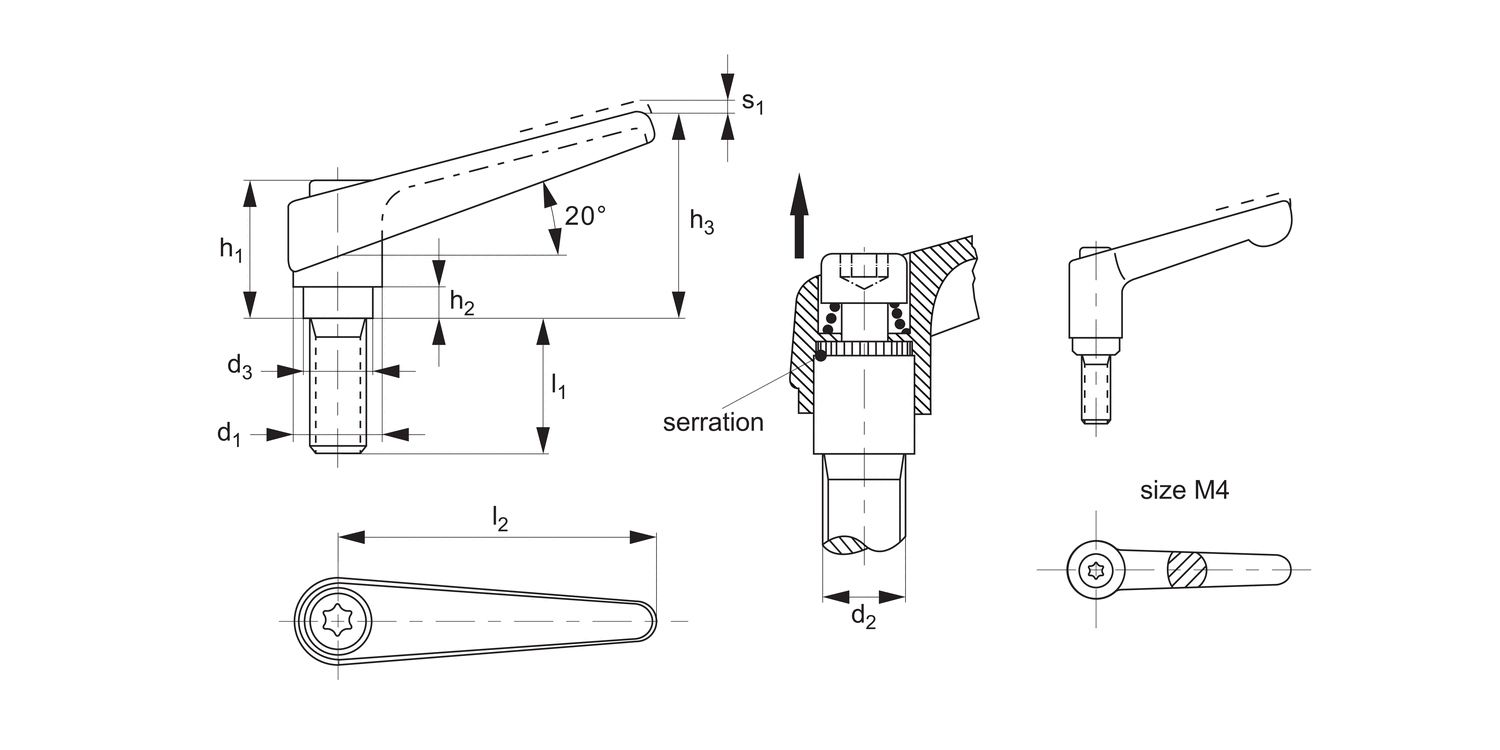

Male thread
d1
22
d2
M10
d3
16.0
h1
36.0
h2
8.0
h3
52.0
l1
40
l2
74
Stroke s1
3.5
Weight
g
138
£ 12.48 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 12.48 | 0% |
| 10-19 | £ 11.23 | 10% |
| 20-49 | £ 10.61 | 15% |
| 50-99 | £ 9.98 | 20% |
| 100+ | £ 9.36 | 25% |
Technical & Application
Material
Handle: die-cast zinc.
- Orange RAL 2004
- Black RAL 9005
- Silver RAL 9006.
Inner parts: steel, quality 5.8, blackened
Screw: steel, quality 5.8, blackened.
Technical Notes
By lifting the lever, the serrations are disengaged. The handle can be positioned by the serrations, and the threaded insert can be exchanged. Upon releasing the handle, the serrations are automatically re-engaged. The collar screw is torx head.
