74600 Gear Lever Handles

Name: 74600.W0522
Brand: WC
SKU: 74600.W0522
Price: 7.94 EUR
Availability: OutOfStock

steel or stainless steel, material: Steel

Article properties

Order No.

74600.W0522

Type

Stainless Shaft - Ball

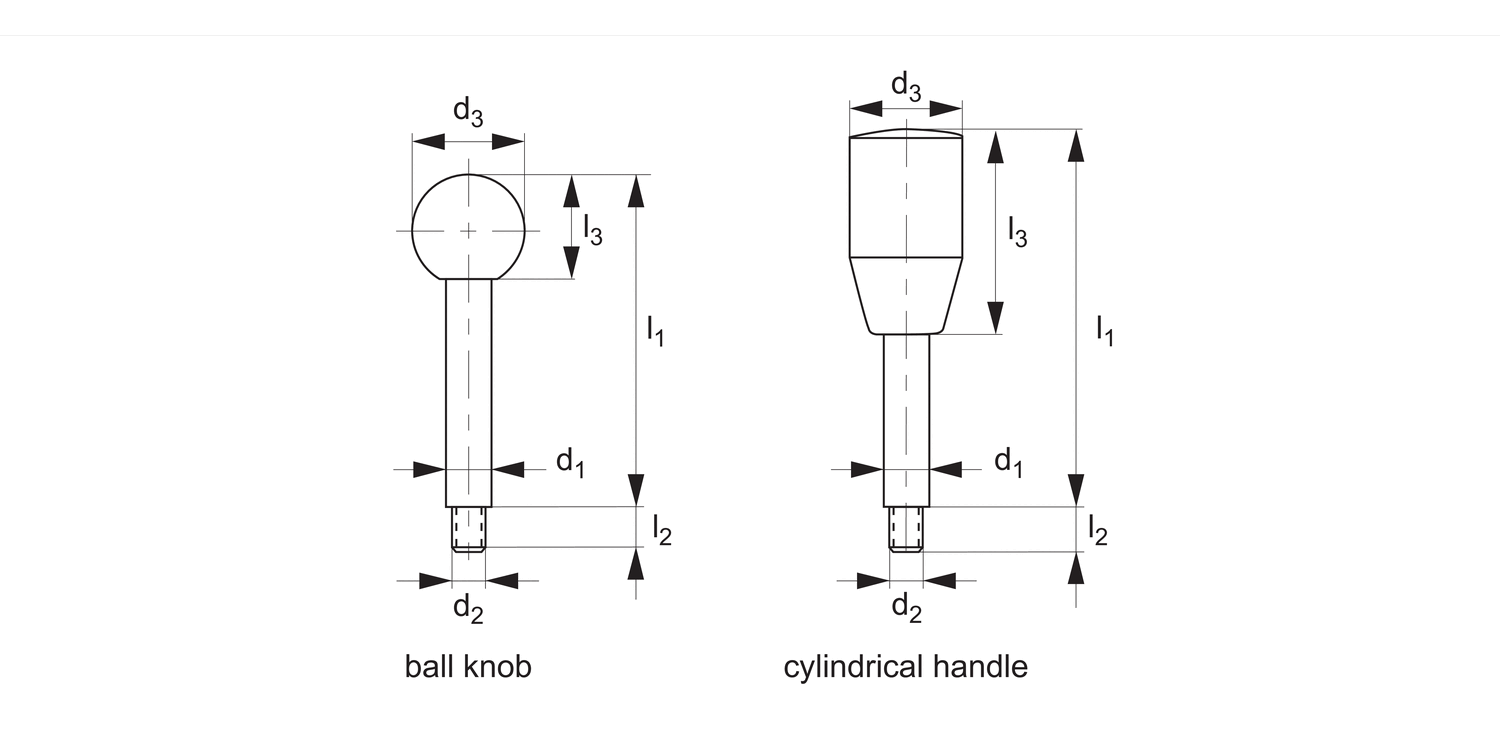

d₁

d₂

M 6

d₃

l₁

100

l₂

l₃

18.0

Weight g

See full product selection

£ 7.94 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 7.94	0%
10-19	£ 7.15	10%
20-49	£ 6.75	15%
50-99	£ 6.35	20%
100+	£ 5.96	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Shafts: steel,galavanized, passivated or stainless steel 1.4305 (AISI 303) - matt finish.
Temperature range 110°C.
Knobs: plastic, duroplast PF 31.

Technical Notes

Temperature range up to 110°C

Product Datasheets

74600 Gear Lever HandlesJanuary 3, 2025, 3:08 PM / 80.62 kB

Clamping Levers - Adjustable - Die CastJanuary 3, 2025, 3:37 PM / 429.94 kB

Clamping LeversJanuary 3, 2025, 3:37 PM / 1.97 MB

Grips, Handles & HandwheelsJanuary 3, 2025, 3:37 PM / 12.03 MB

Design ElementsJanuary 3, 2025, 3:37 PM / 62.67 MB

CAD files

74600 AcisApril 17, 2024, 10:05 AM / 495.57 kB

74600 IGESApril 17, 2024, 10:05 AM / 1.43 MB

74600 ParasolidApril 17, 2024, 10:05 AM / 266.09 kB

74600 ProEApril 17, 2024, 10:05 AM / 1.42 MB

74600 SolidWorksApril 17, 2024, 10:05 AM / 3.05 MB

74600 StepApril 17, 2024, 10:05 AM / 711.88 kB
