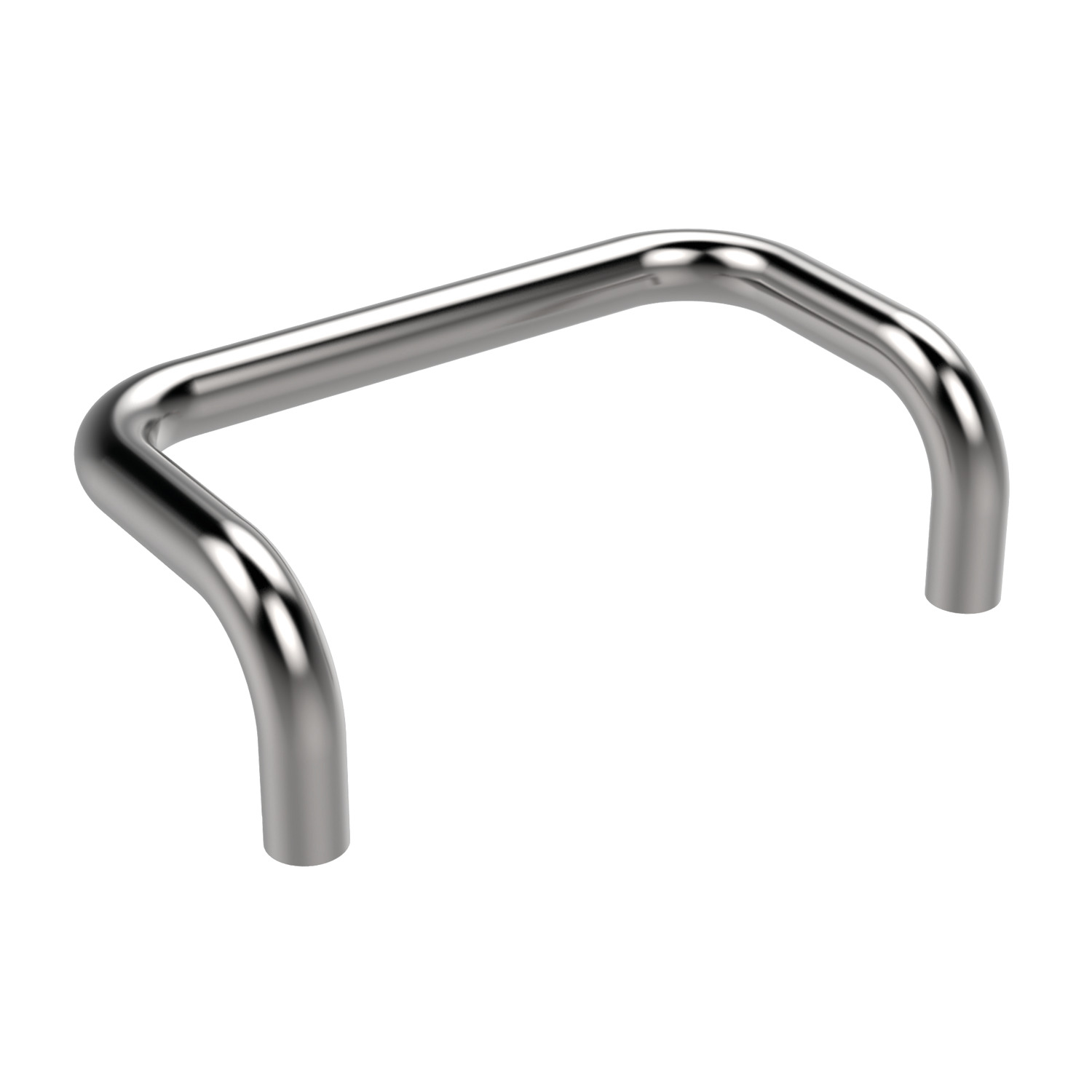

78760 Pull Handles - Cranked

Name: 78760.W0200-1
Brand: WC
SKU: 78760.W0200-1
Price: 70.69 GBP
Availability: OutOfStock

steel, material: Steel

Article properties

Order No.

78760.W0200-1

Finish

Matte Chromium Plated

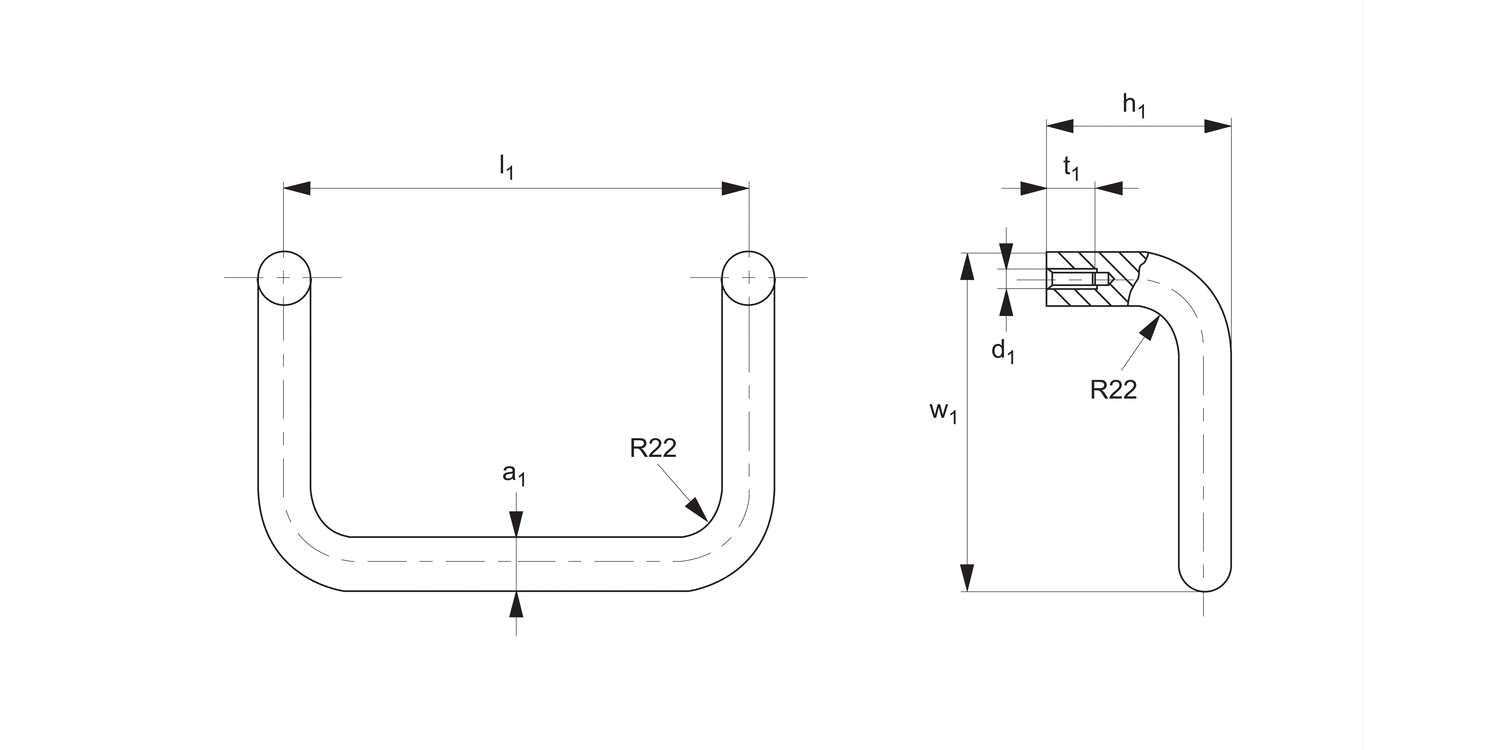

l₁

200

a₁

d₁

M 8

h₁

t₁

w₁

130

See full product selection

£ 70.69 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 70.69	0%
5-9	£ 63.62	10%
10-19	£ 60.09	15%
20-49	£ 53.02	25%
50+	£ 45.95	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Round bar steel, Ø20mm.
Finish: ground, brushed matt chromium plated or black powder coated with fine structure.

Technical Notes

Minimum stress resistance >1000N. Handles with other bore clearances are available on request.

Product Datasheets

78760 Pull Handles - Cranked24 June 2025, 15:39 / 196.78 kB

Pull Handles - Steel24 June 2025, 15:34 / 1.09 MB

Pull Handles24 June 2025, 15:31 / 4.23 MB

Grips, Handles & Handwheels24 June 2025, 15:32 / 11.95 MB

Design Elements24 June 2025, 15:33 / 69.38 MB

CAD files

78760 Acis17 April 2024, 10:08 / 40.39 kB

78760 IGES17 April 2024, 10:08 / 142.76 kB

78760 Parasolid17 April 2024, 10:08 / 20.76 kB

78760 ProE17 April 2024, 10:08 / 312.96 kB

78760 SolidWorks17 April 2024, 10:08 / 921.53 kB

78760 Step17 April 2024, 10:08 / 57.90 kB
