Chamfering Tools
for drill attachment

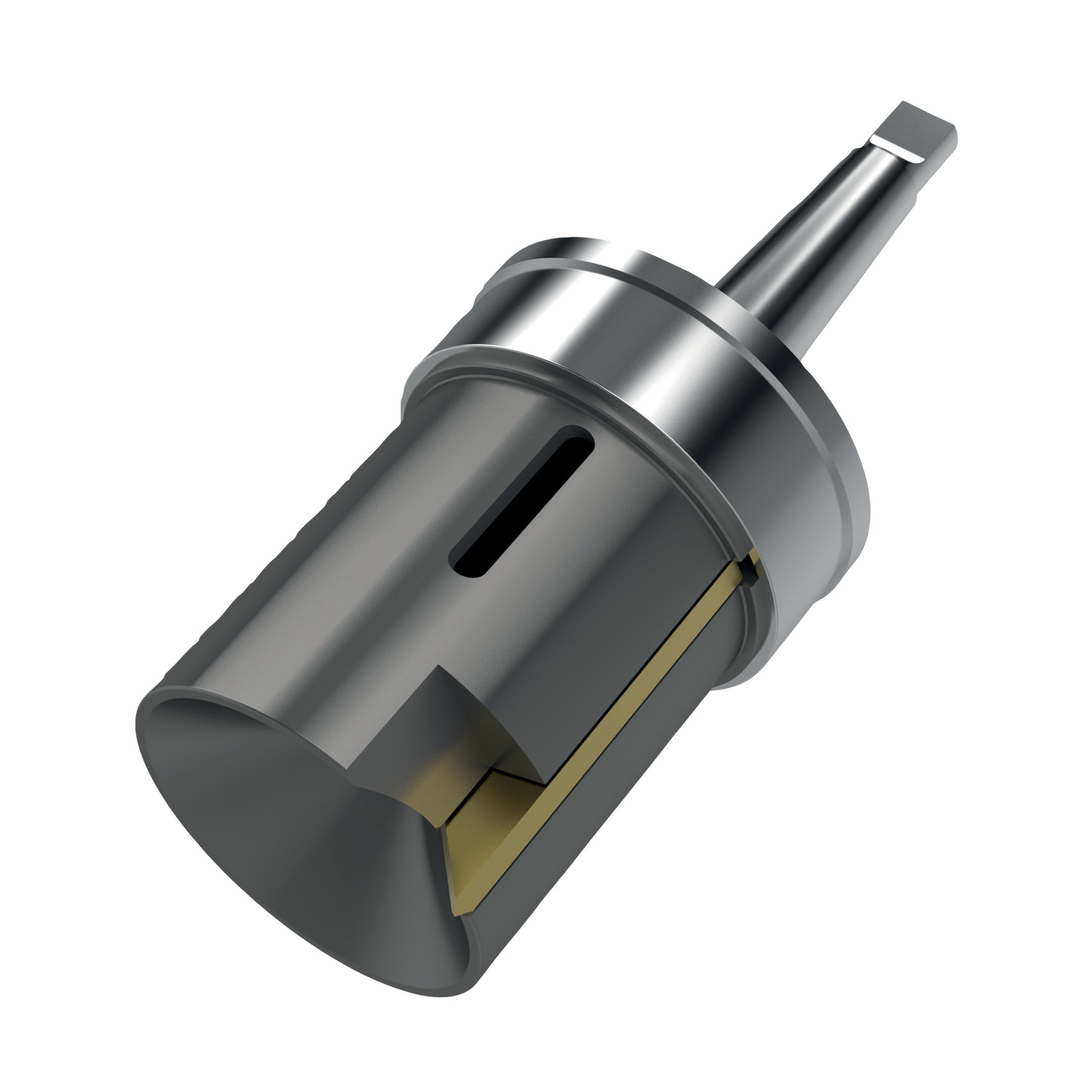

91020 Outer Chamfering Tools
for drill attachment, material: Steel
Order No.
91020.W1860-1
Pilot cone type
Standard
Chamfer dia.
min.|max.
4-17
Inc. chamfer angle
°
60°
Attachment spindle
Ø10

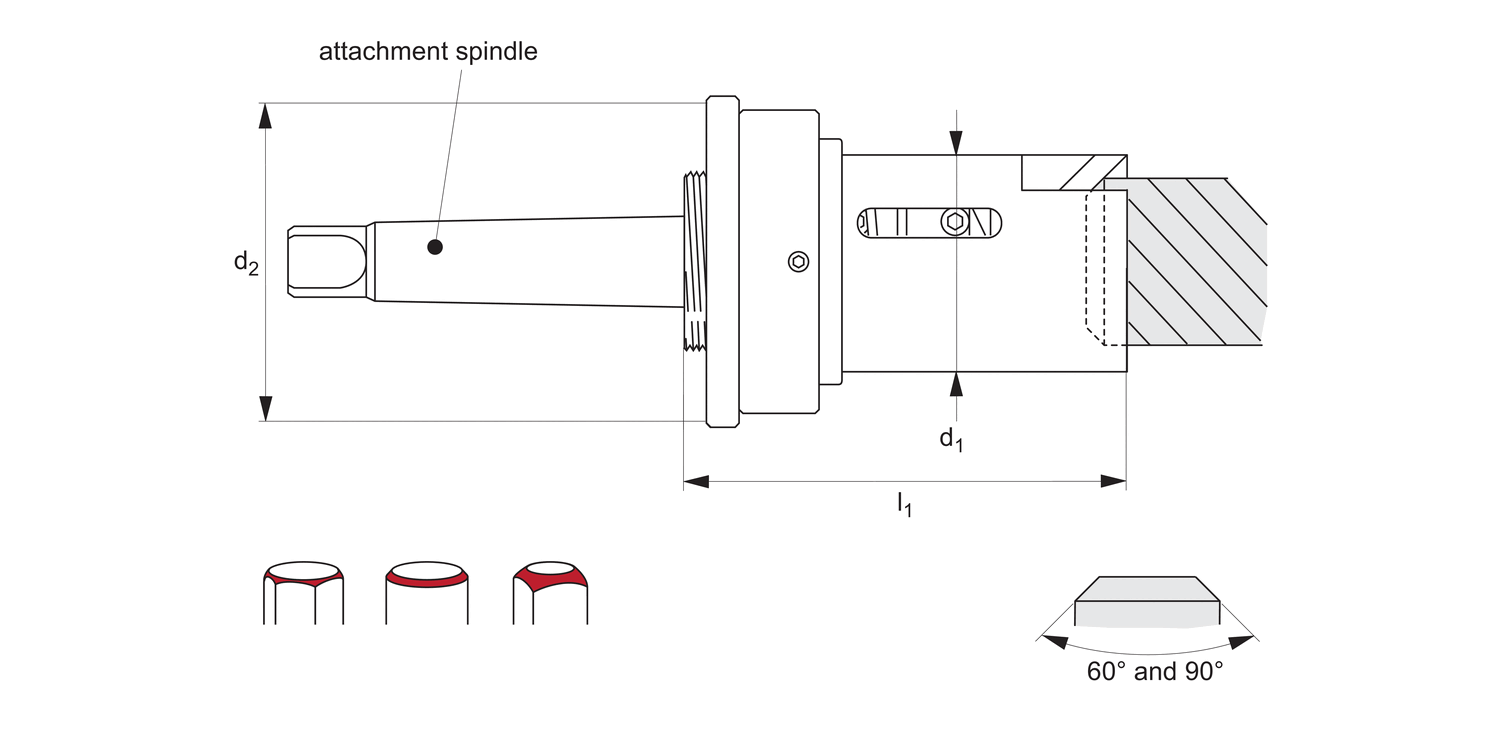

d1
18
d2
26
l1
54
£ 264.75 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 264.75 | 0% |
| 5-9 | £ 251.51 | 5% |
| 10-19 | £ 238.28 | 10% |
| 20-49 | £ 225.04 | 15% |
| 50+ | £ 198.56 | 25% |
Technical & Application
Material
Standard pilot cone type:
Supplied with standard HSS blade of 14.cutting angle.
CRN pilot cone type:
Supplied with HSS TIN coated blade of 20.cutting angle.
Technical Notes
Consists of four main elements:
1. Body and drill attachment spindle.
2. Pilot cone - unique to the desired chamfer, provides full support during cutting and ensures concentric chamfer.
3. Blades - 1 x HSS blade at 14.cutting angle supplied.
4. Blades adjusted lock nut.
The CRN pilot cone type version gives better results for harder material and larger batches as these have a higher hardness rating and lower friction characteristics.
Used to achieve high quality concentric chamfering quickly and easily, without risk of damage/cutting into the workpiece. The specially designed pilot cone provides full support to the blade throughout cutting and ensures a concentric chamfer.
Available with attachment spindles to suit most pillar drills, CNCs or hand drills.
Chamfer angle quoted is inclusive angle.
Tips
Recommended cutting speed= 10 - 20 m/min.
To extend the life of the blade and the pilot cone we recommend lubrication with cutting fluid or soluble oil.
On initial set-up, make minor height adjustment of pilot cone via the blade adjustment lock nut, to ensure the best possible positioning.
Important Notes
For replacement blades see part no. 91022.
