Chamfering Tools
for drill attachment
91020 Outer Chamfering Tools
for drill attachment, material: Steel
Alternative products you may wish to consider
Pilot cone type
Standard
Chamfer dia.
min.|max.
4-17
Inc. chamfer angle
°
60°
Attachment spindle
Ø10
d1
18
d2
26
l1
54
£ 264.75 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
4-17
Inc. chamfer angle
°
90°
Attachment spindle
Ø10
d1
18
d2
26
l1
54
£ 264.75 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
4-37
Inc. chamfer angle
°
60°
Attachment spindle
Ø10/Ø16
d1
42
d2
65
l1
105
£ 613.09 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
4-37
Inc. chamfer angle
°
90°
Attachment spindle
Ø10/Ø16
d1
42
d2
65
l1
85
£ 610.52 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
4-37
Inc. chamfer angle
°
60°
Attachment spindle
CM2
d1
42
d2
65
l1
105
£ 640.68 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
4-37
Inc. chamfer angle
°
90°
Attachment spindle
CM2
d1
42
d2
65
l1
85
£ 610.52 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
10-45
Inc. chamfer angle
°
60°
Attachment spindle
CM2
d1
48
d2
65
l1
109
£ 625.42 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
10-45
Inc. chamfer angle
°
90°
Attachment spindle
CM2
d1
48
d2
65
l1
85
£ 617.85 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
21-57
Inc. chamfer angle
°
60°
Attachment spindle
CM2
d1
60
d2
70
l1
109
£ 814.70 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
21-57
Inc. chamfer angle
°
90°
Attachment spindle
CM2
d1
60
d2
70
l1
85
£ 774.62 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
41-77
Inc. chamfer angle
°
60°
Attachment spindle
CM2
d1
80
d2
90
l1
118
£ 919.56 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
41-77
Inc. chamfer angle
°
90°
Attachment spindle
CM2
d1
80
d2
90
l1
95
£ 914.54 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
60-97
Inc. chamfer angle
°
90°
Attachment spindle
CM3
d1
100
d2
110
l1
107
£ 1,214.03 per unit (click for quantity discounts)
Pilot cone type
Standard
Chamfer dia.
min.|max.
80-117
Inc. chamfer angle
°
90°
Attachment spindle
CM3
d1
120
d2
130
l1
110
£ 94.16 per unit (click for quantity discounts)
Pilot cone type
CRN
Chamfer dia.
min.|max.
4-17
Inc. chamfer angle
°
60°
Attachment spindle
Ø10
d1
18
d2
26
l1
54
£ 396.90 per unit (click for quantity discounts)
Pilot cone type
CRN
Chamfer dia.
min.|max.
4-17
Inc. chamfer angle
°
90°
Attachment spindle
Ø10
d1
18
d2
26
l1
54
£ 396.90 per unit (click for quantity discounts)
Pilot cone type
CRN
Chamfer dia.
min.|max.
4-37
Inc. chamfer angle
°
60°
Attachment spindle
Ø10/Ø16
d1
42
d2
65
l1
105
£ 853.27 per unit (click for quantity discounts)
Pilot cone type
CRN
Chamfer dia.
min.|max.
4-37
Inc. chamfer angle
°
90°
Attachment spindle
Ø10/Ø16
d1
42
d2
65
l1
85
£ 853.27 per unit (click for quantity discounts)
Pilot cone type
CRN
Chamfer dia.
min.|max.
4-37
Inc. chamfer angle
°
60°
Attachment spindle
CM2
d1
42
d2
65
l1
105
£ 853.27 per unit (click for quantity discounts)
Pilot cone type
CRN
Chamfer dia.
min.|max.
4-37
Inc. chamfer angle
°
90°
Attachment spindle
CM2
d1
42
d2
65
l1
85
£ 853.27 per unit (click for quantity discounts)
Pilot cone type
Chamfer dia.
min.|max.
Inc. chamfer angle
°
Attachment spindle
d1
d2
l1
| Price & Availability | Article | Pilot cone type | Chamfer dia. min.|max. | Inc. chamfer angle ° | Attachment spindle | d1 | d2 | l1 | ||||||||||||||||||
| 91020.W1860-1 | Standard | 4-17 | 60° | Ø10 | 18 | 26 | 54 | |||||||||||||||||||
£ 264.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 4-17 Inc. chamfer angle
° 60° Attachment spindle Ø10 d1 18 d2 26 l1 54 | ||||||||||||||||||||||||||
| 91020.W1890-1 | Standard | 4-17 | 90° | Ø10 | 18 | 26 | 54 | |||||||||||||||||||
£ 264.75 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 4-17 Inc. chamfer angle
° 90° Attachment spindle Ø10 d1 18 d2 26 l1 54 | ||||||||||||||||||||||||||
| 91020.W3660-1 | Standard | 4-37 | 60° | Ø10/Ø16 | 42 | 65 | 105 | |||||||||||||||||||
£ 613.09 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 4-37 Inc. chamfer angle
° 60° Attachment spindle Ø10/Ø16 d1 42 d2 65 l1 105 | ||||||||||||||||||||||||||
| 91020.W3690-1 | Standard | 4-37 | 90° | Ø10/Ø16 | 42 | 65 | 85 | |||||||||||||||||||
£ 610.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 4-37 Inc. chamfer angle
° 90° Attachment spindle Ø10/Ø16 d1 42 d2 65 l1 85 | ||||||||||||||||||||||||||
| 91020.W3660-2 | Standard | 4-37 | 60° | CM2 | 42 | 65 | 105 | |||||||||||||||||||
£ 640.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 4-37 Inc. chamfer angle
° 60° Attachment spindle CM2 d1 42 d2 65 l1 105 | ||||||||||||||||||||||||||
| 91020.W3690-2 | Standard | 4-37 | 90° | CM2 | 42 | 65 | 85 | |||||||||||||||||||
£ 610.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 4-37 Inc. chamfer angle
° 90° Attachment spindle CM2 d1 42 d2 65 l1 85 | ||||||||||||||||||||||||||
| 91020.W4660-2 | Standard | 10-45 | 60° | CM2 | 48 | 65 | 109 | |||||||||||||||||||
£ 625.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 10-45 Inc. chamfer angle
° 60° Attachment spindle CM2 d1 48 d2 65 l1 109 | ||||||||||||||||||||||||||
| 91020.W4690-2 | Standard | 10-45 | 90° | CM2 | 48 | 65 | 85 | |||||||||||||||||||
£ 617.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 10-45 Inc. chamfer angle
° 90° Attachment spindle CM2 d1 48 d2 65 l1 85 | ||||||||||||||||||||||||||
| 91020.W6060-2 | Standard | 21-57 | 60° | CM2 | 60 | 70 | 109 | |||||||||||||||||||
£ 814.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 21-57 Inc. chamfer angle
° 60° Attachment spindle CM2 d1 60 d2 70 l1 109 | ||||||||||||||||||||||||||
| 91020.W6090-2 | Standard | 21-57 | 90° | CM2 | 60 | 70 | 85 | |||||||||||||||||||
£ 774.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 21-57 Inc. chamfer angle
° 90° Attachment spindle CM2 d1 60 d2 70 l1 85 | ||||||||||||||||||||||||||
| 91020.W8060-2 | Standard | 41-77 | 60° | CM2 | 80 | 90 | 118 | |||||||||||||||||||
£ 919.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 41-77 Inc. chamfer angle
° 60° Attachment spindle CM2 d1 80 d2 90 l1 118 | ||||||||||||||||||||||||||
| 91020.W8090-2 | Standard | 41-77 | 90° | CM2 | 80 | 90 | 95 | |||||||||||||||||||
£ 914.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 41-77 Inc. chamfer angle
° 90° Attachment spindle CM2 d1 80 d2 90 l1 95 | ||||||||||||||||||||||||||
| 91020.W8190-3 | Standard | 60-97 | 90° | CM3 | 100 | 110 | 107 | |||||||||||||||||||
£ 1,214.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 60-97 Inc. chamfer angle
° 90° Attachment spindle CM3 d1 100 d2 110 l1 107 | ||||||||||||||||||||||||||
| 91020.W8290-3 | Standard | 80-117 | 90° | CM3 | 120 | 130 | 110 | |||||||||||||||||||
£ 94.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type Standard Chamfer dia.
min.|max. 80-117 Inc. chamfer angle
° 90° Attachment spindle CM3 d1 120 d2 130 l1 110 | ||||||||||||||||||||||||||
| 91020.W1860-19 | CRN | 4-17 | 60° | Ø10 | 18 | 26 | 54 | |||||||||||||||||||
£ 396.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type CRN Chamfer dia.
min.|max. 4-17 Inc. chamfer angle
° 60° Attachment spindle Ø10 d1 18 d2 26 l1 54 | ||||||||||||||||||||||||||
| 91020.W1890-19 | CRN | 4-17 | 90° | Ø10 | 18 | 26 | 54 | |||||||||||||||||||
£ 396.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type CRN Chamfer dia.
min.|max. 4-17 Inc. chamfer angle
° 90° Attachment spindle Ø10 d1 18 d2 26 l1 54 | ||||||||||||||||||||||||||
| 91020.W3660-19 | CRN | 4-37 | 60° | Ø10/Ø16 | 42 | 65 | 105 | |||||||||||||||||||
£ 853.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type CRN Chamfer dia.
min.|max. 4-37 Inc. chamfer angle
° 60° Attachment spindle Ø10/Ø16 d1 42 d2 65 l1 105 | ||||||||||||||||||||||||||
| 91020.W3690-19 | CRN | 4-37 | 90° | Ø10/Ø16 | 42 | 65 | 85 | |||||||||||||||||||
£ 853.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type CRN Chamfer dia.
min.|max. 4-37 Inc. chamfer angle
° 90° Attachment spindle Ø10/Ø16 d1 42 d2 65 l1 85 | ||||||||||||||||||||||||||
| 91020.W3660-29 | CRN | 4-37 | 60° | CM2 | 42 | 65 | 105 | |||||||||||||||||||
£ 853.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type CRN Chamfer dia.
min.|max. 4-37 Inc. chamfer angle
° 60° Attachment spindle CM2 d1 42 d2 65 l1 105 | ||||||||||||||||||||||||||
| 91020.W3690-29 | CRN | 4-37 | 90° | CM2 | 42 | 65 | 85 | |||||||||||||||||||
£ 853.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pilot cone type CRN Chamfer dia.
min.|max. 4-37 Inc. chamfer angle
° 90° Attachment spindle CM2 d1 42 d2 65 l1 85 | ||||||||||||||||||||||||||
Technical & Application
Material
Standard pilot cone type:
Supplied with standard HSS blade of 14.cutting angle.
CRN pilot cone type:
Supplied with HSS TIN coated blade of 20.cutting angle.
Technical Notes
Consists of four main elements:
1. Body and drill attachment spindle.
2. Pilot cone - unique to the desired chamfer, provides full support during cutting and ensures concentric chamfer.
3. Blades - 1 x HSS blade at 14.cutting angle supplied.
4. Blades adjusted lock nut.
The CRN pilot cone type version gives better results for harder material and larger batches as these have a higher hardness rating and lower friction characteristics.
Used to achieve high quality concentric chamfering quickly and easily, without risk of damage/cutting into the workpiece. The specially designed pilot cone provides full support to the blade throughout cutting and ensures a concentric chamfer.
Available with attachment spindles to suit most pillar drills, CNCs or hand drills.
Chamfer angle quoted is inclusive angle.
Tips
Recommended cutting speed= 10 - 20 m/min.
To extend the life of the blade and the pilot cone we recommend lubrication with cutting fluid or soluble oil.
On initial set-up, make minor height adjustment of pilot cone via the blade adjustment lock nut, to ensure the best possible positioning.
Important Notes
For replacement blades see part no. 91022.
Product Datasheets

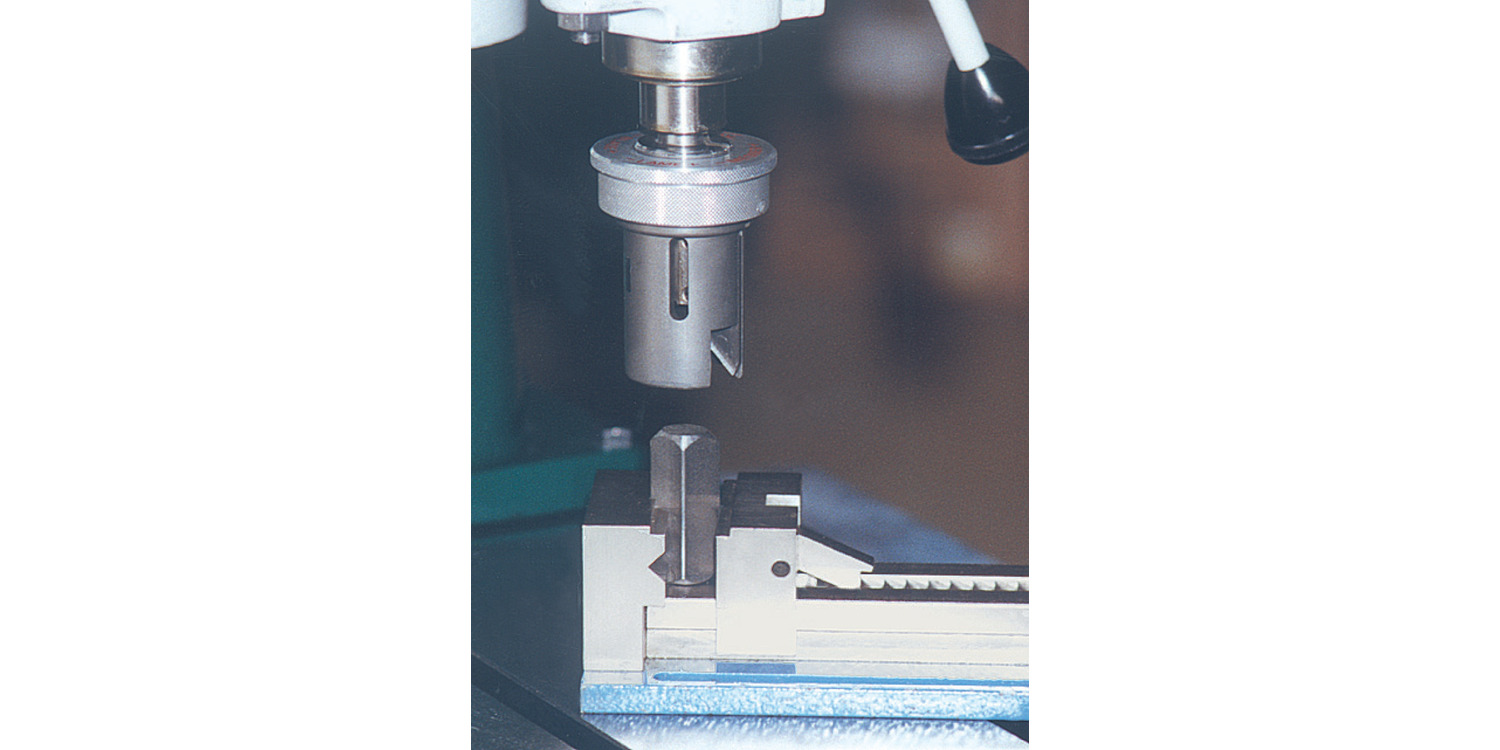

Application images
This content is not visible because of your cookie settings.
Wixroyd Group Ltd
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4497
sales@wixroyd.com
Route via Google Maps
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4497
sales@wixroyd.com
Route via Google Maps
Company registration no: 00496138
Company VAT number GB 408154022
