Cam Latch Flexi-System
fixed grip - wing handle

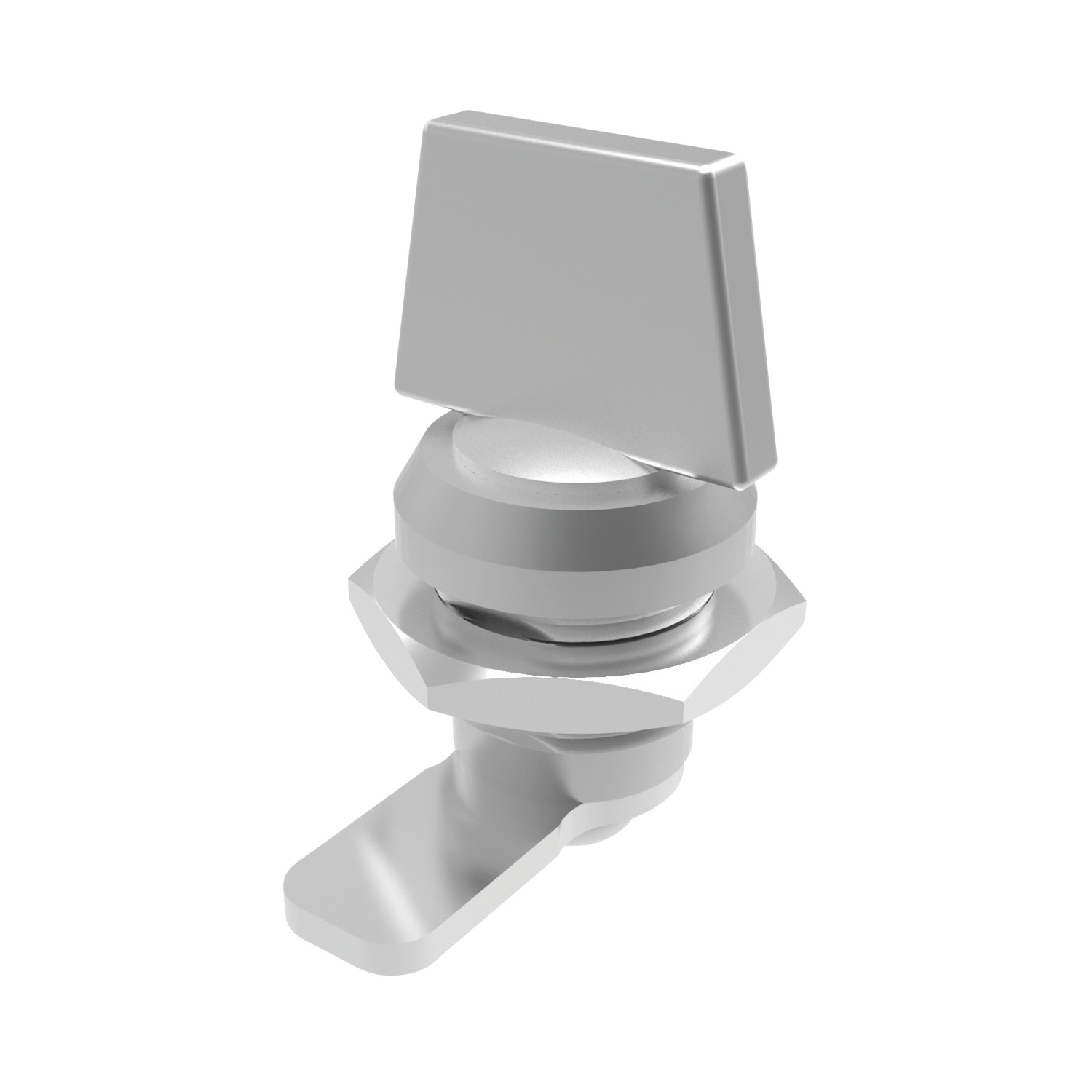

A1192 Mini Cam Latches - Wing Handle
fixed grip - zinc, material: Die cast zinc
Order No.
A1192.AW0175
Type
Clip Fixing

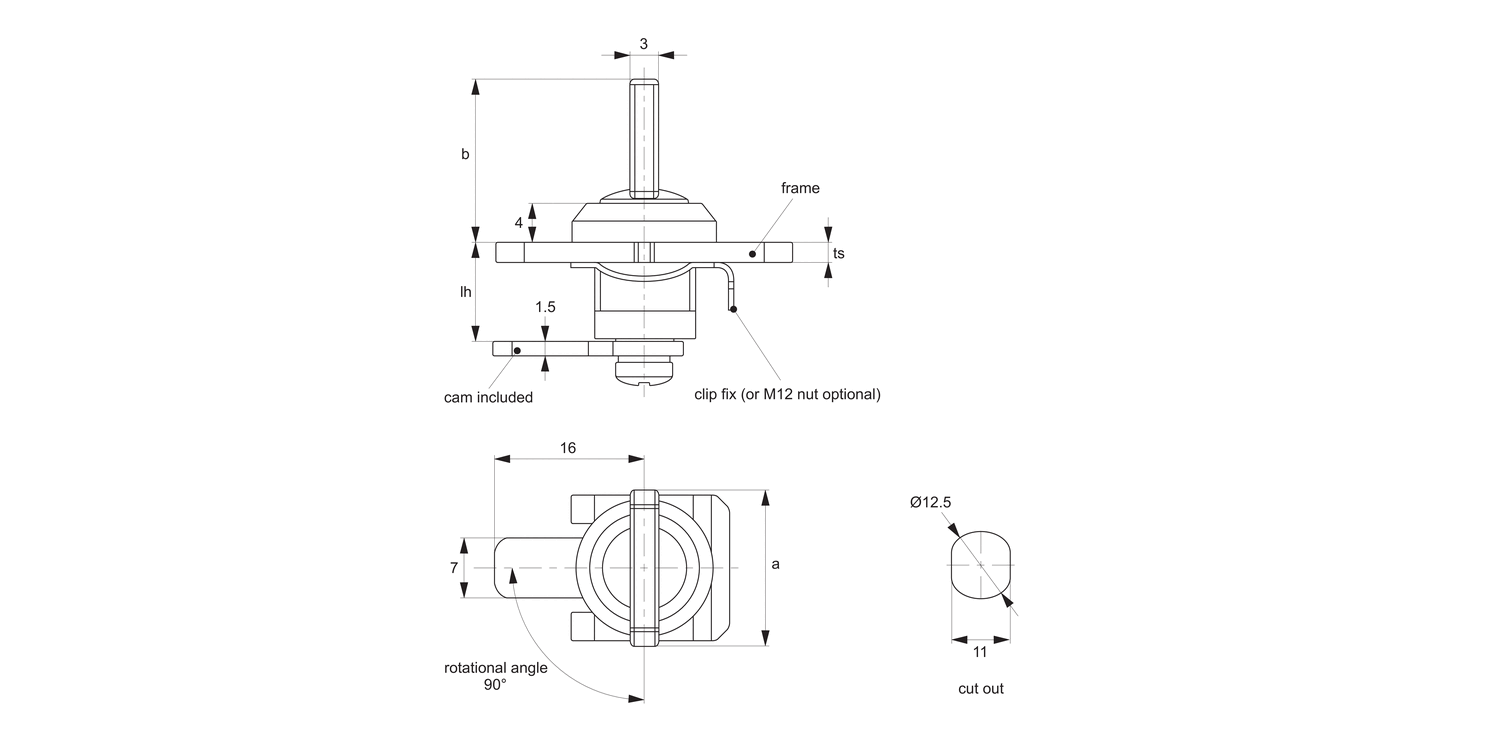

a
17.5
b
16.5
lh
10
ts
1-2mm
£ 2.14 per unit (click for quantity discounts)
Ready to despatch 11
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 2.14 | 0% |
| 20-49 | £ 1.93 | 10% |
| 50-99 | £ 1.82 | 15% |
| 100-499 | £ 1.61 | 25% |
| 500+ | £ 1.39 | 35% |
Technical & Application
Material
Body & Handle: die cast zinc, bright chrome plated.
Supplied with: Cam.
Technical Notes
Suitable for max. panel thickness 1-2mm. Can be fixed to panel either via spring clip fix, or M12 nut.
Tips
Quarter-turn opening or closing.
Wing actuates lock and also acts as knob/handle.
