B1281 Swing Handles - Cam Control

Name: B1281.AW0010
Brand: WC
SKU: B1281.AW0010
Price: 26.21 EUR
Availability: InStock

standard cylinder - polyamide, material: Polyamide

Article properties

Order No.

B1281.AW0010

Finish

Black, Plastic

Lock type

Std. Cylinder

Key type

Keyed Alike

l₁

160

w₁

See full product selection

£ 26.21 per unit (click for quantity discounts)

Ready to despatch 83
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 26.21	0%
20-49	£ 23.59	10%
50-99	£ 22.28	15%
100-499	£ 19.66	25%
500+	£ 17.04	35%

Download product datasheet

Technical & Application

Material

Body & Handle: polyamide PA6, black.
Cylinder lock: die cast zinc, chrome plated.
Supplied with: Keys: two per lock.
Not supplied: Cam: order separately.

Technical Notes

Order cam separately.
Cams: see suitable cam A0203, A0224 and A0240. Select "without projection" cam type.

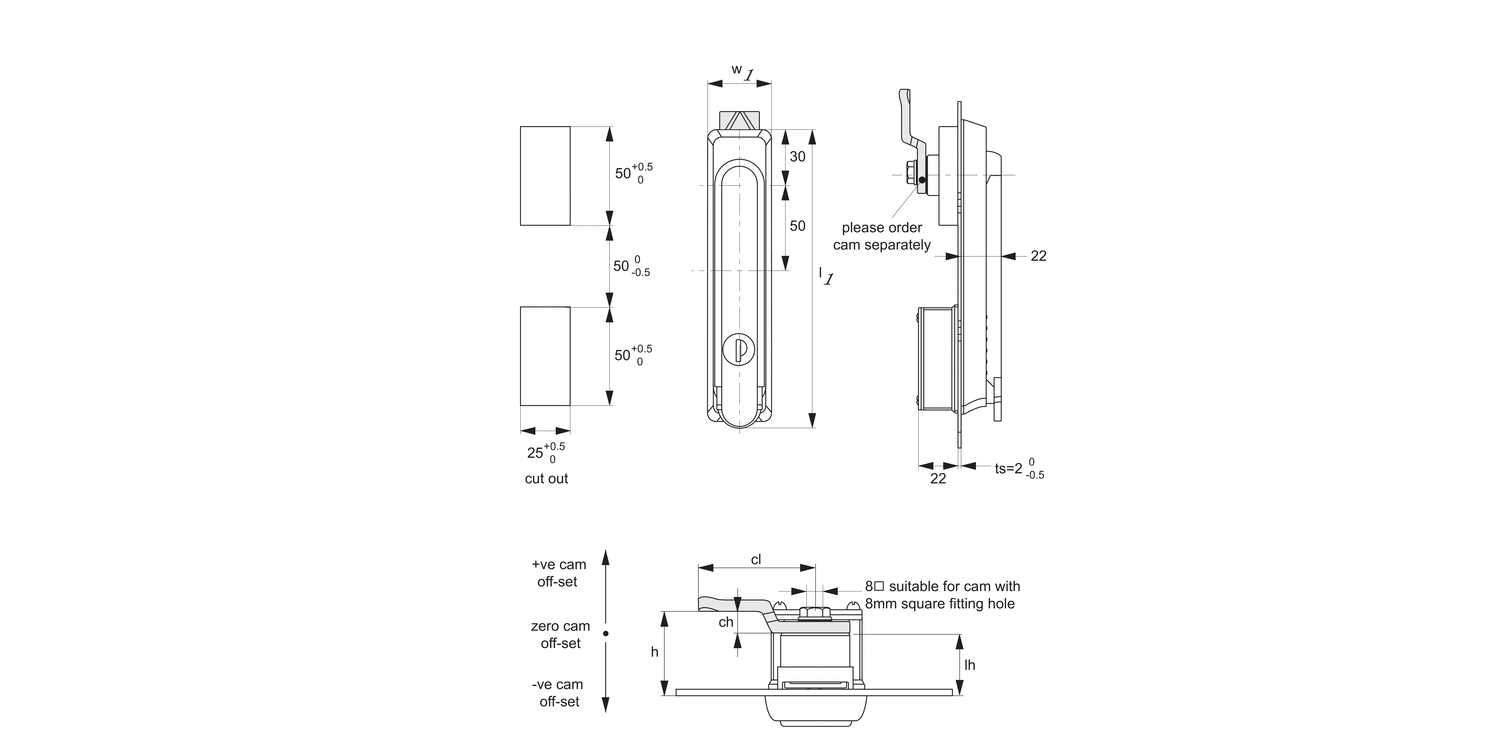

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - A0303, A0321, A0325.
