Functional Handle
electronic

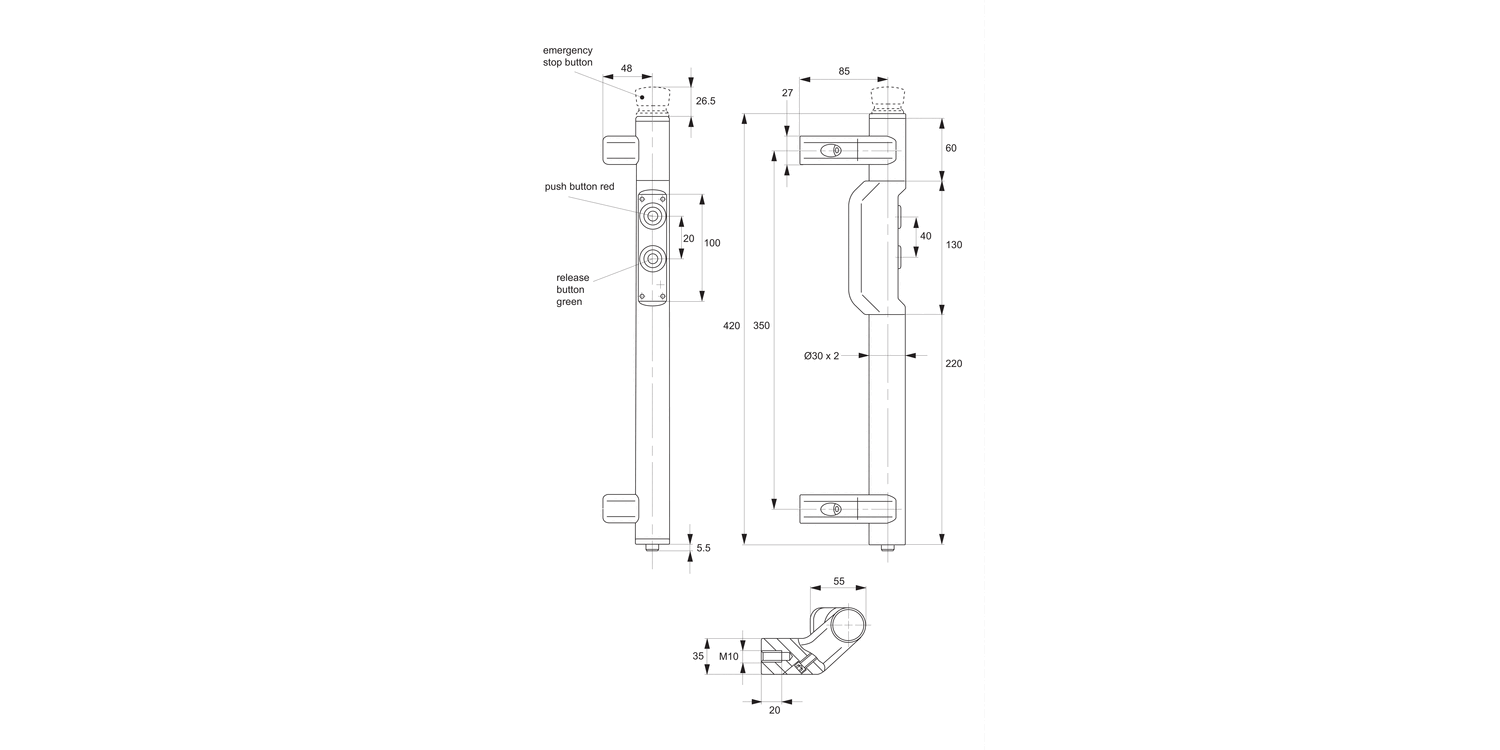

B8120 Functional Handle - Electronic
material: Aluminium/stainless steel
Order No.
B8120.AC0000
Type
Type One
Coupling Type
-
Switch function
No Switch - Blank, to Act as Counter Handle.
Hand
Right
£ 318.81 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 318.81 | 0% |
| 3-4 | £ 286.93 | 10% |
| 5-9 | £ 270.99 | 15% |
| 10-19 | £ 255.05 | 20% |
| 20+ | £ 239.11 | 25% |
Technical & Application
Material
Type one: Handle shank: aluminium, vibration ground natural colour anodized.
Handle tube: Ø35x2,0mm of stainless steel 1.4301.
Switch functions: none, blank handle.
Type two: Handle shank: aluminium, vibration ground natural colour anodized.
Handle tube: Ø35x2,0mm of stainless steel 1.4301.
Switch functions: 2 push buttons.
Type three: Handle shank: aluminium, vibration ground natural colour anodized.
Handle tube: Ø35x2,0mm of stainless steel 1.4301.
Switch functions: two push buttons, 1 emergency stop button.
Technical Notes
When used with connection cable no. B8880, conforms to IP65 rating.
Use with door solenoid lock no. B8900 for full electronic locking of machine guards and panels.
