Functional Handle
electronic
B8320 Functional Handle - Electronic
configurable controls, material: Aluminium/stainless steel
Order No.
B8320.AC0337

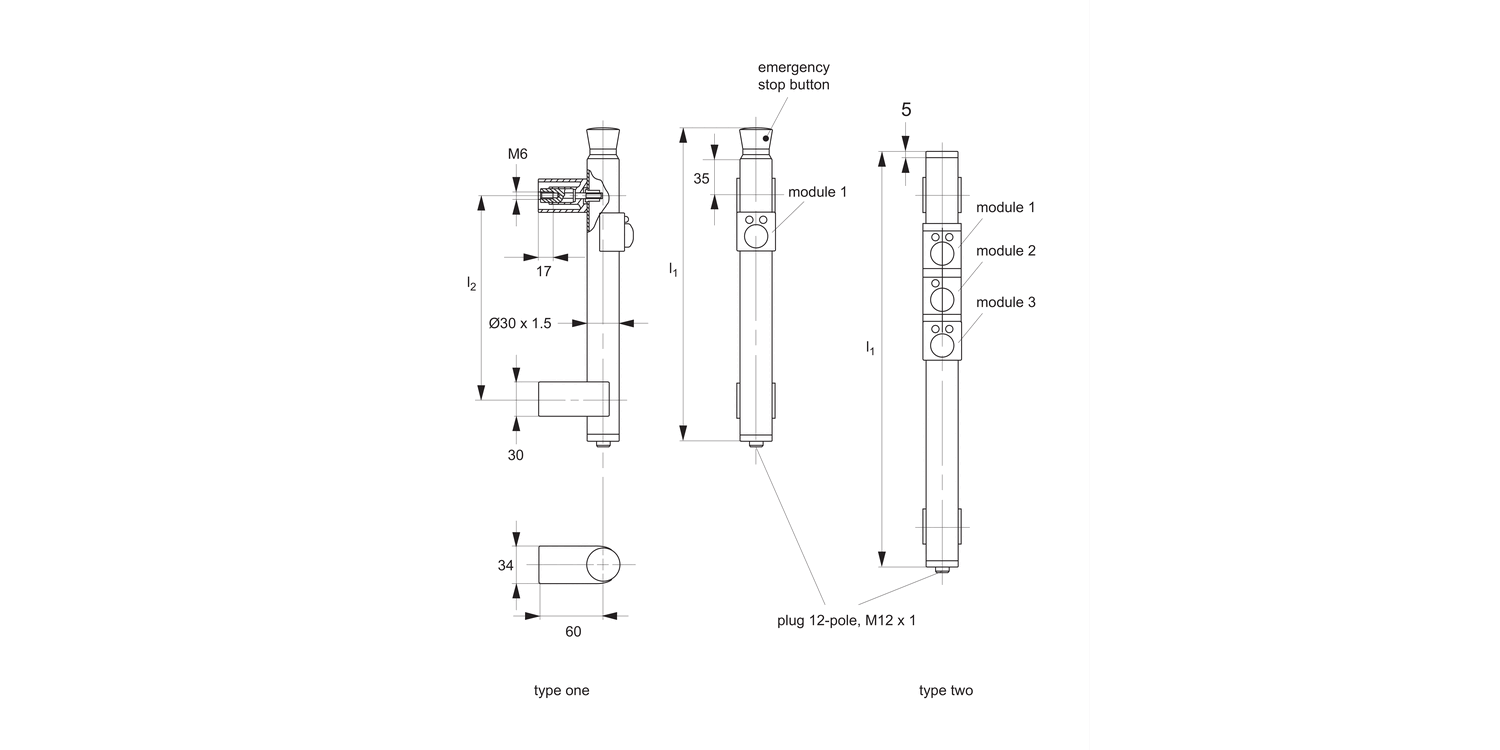

Lock type
Type One
Coupling Type
12-pole (M12x1)
Material
Stainless
l1
416
l2
300
£ 586.36 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 586.36 | 0% |
| 3-4 | £ 527.72 | 10% |
| 5-9 | £ 498.41 | 15% |
| 10-19 | £ 469.09 | 20% |
| 20+ | £ 439.77 | 25% |
Technical & Application
Material
Type one: Handle shank: extruded aluminium, AlMgSi 0,5, black anodized with matte gloss finish.
Handle tube: Ø30x1,5mm of aluminium AlMgSi 0,5, black anodised with matte gloss finish or from stainless steel 1.4301, precision ground.
Tube ends: reinforced polyamide PA 6, black.
Switch functions: 1 push button, 1 emergency stop button.
Type two: Handle shank: extruded aluminium, AlMgSi 0,5, black anodized with matte gloss finish.
Handle tube: Ø30x1,5mm of aluminium AIMgSi 0,5, black anodised with matte gloss finish or from stainless steel 1.4301, precision ground.
Tube ends: reinforced polyamide PA 6, black.
Switch Functions: 3 push buttons/modules.
Technical Notes
When used with connection cable no. B8880, conforms to IP65 rating.
Use with door solenoid lock no. B8900 for full electronic locking of machine guards and panels.
