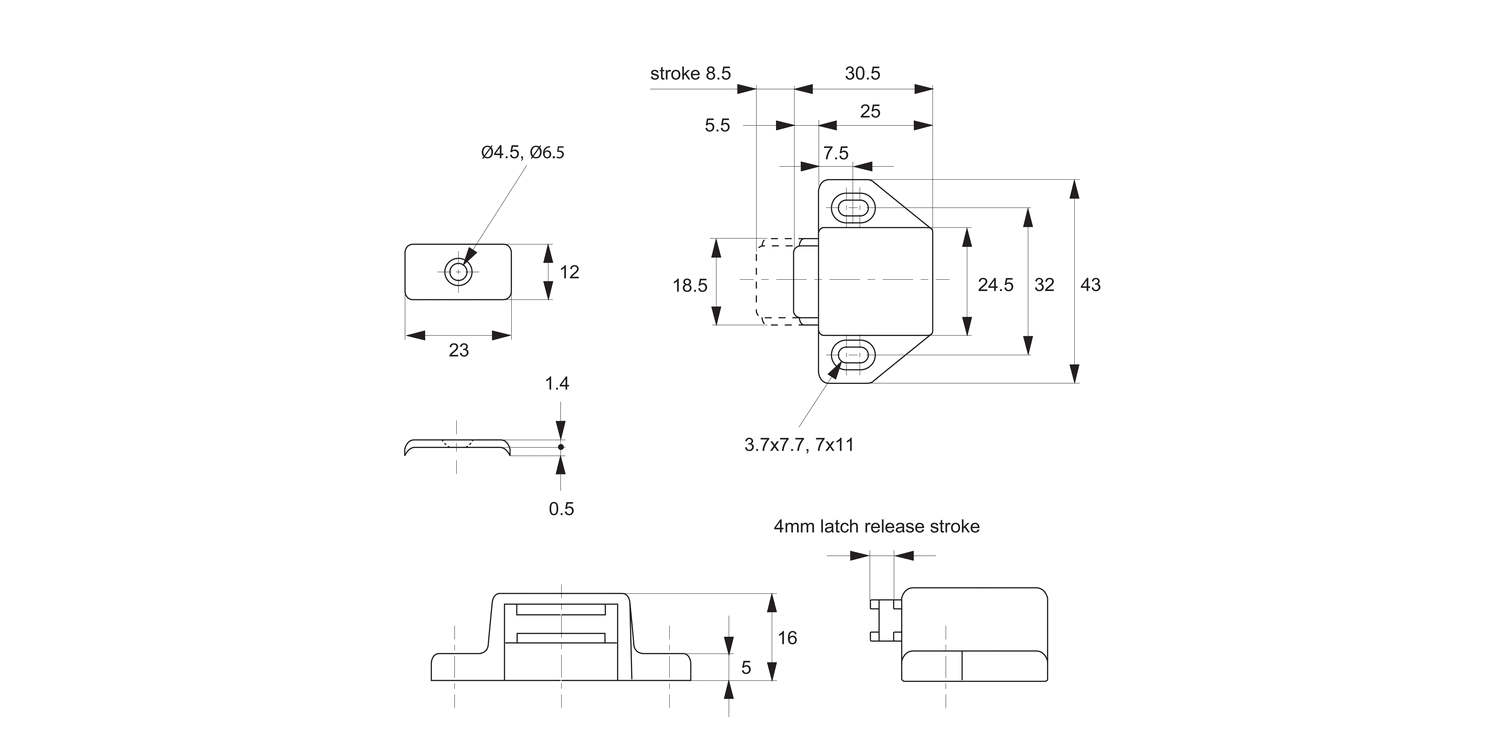

E5000 Magnetic Touch Latches

Name: E5000.AC0030
Brand: WC
SKU: E5000.AC0030
Price: 2.21 EUR
Availability: OutOfStock

Article properties

Order No.

E5000.AC0030

Finish

Brown

Magnetic force kgf

1.2

Weight g

22.5

£ 2.21 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Body: ABS plastic.
Latch and counter plate: steel, nickel plated.

For overlay doors a 4mm gap between the door and cabinet frame is required for the latch release stroke.
Supplied with screws (3.1x13).

E5000 Magnetic Touch LatchesJune 24, 2025, 3:38 PM / 205.11 kB

Magnetic Touch LatchesJune 24, 2025, 3:37 PM / 778.16 kB

Catches & LatchesJune 24, 2025, 3:31 PM / 3.04 MB

Catches & Draw LatchesJune 24, 2025, 3:32 PM / 5.19 MB

Access ComponentsJune 24, 2025, 3:32 PM / 32.33 MB

E5000 AcisApril 17, 2024, 10:16 AM / 75.96 kB

E5000 IGESApril 17, 2024, 10:16 AM / 178.47 kB

E5000 ParasolidApril 17, 2024, 10:16 AM / 88.61 kB

E5000 ProEApril 17, 2024, 10:16 AM / 240.36 kB

E5000 SolidWorksApril 17, 2024, 10:16 AM / 1.27 MB

E5000 StepApril 17, 2024, 10:16 AM / 93.35 kB
