Magnetic Touch Latches
overlay doors

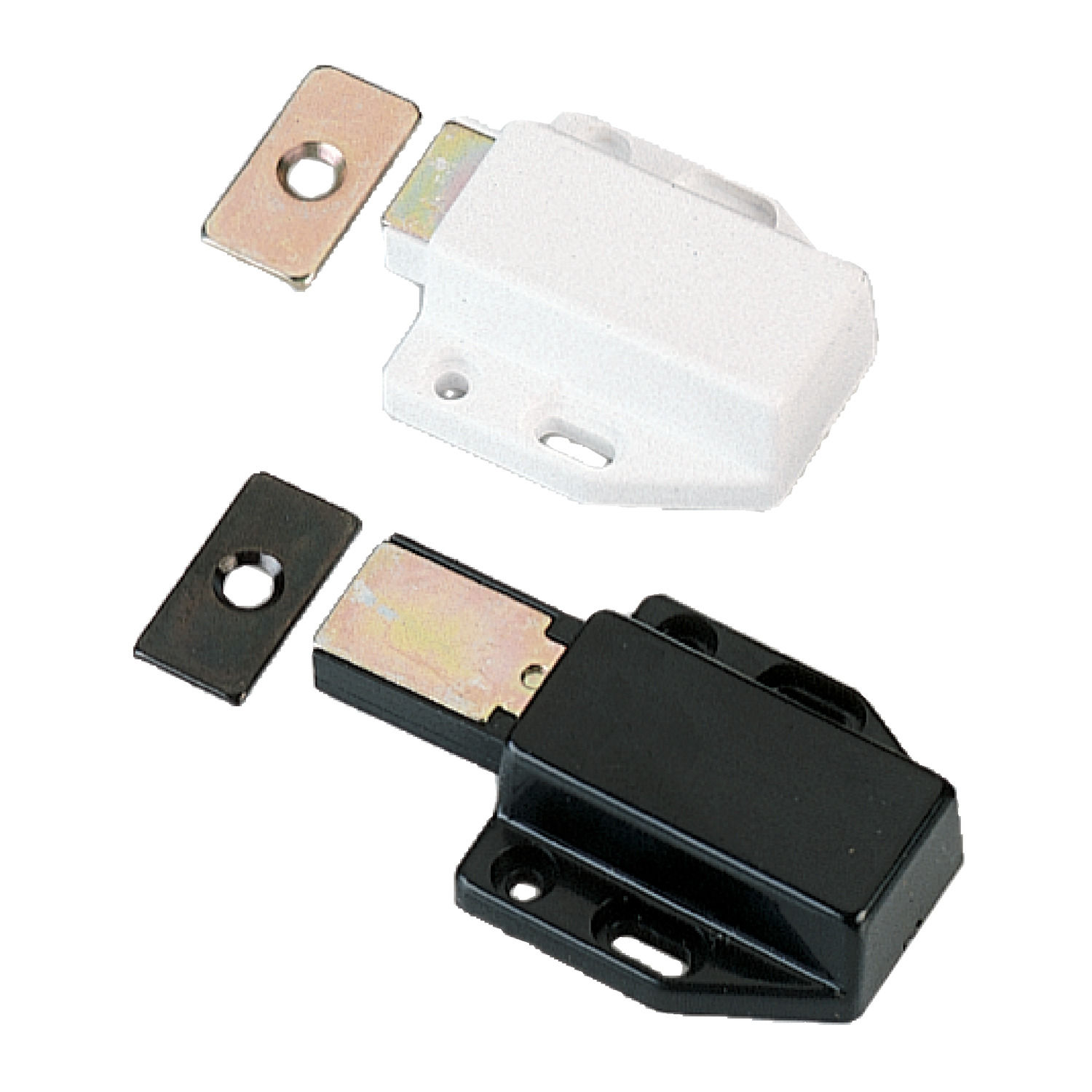

E5200 Magnetic Touch Latches
for overlay doors, material: Plastic
Order No.
E5200.AC0010
Finish
White
Magnetic force
kgf
1.6
Weight
g
22
£ 3.08 per unit (click for quantity discounts)
Ready to despatch 8
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 3.08 | 0% |
| 50-99 | £ 2.77 | 10% |
| 100-249 | £ 2.62 | 15% |
| 250-499 | £ 2.46 | 20% |
| 500+ | £ 2.31 | 25% |
Technical & Application
Material
Body: ABS plastic.
Latch and catch plate: steel, yellow zinc chromate.
Technical Notes
Push to open/close.

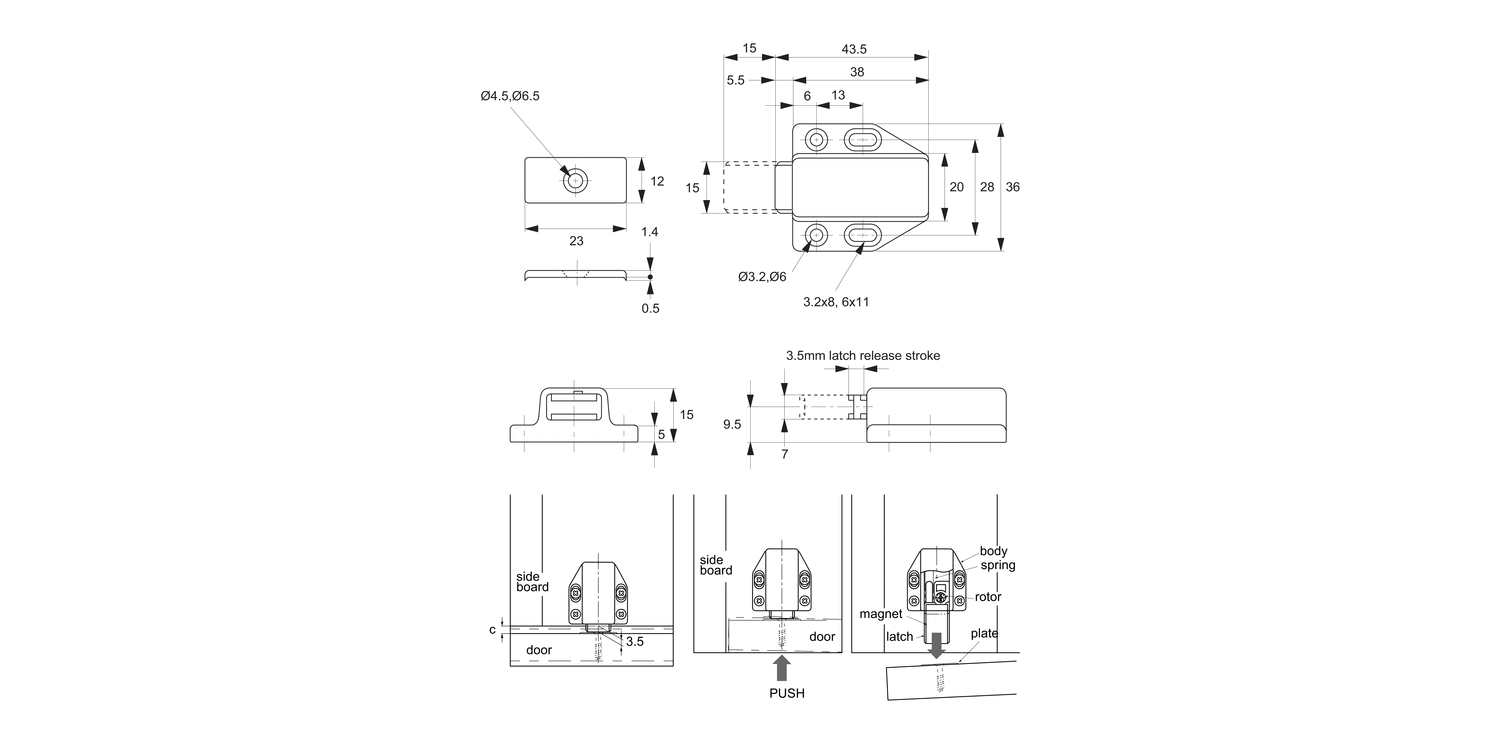

For overlay doors, a 3,5mm gap between door and cabinet frame is required for the latch release stroke.
Supplied with screws (2.7x13)
