EC602 Toggle Clamps - Vertical Acting

Name: EC602-3
Brand: WC
SKU: EC602-3
Price: 23.39 GBP
Availability: InStock

economy - vertical base - closed arm, material: Steel, zinc plated

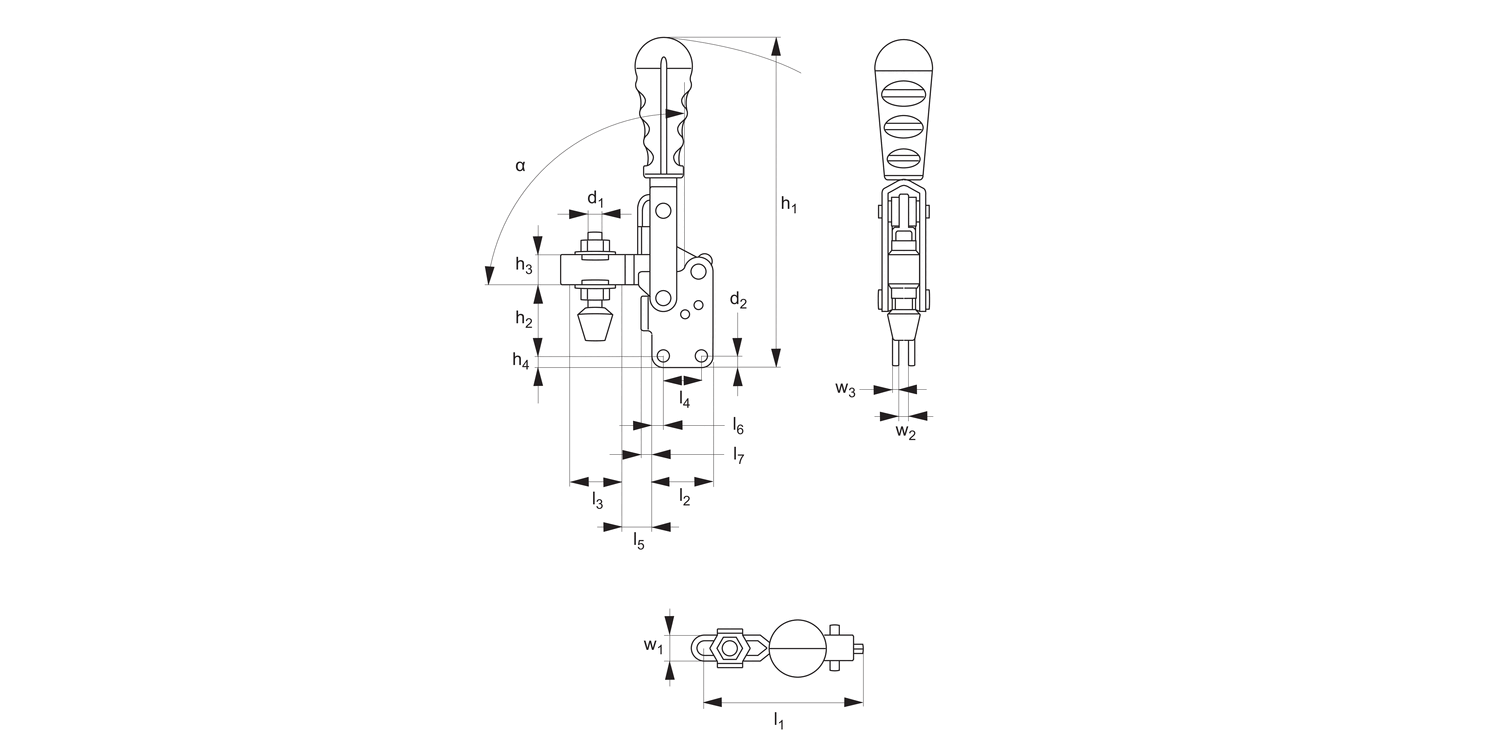

Article properties

Order No.

EC602-3

Size

Holding force kN

1.7

d₁

M 8

d₂

7.1

h₁

190

h₂

40.4

h₃

17.5

Weight g

380

h₄

7.5

l₁

90.2

l₂

l₃

29.2

l₄

19.0

l₅

18.8

l₆

l₇

5.5

w₁

8.9

w₂

w₃

α/α*

91°

See full product selection

£ 23.39 per unit (click for quantity discounts)

Ready to despatch 4
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 23.39	0%
5-9	£ 22.22	5%
10-19	£ 21.05	10%
20+	£ 19.88	15%

Download product datasheet

Technical & Application

Material

Body: steel, zinc plated.
Rivets: stainless steel.
Bushes: case hardened and greased.
Handle: plastic, red, oil resistant.
Supplied complete with clamping screw (with rubber pad).

Technical Notes

Opening angle (symbola/symbolsymbola/symbol*) can be changed by pressing in a stop pin on the clamp body.
