Draw Latches
s/s - spring loaded

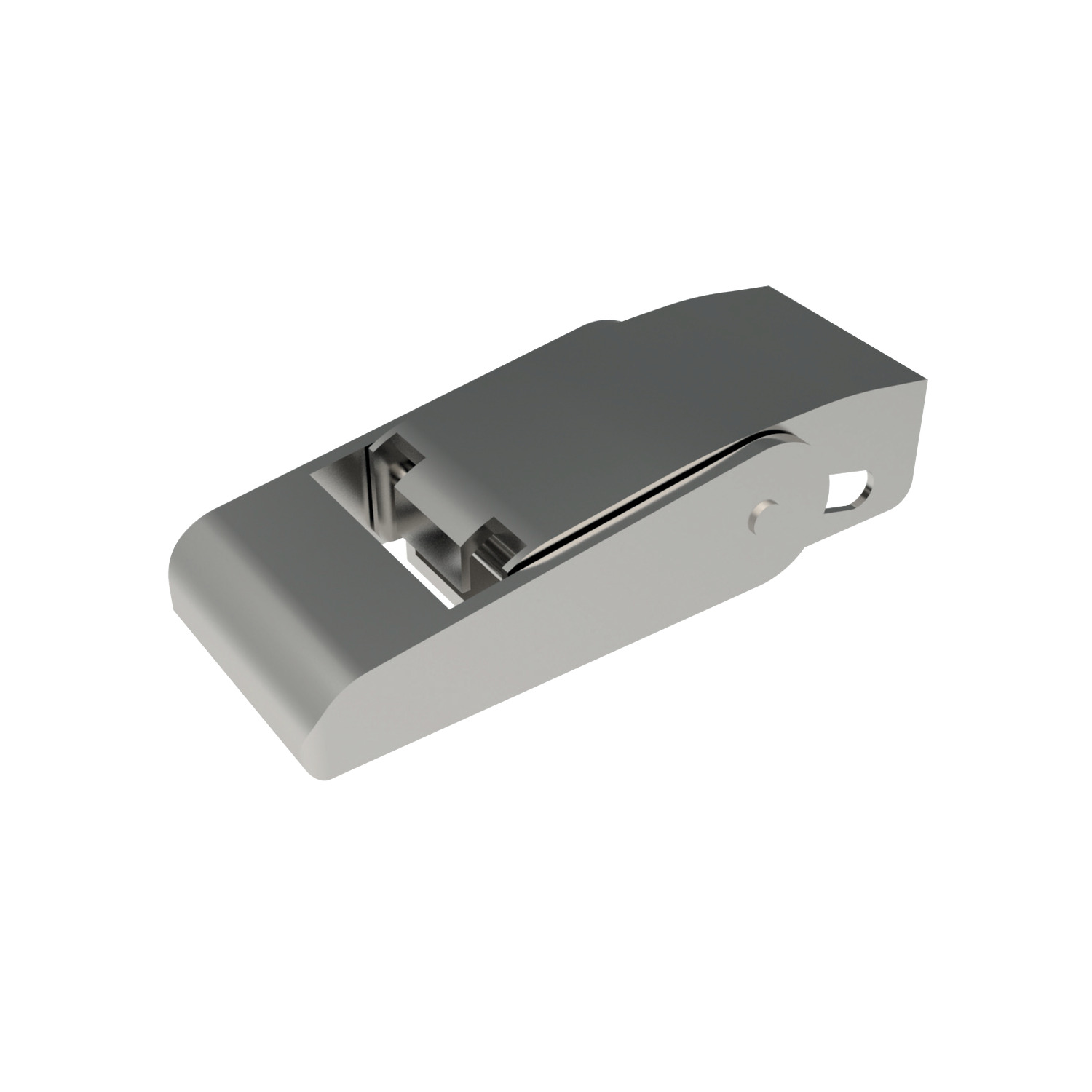

J0300 Draw Latches - Spring Loaded
stainless steel, material: Stainless steel
Order No.
J0300.AC0030
l1
80
h1
19.5
w1
33
Ø d1
4.3
Load capacity
kg
80
l2
36.5
l3
30
l4
13.5
l5
5
l6
17
l7
5
w2
32
w3
25
w4
±0.2
13
Weight
g
110
£ 41.84 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 41.84 | 0% |
| 10-19 | £ 37.66 | 10% |
| 20-49 | £ 35.56 | 15% |
| 50-99 | £ 33.47 | 20% |
| 100+ | £ 29.29 | 30% |
Technical & Application
Material
All parts from stainless steel, AISI 304, satin finish. Fixing screws not included.
Product Datasheets

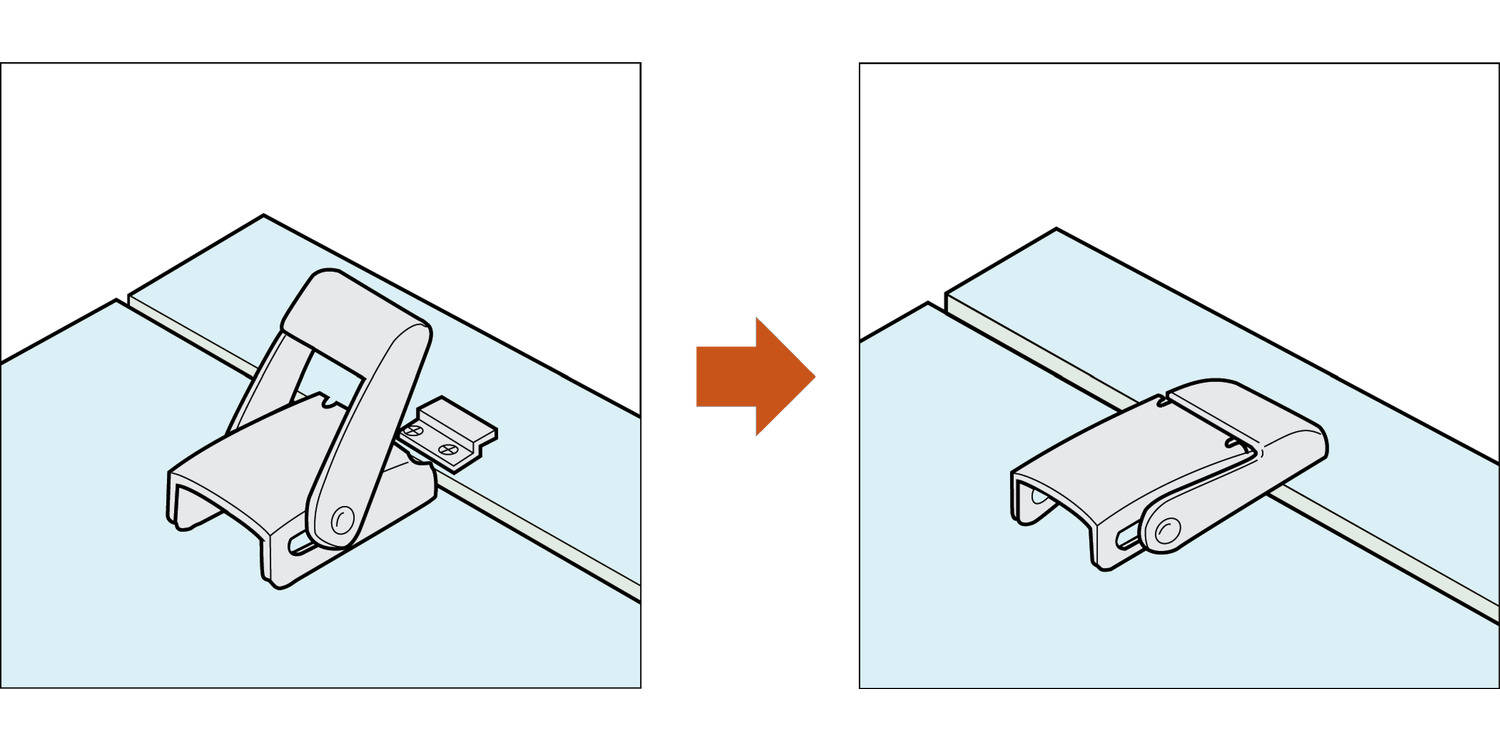

Application images
